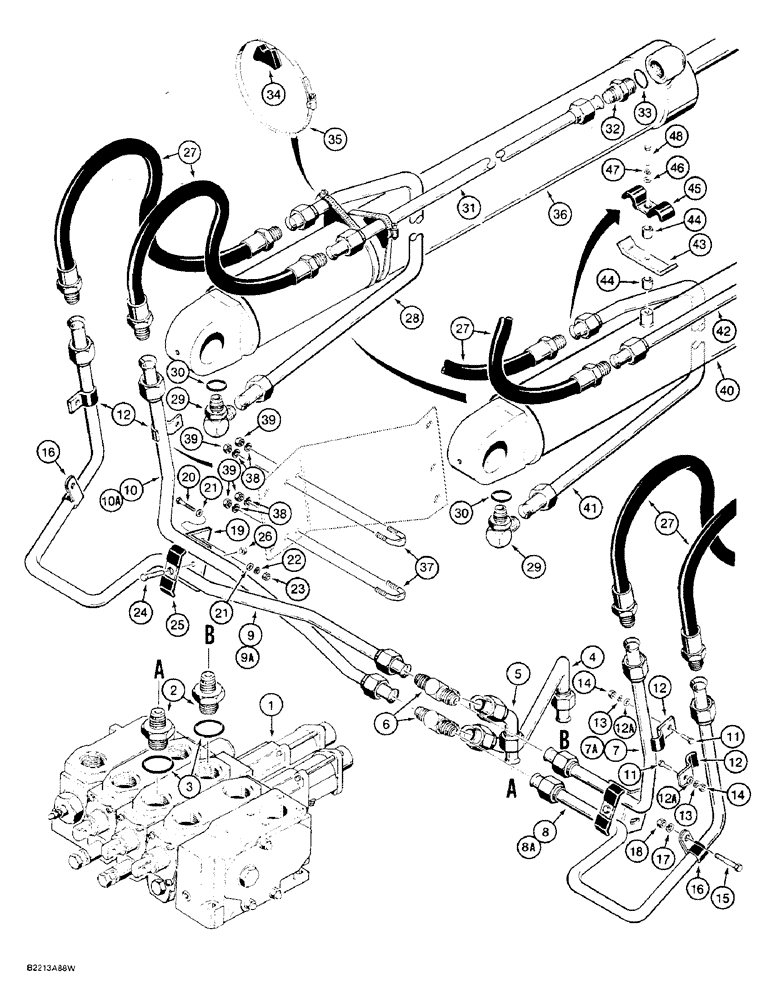

Запчасти Case W36 (8-396) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control see Figures 8-418 and 8-426 for correct valve and components

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Adapter

1шт.

4

L72129

TUBE,1" OD

- rod end of cylinder

1шт.

5

L72131

PIPE,1" OD x 6.07, 2.85" L

TUBE - head end of cylinder

1шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- bucket cylinders

2шт.

7

L73050

TUBE,1" OD x 17.64, 11.9" L

- right-hand, closed end, Serial Range: -9131129

1шт.

7a

L79829

TUBE,1" OD x 17.43, 11.01" L

- right-hand, closed end, Start Serial: 9131129

1шт.

8

L72874

TUBE ASSY.,1" OD

TUBE - right-hand, rod end, Serial Range: -9131129

1шт.

8a

L117945

TUBE ASSY.,25.4 mm OD

TUBE - right-hand, rod end, Start Serial: 9131129

1шт.

9

L73060

TUBE ASSY.,1" OD x 30.64, 19.69" L

TUBE - left-hand, closed end, Serial Range: -9131129

1шт.

9a

L79547

TUBE,1" OD

- left-hand, closed end, Start Serial: 9131129

1шт.

10

L73058

TUBE,1" OD

- left-hand, rod end, Serial Range: -9131129

1шт.

10a

L79549

TUBE ASSY.,1" OD x 19.71, 27.18" L

TUBE - left-hand, rod end, Start Serial: 9131129

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

12

A12308

CLAMP

- tube, Serial Range: -9131129

4шт.

12a

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

16

L73714

CLAMP

- P-type, tube, Serial Range: -9131129

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

19

L47468

BRACKET

- tube mounting

2шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

21

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-3/4"

2шт.

25

L102739

CLAMP

- tube

2шт.

26

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

27

L112987

HOSE

- 50" (1270 mm) long

1шт.

28

L73045

TUBE,1" OD x 20.43, 7.2" L

- bucket cylinder, head end, G100537 cylinder

2шт.

29

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 30

2шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Elbow

1шт.

31

L73041

TUBE,1" OD x 30.66" L

- bucket cylinder, rod end, G100537 cylinder

2шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 33

2шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Adapter

1шт.

34

L79937

SADDLE

CUSHION - rubber

4шт.

35

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - tube

4шт.

36

G100537

CYLINDER

- bucket, without tube clamp boss, parts list Fig. 8-412, if used

2шт.

37

L78947

U-BOLT

, Start Serial: 9131129

8шт.

38

92-5

LOCK WASHER,5/16"

16шт.

39

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

16шт.

40

G107281

CYLINDER

- bucket, has welded boss for tube clamp, if used, parts list Fig. 8-414

2шт.

41

L105695

TUBE,25.4 mm OD

- bucket to cylinder closed end, G107281 cylinder

2шт.

42

L105715

TUBE,25.4 mm OD x 778.9, 27.9 mm L

- bucket to cylinder rod end, G107281 cylinder

2шт.

43

L47503

BRACKET

- tube, if used

2шт.

44

D35217

BUSHING

SPACER - tube, if used

4шт.

45

L26312

CLAMP

- tube, if used

2шт.

46

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

47

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", if used

2шт.
