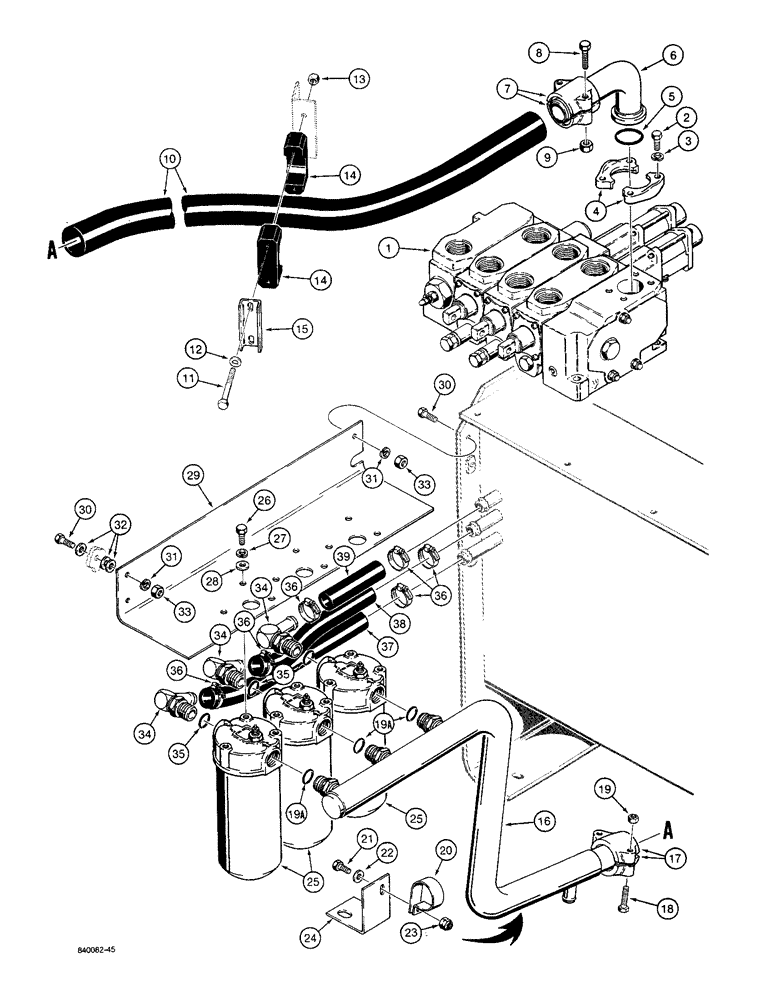

Запчасти Case W36 (8-392) - LOADER HYDRAULIC CIRCUIT, VALVE TO HYDRAULIC RESERVOIR - USED ON TRACTORS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control, see Figure 8-416 and 8-426 for correct valve

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

5

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

L104400

COUPLING

- return line, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - coupling

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - coupling

2шт.

8

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5

2шт.

9

131-177

LOCK NUT,3/8"-24, GA

NUT - hex, 3/8" - 24 NF

2шт.

10

L104801

HOSE,50.8 mm ID x 2184.40 mm, SAE 100R1 Type A

- return

1шт.

11

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2"

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

14

L116651

BLOCK

- hose clamp, set of two pieces

2шт.

15

L76698

ANGLE

BRACKET - hose clamp

2шт.

L115983

MANIFOLD

TUBE - manifold to filters, Includes: Ref. 16 - 19A

1шт.

16

NSS

NOT SOLD SEPARAT

TUBE - return

1шт.

17

NSS

NOT SOLD SEPARAT

CLAMP - hose

2шт.

18

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5

2шт.

19

131-177

LOCK NUT,3/8"-24, GA

NUT - hex, 3/8" - 24 NF

2шт.

19a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Tube

3шт.

20

A12383

CLAMP

- tube

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4"

1шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

23

131-642

SPRING NUT,Tinn, U, #10

- hex, self-locking, 3/8" - 16 NC

1шт.

24

L106574

BRACKET

- manifold mounting

1шт.

25

L114122

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-408

3шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4"

9шт.

27

92-6

LOCK WASHER,3/8"

9шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

9шт.

29

L106590

SUPPORT

BRACKT - hydraulic filter

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

34

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degrees, Includes: Ref. 35

3шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Elbow

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

6шт.

37

L48894

HOSE

- filter return, 1" (25 mm) ID x 17" (432 mm) long

1шт.

38

L107310

HOSE,1.00" ID x 12.00", SAE 100R3

- filter return, 1" (25 mm) ID x 12" (305 mm) long

1шт.

39

L107309

HOSE,1.00" ID x 6.00", SAE 100R3

- filter return, 1" (25 mm) ID x 6" (152 mm) long

1шт.
