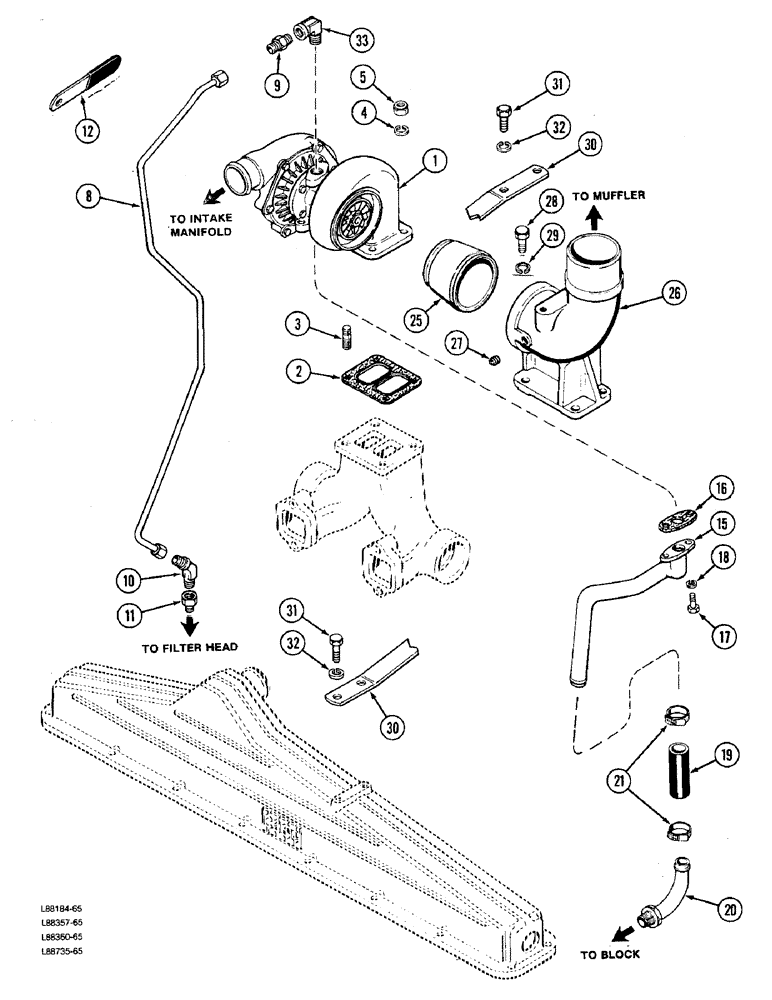

Запчасти Case W36 (2-22) - TURBOCHARGER SYSTEM, 504BDTI ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - new (Replaces A76341)

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, Use this part number to return turbocharger core for credit

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- turbocharger, 3/8 NC x 1-1/2 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - hex, Seez-Pruf, 3/8 inch NC

4шт.

8

A166064

TUBE

ASSEMBLY - oil supply

1шт.

9

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - oil supply tube to elbow

1шт.

10

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- oil supply tube to reducer (45 degrees)

1шт.

11

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- elbow to filter head, 3/8 inch PT to 1/4 inch PT

1шт.

12

A22883

CLIP

- oil supply tube

1шт.

15

A62518

TUBE

- oil drain

1шт.

16

A58892

GASKET,1.59mm Thk

- drain, Serial Range: tube-turbocharger

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Drain tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube to fitting

1шт.

20

A58897

FITTING

- drain hose to cylinder block

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

25

A65554

TUBE

CONNECTOR - exhaust, Serial Range: elbow-turbocharger

1шт.

26

A61941

ELBOW

- exhaust

1шт.

27

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch PT

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- elbow to manifold, hex, 3/8 NC x 1-1/4 inch

4шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

A150237

BRACE

- exhaust elbow

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Brace Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

32

492-11038

LOCK WASHER,3/8"

4шт.

33

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- turbocharger to connector (90 degrees)

1шт.
