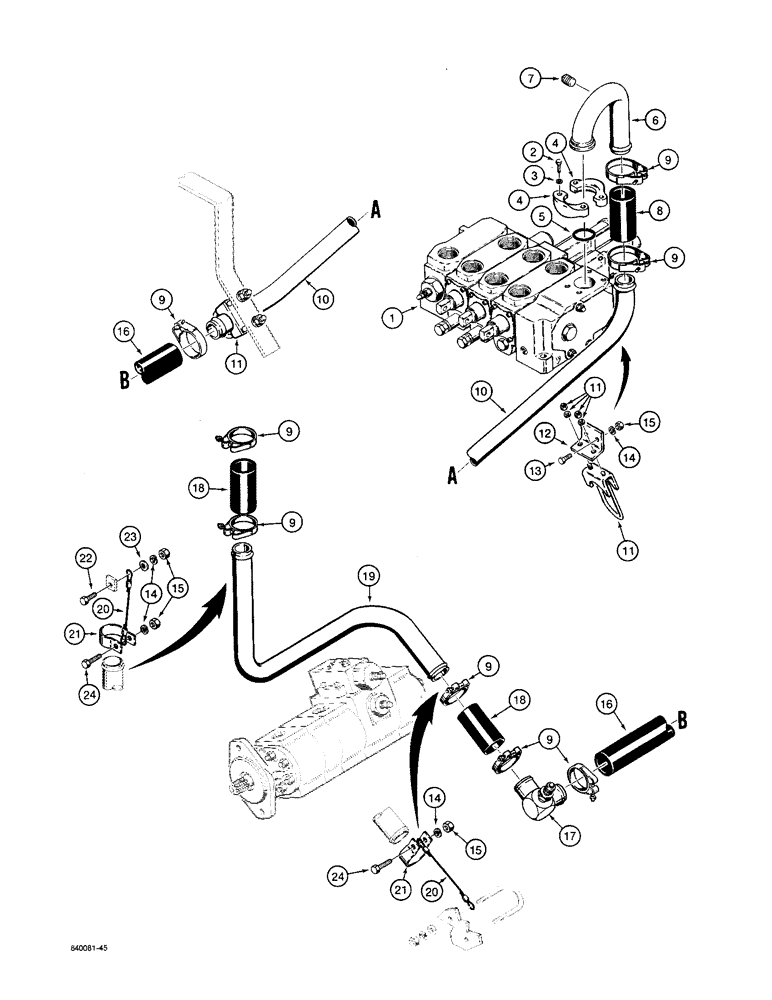

Запчасти Case W36 (8-390) - LOADER HYDRAULIC CIRCUIT, VALVE TO HYDRAULIC RESERVOIR. - USED ON TRACTORS WITH HYDRAULIC FILTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - see Figure 8-416 or 8-426 for correct assembly and components

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

5

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

6

L102610

TUBE,2" OD x 7.75, 4.05" L

- for service also order (1) 221-1014 pipe plug

1шт.

7

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

2шт.

8

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

1шт.

9

214-350

CLAMP,#48, 2.37"-2.68", T-Bolt

- hose, includes hardware

8шт.

10

L71921

TUBE,2" OD

- return

1шт.

11

L73301

CLAMP,51mm ID

ASSEMBLY - U-type, includes hardware

2шт.

12

L74821

BRACKET

- tube clamp

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

5шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

5шт.

16

L78059

HOSE

- 2" (51 mm) ID x 24-1/2" (622 mm) long

1шт.

17

L71977

TEE

- special

1шт.

18

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

2шт.

19

L71932

TUBE,2" OD

- return

1шт.

20

L78786

CABLE RETAINER

CABLE - clamp retainer

2шт.

21

F20911

CLAMP

- tube

2шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

23

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.
