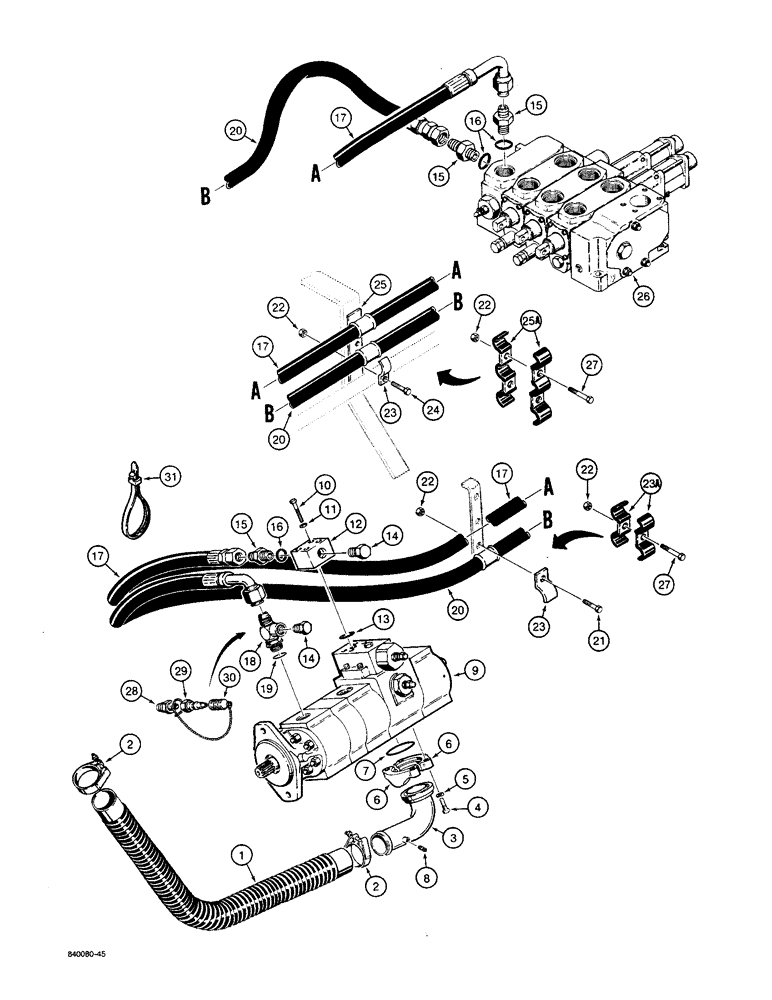

Запчасти Case W36 (8-388) - LOADER HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND VALVE (08) - HYDRAULICS

1

L112986

HOSE,2.50" ID x 28.00"

1шт.

2

214-376

CLAMP,#58, 2.68"-3.00", T-Bolt

- includes hardware

2шт.

3

L71762

TUBE,2.5" OD x 7.16, 3.82" L

- suction

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

L14386

CLAMP

SPLIT FLANGE - tube

2шт.

7

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- split flange

1шт.

8

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

1шт.

9

L72333

PUMP

- steering and loader, parts list Figs. 8-402 - 8-406

1шт.

10

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

4шт.

11

92-7

LOCK WASHER,7/16"

4шт.

12

L72248

BLOCK

- tee

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- block

1шт.

14

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

2шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 16

3шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Adapter

1шт.

17

L77259

HOSE

- pump to loader valve

1шт.

18

L53125

TEE

- special, Includes: Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Tee

1шт.

20

L100009

HOSE

- pump to loader valve

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used with A12298 clamp Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

22

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

3-4шт.

23

A12298

CLAMP

- used before P.I.N. 9139926 except SN 9139919

4шт.

23a

L103288

CLAMP

- used on P.I.N. 9139926 and after and on SN 9139919

2шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used with A12298 clamp

2шт.

25

L76756

SPACER

- used with A12298 clamp

1шт.

25a

L102862

CLAMP

- used on P.I.N. 9139926 and after and on SN 9139919

2шт.

26

REF

INSTRUCTION

VALVE - see page 8-416 or 8-426 for correct assembly and components

1шт.

27

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4", used with L102862 clamp, Ref. 25A, and L103288 clamp, Ref. 23A

3шт.

28

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight, if used

1шт.

29

S206607

DISC

COUPLING - if used

1шт.

30

S206608

CAP

COVER - dust, metal, if used

1шт.

30

D123387

DUST CAP

COVER - dust, plastic, service option, not shown

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
