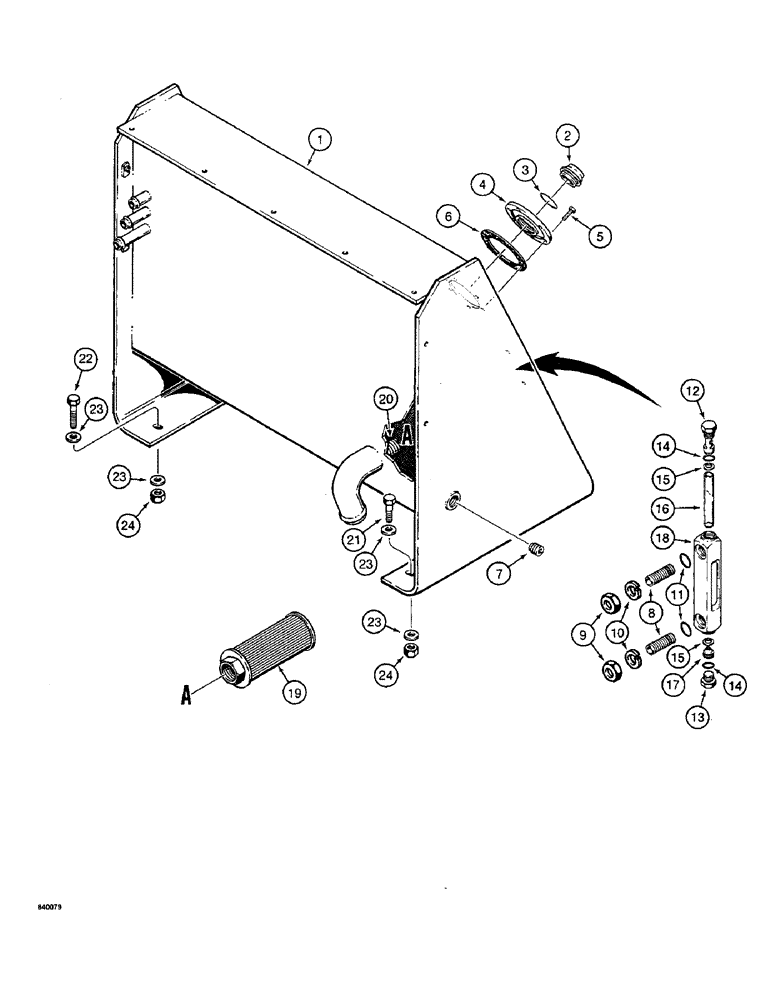

Запчасти Case W36 (8-386) - HYDRAULIC RESERVOIR WITH EXTERNAL FILTER (08) - HYDRAULICS

L115973

TANK

RESERVOIR - hydraulic, with external filter, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - hydraulic

1шт.

2

L10349

CAP - hydraulic tank

1шт.

3

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - cap

1шт.

4

D34977

CAP

COVER - hydraulic tank

1шт.

5

L107828

BOLT

- special

6шт.

6

D50547

GASKET,1.52mm Thk

- cover

1шт.

7

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

L70550

ELECTRICAL GAUGE

GAUGE - sight, Includes: Ref. 8 - 18

1шт.

8

D75821

STUD

- mounting

2шт.

9

131-402

NUT,PAL, 1/2"-20

NUT - hex, 1/2" - 20 NF

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- stud seal

2шт.

12

NSS

NOT SOLD SEPARAT

CAP - top

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - bottom

1шт.

14

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cap

2шт.

15

D75819

GASKET

- lens

2шт.

16

D75845

SIGHTGLASS

LENS - sight gauge

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT - seal

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - gauge

1шт.

19

L104990

FILTER SCREEN

SCREEN - suction

1шт.

20

221-305

SUN VISOR,Nipple, 2" NPT x 2"

NIPPLE - 2" NPT

1шт.

21

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5шт.

22

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

23

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

24

25-1010

NUT,5/8"-11, G5

6шт.
