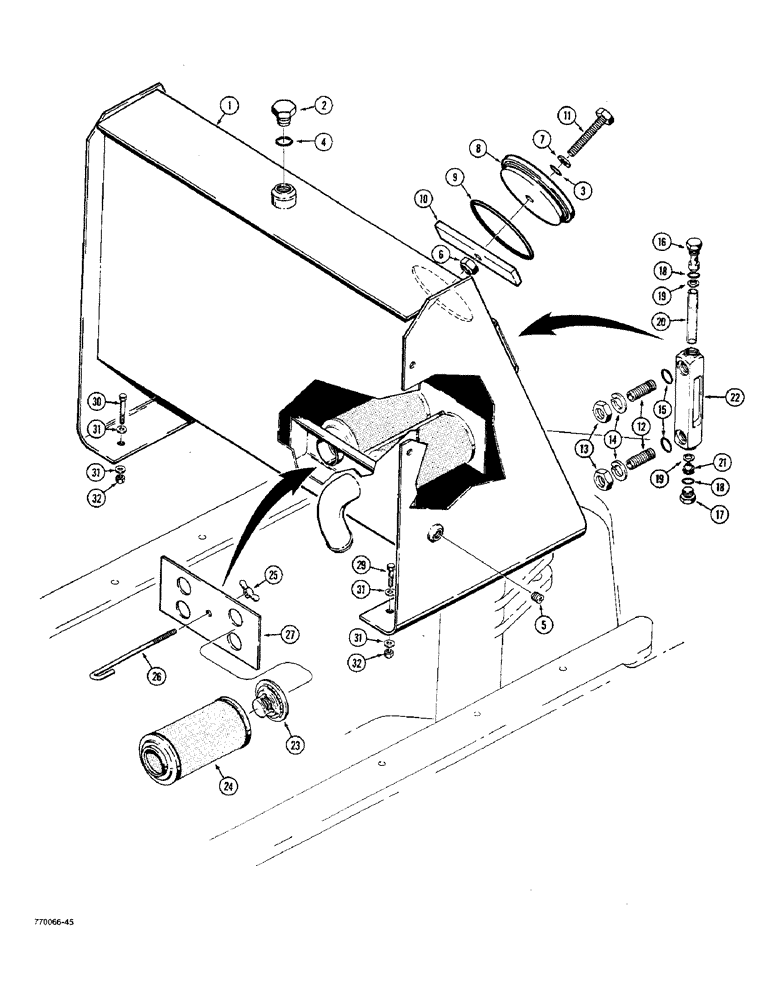

Запчасти Case W36 (8-384) - HYDRAULIC RESERVOIR WITH INTERNAL FILTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L70719
RESERVOIR - hydraulic, with internal filter, Includes: Ref. 1 - 11
1шт.
1
NSS
NOT SOLD SEPARAT
TANK - hydraulic
1шт.
2
L72948
PLUG
- filler
1шт.
3
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
SEAL - access cover bolt
1шт.
4
237-6024
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
24-1, 90 Duro, 1.72" ID x .118" Thk, Plug
1шт.
5
221-35
DRAIN PLUG,Sq Soc, 3/4"-14 NPTF
PLUG - square socket head, 3/4" NPT
1шт.
6
131-510
LOCK NUT,1/2"-13
NUT - hex, self-locking, 1/2" - 13 NC
1шт.
7
L78045
WASHER
- seal
1шт.
8
L77124
COVER ASSY
COVER - hydraulic tank access
1шт.
9
L55410
O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro
- access cover
1шт.
10
L50741
BAR
- cover hold down
1шт.
11
113-409
BOLT,Hex, 1/2" - 13 x 4", Gr 5
- hex head, 1/2" - 13 NC x 4"
1шт.
L70550
ELECTRICAL GAUGE
GAUGE - sight, Includes: Ref. 12 - 22
1шт.
12
D75821
STUD
- mounting
2шт.
13
131-402
NUT,PAL, 1/2"-20
NUT - hex, 1/2" - 20 NF
2шт.
14
92-8
LOCK WASHER,1/2"
2шт.
15
N8537
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
- stud seal
2шт.
16
NSS
NOT SOLD SEPARAT
CAP - top
1шт.
17
NSS
NOT SOLD SEPARAT
CAP - bottom
1шт.
18
N8539
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
- cap
2шт.
19
D75819
GASKET
- lens
2шт.
20
D75845
SIGHTGLASS
LENS - sight gauge
1шт.
21
NSS
NOT SOLD SEPARAT
SEAT - seal
1шт.
22
NSS
NOT SOLD SEPARAT
BODY - gauge
1шт.
23
L59847
VALVE
- relief bypass
2шт.
24
L72877
FILTER, ELEMENT
FILTER - hydraulic oil
2шт.
L77803
SUPPORT
BRACKET ASSEMBLY - filter mount, Includes: Ref. 25 - 27
1шт.
25
L77802
NUT
WING NUT - filter bracket
1шт.
26
L77756
BOLT
- special
1шт.
27
NSS
NOT SOLD SEPARAT
BRACKET - filter
1шт.
28
RESERVED
1шт.
29
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5шт.
30
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
31
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - hardened
12шт.
32
25-1010
NUT,5/8"-11, G5
6шт.
Выбрано товаров: 35
