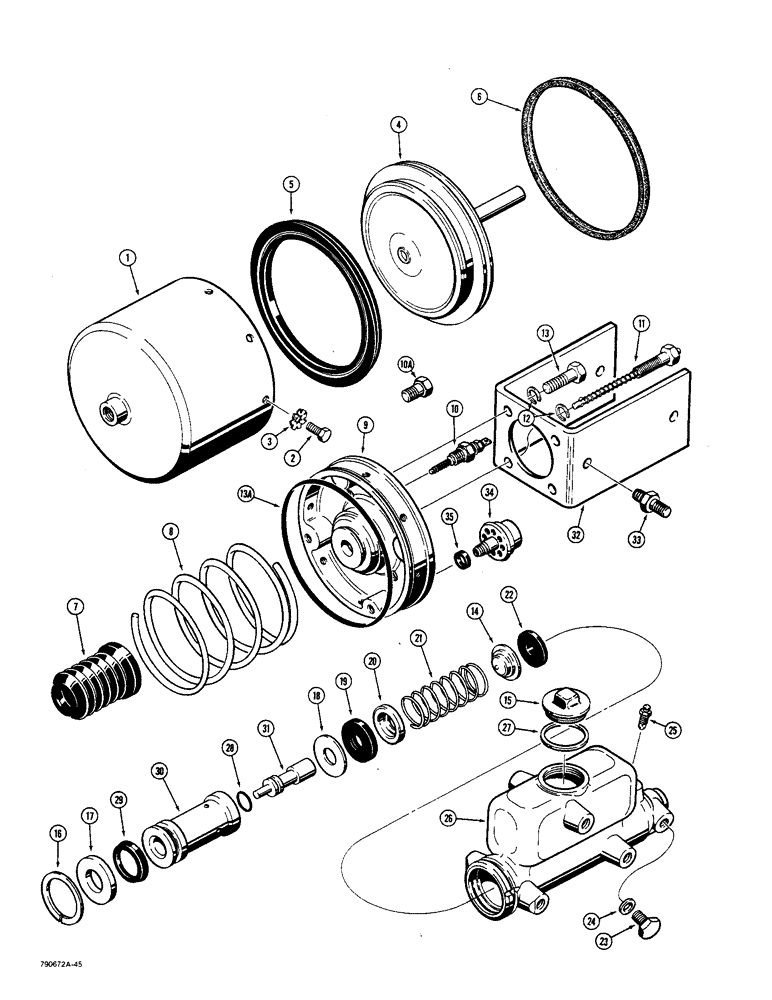

Запчасти Case W36 (7-376) - L77985 AND L107177 BRAKE ACTUATORS, USED ON P.I.N. 9135098 AND AFTER (07) - BRAKES

L77985

PANEL, INSTRUMENTS

BRAKE ACTUATOR - Wagner no. AF-99542, not available, order L107177 brake actuator, Includes: Ref. 1 - 36

2шт.

L107177

MASTER CYLINDER

BRAKE ACTUATOR - Wagner no. AF-99543, Includes: Ref. 1 - 36

1шт.

N8015

CYLINDER

AIR CHAMBER ASSEMBLY - brake actuator, Includes: Ref. 1 - 13A

1шт.

1

D78273

COVER

- air chamber assembly

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

3

193-45

WASHER,Ext-Int Tooth, 5/16"

- external-internal tooth lock, 5/16"

8шт.

4

NSS

NOT SOLD SEPARAT

PISTON AND ROD ASSEMBLY - air chamber

1шт.

5

L32785

SEAL

CUP - piston packing, air chamber

1шт.

6

L32784

WIPER

SEAL - piston

1шт.

7

D78277

BOOT

- piston rod

1шт.

8

D78276

SPRING

- return piston

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - for service order N8015 air chamber

1шт.

10

D78278

SWITCH

- brake warning lamp, not available, order Ref. 10A, 14-812 plug

1шт.

10a

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

PLUG - air cylinder

1шт.

11

D78274

INDICATOR

- stroke

1шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

3шт.

13a

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

- cover

1шт.

N6324

CYLINDER

MASTER CYLINDER - brake actuator, Includes: Ref. 14 - 36

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

Part of Kit P/N N6722

1шт.

15

D78284

FILLER CAP

CAP - filler

1шт.

16

D28436

SNAP RING,2", Int, #200

STOP - piston

1шт.

Part of Kit P/N N6722

1шт.

17

D78282

LARGE PLATE

PLATE - stop

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of Kit P/N N6722

1шт.

19

NSS

NOT SOLD SEPARAT

U-CUP - piston

1шт.

Part of Kit P/N N6722

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

22

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

Part of Kit P/N N6722

1шт.

23

S12090

PLUG

- special

2шт.

24

A12988

GASKET

- plug

2шт.

25

T30270

SCREW

- bleeder

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

27

A19755

GASKET

- filler plug

1шт.

Part of Kit P/N N6722

1шт.

28

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- piston

1шт.

Part of Kit P/N N6722

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder, Includes: Ref. 29 - 31

1шт.

Part of Kit P/N N6722

1шт.

29

N6333

CUP

SEAL - piston

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - secondary

1шт.

Part of Kit P/N N6722

1шт.

32

D78269

SUPPORT

MOUNTING BRACKET - actuator

1шт.

33

D78270

STUD

- master cylinder

4шт.

34

A27173

BREATHER

- air chamber

1шт.

35

D78272

SEAL

- breather

1шт.

36

D82838

LUBRICANT

- tube, not shown

1шт.

L36188

CYLINDER

KIT - includes all Refs. on this Figure except L77985

1шт.

N6722

SET OF PARTS

KIT - Includes: Ref. 14, 16, 18, 19, 22, 27, 28, the master cylinder piston assembly shown below Ref. 28 and Ref. 31

1шт.
