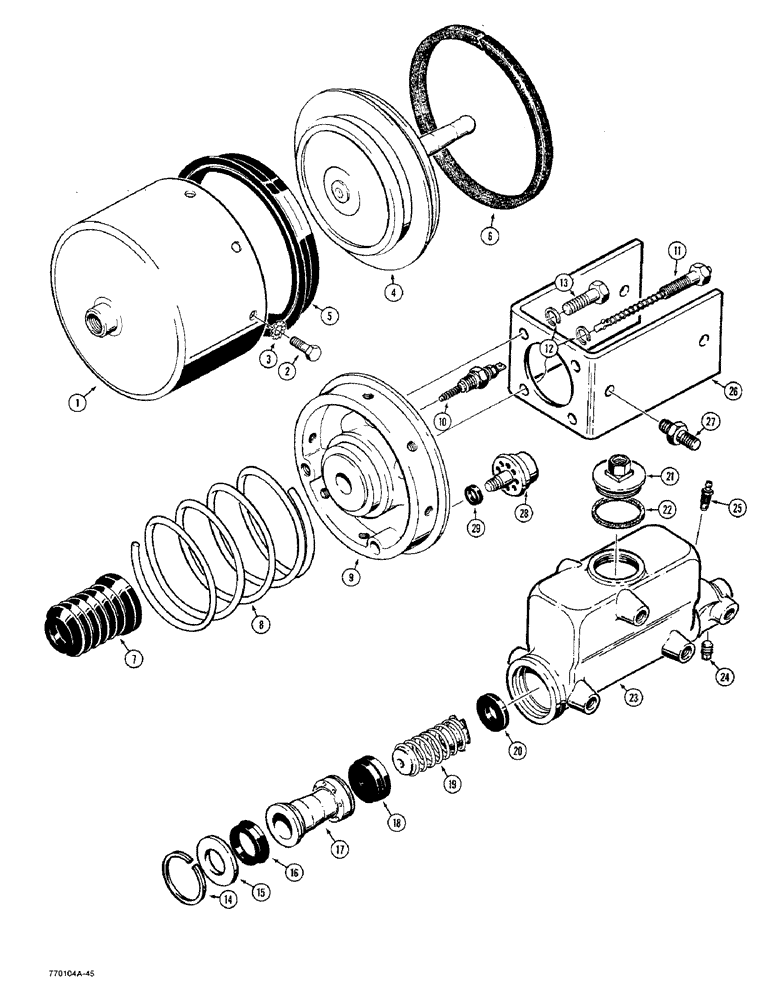

Запчасти Case W36 (7-374) - L76309 BRAKE ACTUATOR, USED BEFORE TRACTOR SN 9135098 (07) - BRAKES

L76309

MASTER CYLINDER

BRAKE ACTUATOR - for service order L36188 brake actuator kit, Includes: Ref. 1 - 30

2шт.

D78267

CYLINDER

AIR CHAMBER ASSEMBLY - brake, Includes: Ref. 1 - 13

1шт.

1

D78273

COVER

- air chamber

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

3

193-45

WASHER,Ext-Int Tooth, 5/16"

- external-internal tooth lock, 5/16"

8шт.

4

N6043

PISTON ROD/GLAND

PISTON AND ROD ASSEMBLY - air chamber

1шт.

5

L32785

SEAL

RING - piston

1шт.

6

L32784

WIPER

RING - felt

1шт.

7

D78277

BOOT

- rod

1шт.

8

D78276

SPRING

- piston return

1шт.

9

D78275

HEAD

- air chamber

1шт.

10

D78278

SWITCH

- brake warning light, not available, order Ref. 10A plug

1шт.

10a

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

PLUG - switch hole, 1/2" - 20 NC x 3/4", not shown

1шт.

11

D78274

INDICATOR

- stroke

1шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

3шт.

D78268

CYLINDER ASSY.

MASTER CYLINDER ASSEMBLY - brake, Includes: Ref. 14 - 25

1шт.

14

D28436

SNAP RING,2", Int, #200

RING - lock

1шт.

15

D78282

LARGE PLATE

PLATE - stop

1шт.

D78279

PISTON

ASSEMBLY - master cylinder, Includes: Ref. 16 and 17

1шт.

16

N6472

CUP

- piston

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

18

D78281

CUP

- piston seat

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

21

D78284

FILLER CAP

PLUG - special, filler

1шт.

22

A19755

GASKET

- plug

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8" NPT

1шт.

25

T30270

SCREW

VALVE - vent

1шт.

26

D78269

SUPPORT

MOUNTING BRACKET - actuator

1шт.

27

D78270

STUD

- master cylinder

4шт.

28

A27173

BREATHER

VALVE - breather

1шт.

29

D78272

SEAL

- valve

1шт.

30

D82838

LUBRICANT

- tube, not shown

1шт.

L36188

CYLINDER

KIT - includes N8015 air cylinder, N6324 master cylinder, D78269 support, D78270 stud, A27173 breather, and D78272 seal on Fig. 7-376, plus S12090 plug and A12988 gasket

1шт.
