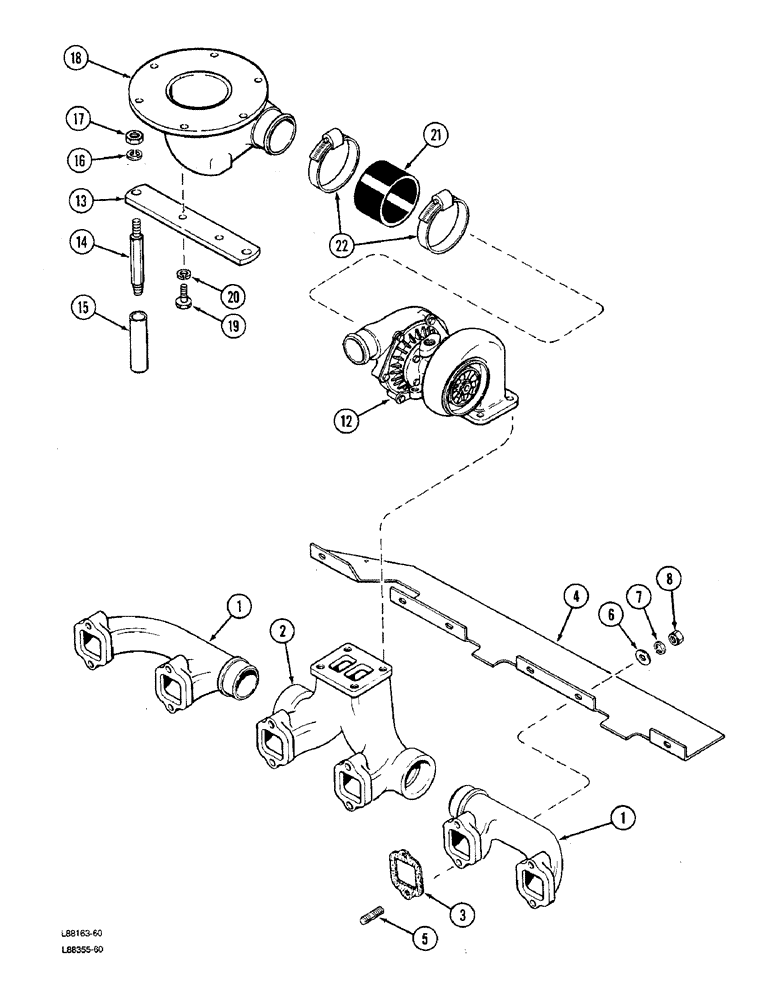

Запчасти Case W36 (2-20) - EXHAUST MANIFOLD, 504BDTI ENGINE (02) - ENGINE

1

A65917

MANIFOLD

- exhaust, ends

2шт.

2

A76322

MANIFOLD

- exhaust, center

1шт.

3

A58895

GASKET

- exhaust manifold

6шт.

4

A76351

GUARD

SHIELD - heat

1шт.

5

A140924

STUD

- manifold, 3/8 NC x 2-5/8 inch

12шт.

6

195-25

WASHER,3/8"

- shield, flat, 3/8 x 13/16 x 1/16 inch

6шт.

7

492-11038

LOCK WASHER,3/8"

12шт.

8

131-903

NUT,3/8"-16

NUT - hex, Seez-Pruf, 3/8 inch NC

12шт.

12

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY (See Fig. 2-22), air cleaner support

1шт.

13

A76857

PLATE

SUPPORT - air cleaner mounting elbow

1шт.

14

A76858

STUD

- support to cylinder head, air cleaner support

2шт.

15

A76859

BUSHING

SPACER - support stud, air cleaner

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Air cleaner support 1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

Air cleaner support 1/2"-13, G5

2шт.

18

A143182

ELBOW

- air cleaner mounting, support

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Elbow to support, air cleaner Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Air cleaner support 3/8"

2шт.

21

A75798

HOSE

- elbow to turbocharger, 3 x 3-3/8 x 2-3/8 inch, air cleaner support

1шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4 inch, air cleaner support

2шт.
