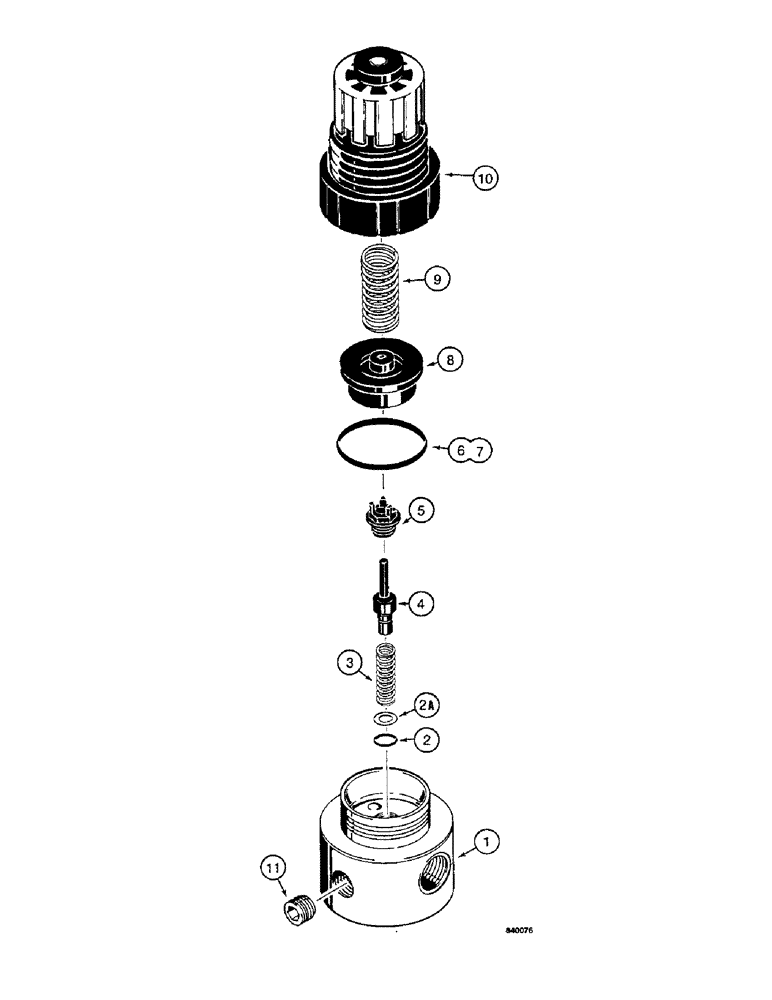

Запчасти Case W36 (7-366) - L112300 AND L72409 PRESSURE REDUCING VALVES - BRAKE, L78650N PRESSURE REDUCING VALVE - AIR ASSIST (07) - BRAKES

L112300

VALVE

- pressure reducing - brakes

1шт.

L72409

LOCK VALVE

VALVE - pressure reducing - brakes

1шт.

L78650

VALVE

- pressure reducing - air assist, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

D76940

KIT

- repair, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

2a

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - small

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - poppet

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

N8744

KIT

- piston, L112300 valve

1шт.

D76941

PISTON

KIT - piston, L72409 and L78650 valves, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

9

D76942

SPRING

- large, L72409 and L112300 valve

1шт.

9

D78360

VALVE SPRING

SPRING - large, L78650 valve

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex socket

1шт.
