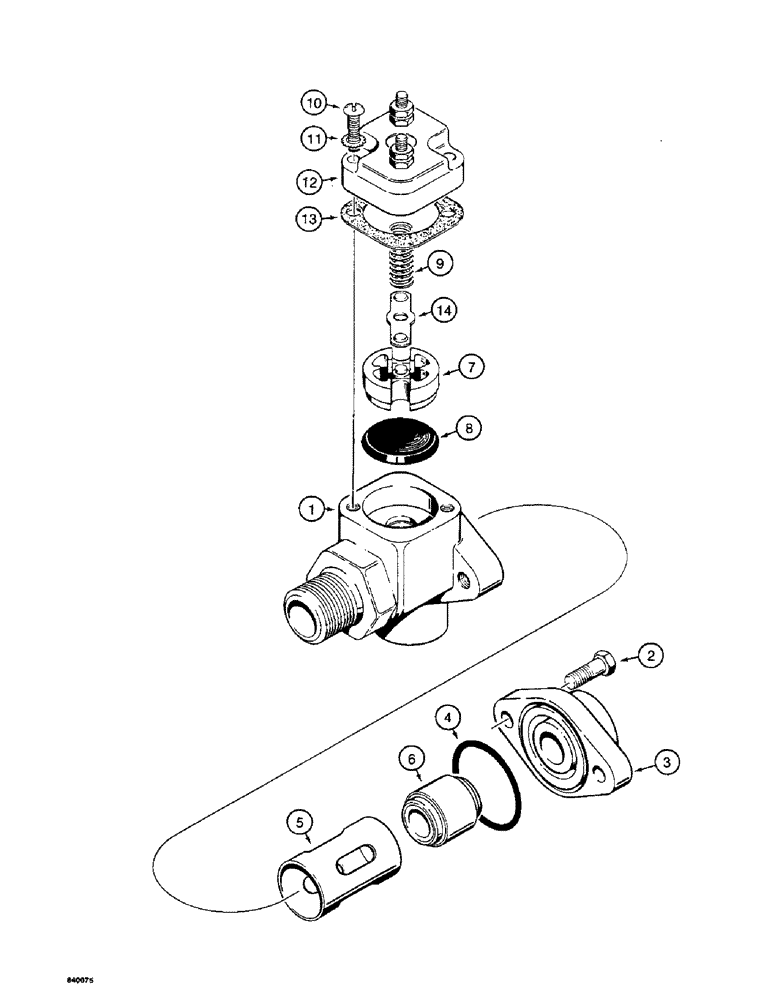

Запчасти Case W36 (7-364) - L48128 DOUBLE CHECK VALVE AND STOP LAMP SWITCH (07) - BRAKES

L48128

VALVE

ASSEMBLY - double check and stop lamp switch, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

L33702

COVER

CAP - valve body

1шт.

4

L31499

O-RING,1" ID x 40546" OD x 3"

- cap

1шт.

5

L31497

GUIDE

- valve shuttle

1шт.

6

L31498

ROD

SHUTTLE - check valve

1шт.

7

L33202

PISTON

- check valve

1шт.

8

L33201

DIAPHRAGM

- piston

1шт.

9

L33204

SPRING

- piston return

1шт.

10

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, no. 10 - 24 NC x 3/4"

2шт.

11

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

12

L33206

COVER

- valve body and stop light terminals

1шт.

13

L33205

GASKET

- valve body cover

1шт.

14

L33203

TERMINAL STRIP

STRIP - contact, switch

1шт.
