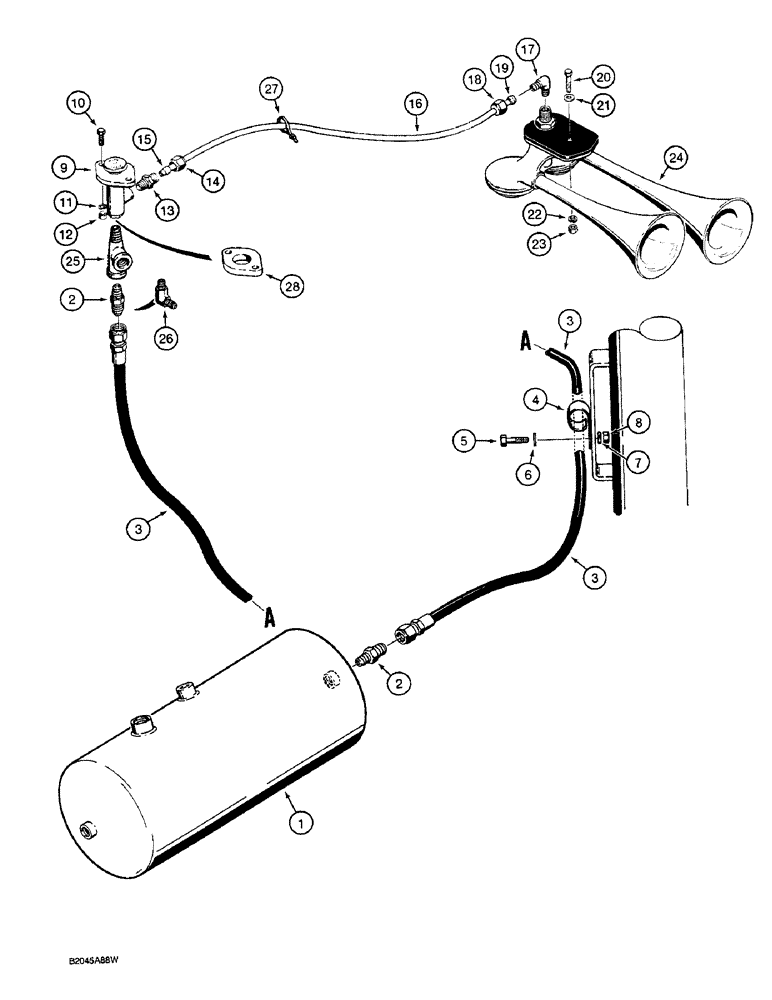

Запчасти Case W36 (7-354) - BRAKE SYSTEM, AIR HORN (07) - BRAKES

1

L57152

RESERVOIR ASSY.

RESERVOIR - air, auxiliary

1шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, if used

2шт.

3

L71229

HOSE ASSY.,0.25" ID x 92.00", SAE J1402C Type A

HOSE - 90" (2337 mm) long

1шт.

4

51200321

CLAMP

- hose

1шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

6

95-8

WASHER,1/2"

flat 1/2"

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

9

L12647

VALVE

- horn, parts list Fig. 7-358

1шт.

10

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

12

131-2

NUT,1/4"-20, GB

NUT - hex, lock, 1/4" - 20 NC

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

14

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

15

222-2610

SLEEVE

- fitting

1шт.

16

L54225

TUBE,0.25" OD x 64" L

- 1/4" (6 mm) ID x 24" (610 mm) long

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degrees, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

18

222-2600

NUT

COMPRESSION NUT - elbow

1шт.

19

222-2610

SLEEVE

- elbow

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

1шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

24

L76560

HORN

- air, parts list Fig. 7-360

1шт.

25

221-1691

TEE,Street, 1/4" NPT

- 1/4" NPT, if used

1шт.

26

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees, if used

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

L114090

SPACER

- horn valve

1шт.
