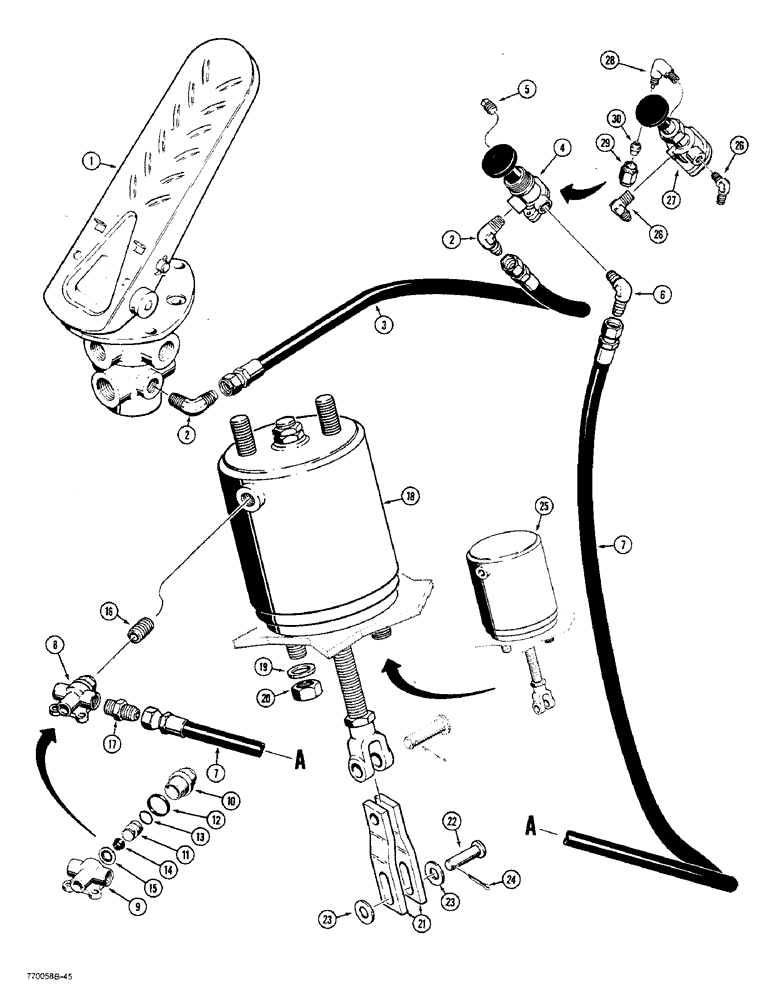

Запчасти Case W36 (7-352) - BRAKE SYSTEM, PARKING BRAKE (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - right-hand, parts list Fig. 7-362

1шт.

2

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees, used with L52178 valve, Ref. 4

2шт.

3

L52184

HOSE

- 56" (1422 mm) long

1шт.

4

L52178

VALVE

ASSEMBLY - parking brake, mounts with two screws, parts list Fig. 7-370, order L36199 kit, see below

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" NPT

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

6

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees

1шт.

7

L71225

HOSE ASSY.,0.25" ID x 72.00", SAE J1402 Type B

HOSE ASSY, 0.25" ID x 72.00", SAE J1402, Type B

1шт.

8

L55335

LOCK VALVE

VALVE - quick release, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

10

NSS

NOT SOLD SEPARAT

FITTING - inlet

1шт.

11

N6200

SEAT

- valve

1шт.

N6201

SEAL KIT

- seal, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - kit

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - kit

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - kit

1шт.

16

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1" x 1/4" NPT

1шт.

17

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

18

L70505

CHAMBER

PARKING BRAKE ACTUATOR - parts list Fig. 7-378, if used

1шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

2шт.

20

131-676

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

2шт.

21

L107710

DRAG LINK

LINK - parking brake

2шт.

22

141-12

CLEVIS PIN,3/8" x 1 5/16"

- 3/8" x 1-5/16"

1шт.

23

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

25

L112239

CHAMBER

ASSEMBLY - parking brake actuator, parts list Fig. 7-380, if used

1шт.

26

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees, used with L103834 valve, Ref. 27

2шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

27

L103834

VALVE

ASSEMBLY - parking brake, mounts with lock nut, parts list Fig. 7-372

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree elbow, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

29

222-2600

NUT

COMPRESSION NUT - elbow

1шт.

30

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

SLEEVE - elbow

1шт.

L36199

VALVE

KIT - parking brake valve, to service L52178 valve, Includes: Ref. 4, 5 and 26, and (2) 221-1103 pipe nipples not used on this tractor

1шт.
