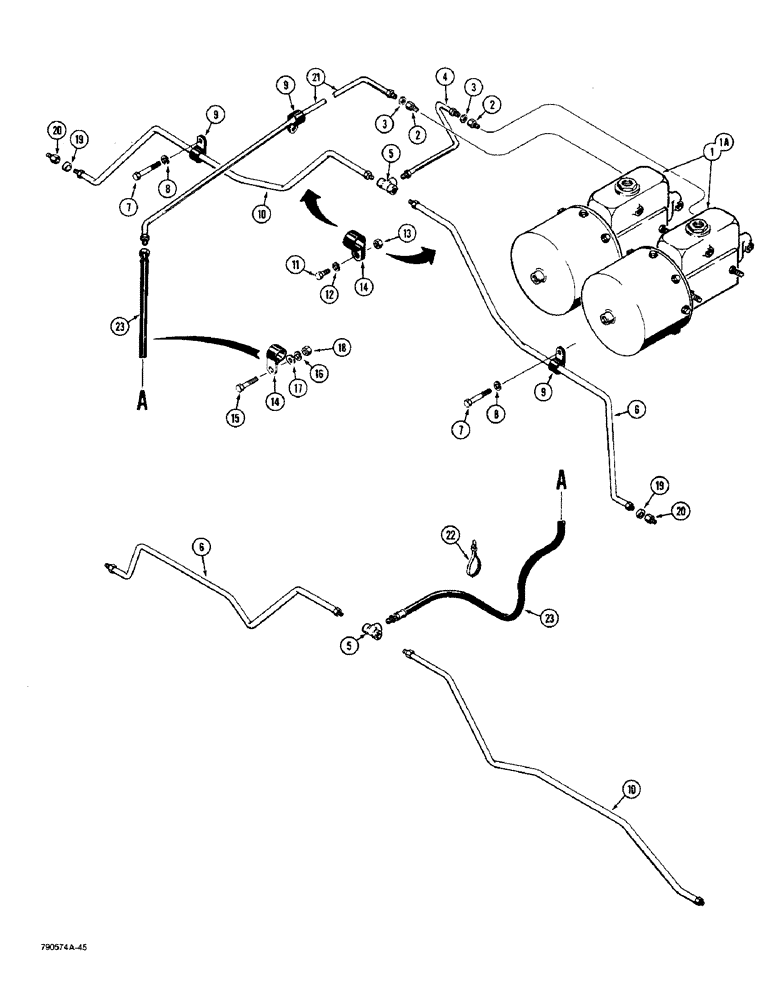

Запчасти Case W36 (7-350) - BRAKE ACTUATOR TO WHEEL CYLINDER, USED ON P.I.N. 9135098 AND AFTER (07) - BRAKES

1

L77985

PANEL, INSTRUMENTS

BRAKE ACTUATOR - with stroke limit switch, no longer available, order L107177 brake actuator, parts list Fig. 7-376

2шт.

1a

L107177

MASTER CYLINDER

BRAKE ACTUATOR - without stroke limit switch, parts list Fig. 7-376

2шт.

2

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

CONNECTOR - straight

2шт.

3

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector

2шт.

4

L71065

TUBE,0.25" OD

- brake actuator, front

1шт.

5

222-1150

TEE,7/16"-24, Inv Fl

- brake tubes

2шт.

6

L79751

TUBE,0.25" OD x 35.25, 14.92" L

- right-hand front and left-hand rear

2шт.

7

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 3"

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

49851

SHIELD

- tube

5шт.

10

L79749

TUBE,0.25" OD x 33.5, 14.92" L

- left-hand front and right-hand rear

2шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

14

49769

HUB

- hose

5шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

95-8

WASHER,1/2"

flat 1/2"

1шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

19

A12643

WASHER

GASKET - connector

4шт.

20

L79764

ADAPTER

CONNECTOR - special

4шт.

21

L71367

TUBE,0.25" OD

- brake actuator, rear

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

L74410

HOSE ASSY.,0.19" ID x 108.00", SAE J1401

HOSE ASSY, 0.19" ID x 108.00", SAE J1401

1шт.
