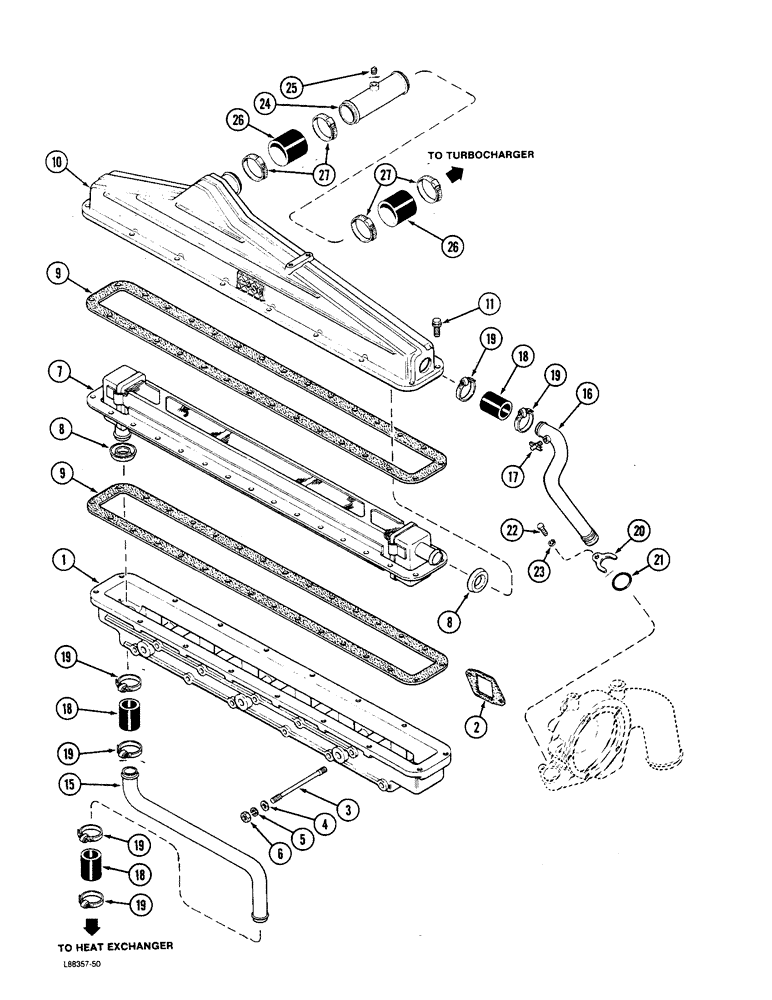

Запчасти Case W36 (2-18) - INTAKE MANIFOLD AND INTERCOOLER, 504BDTI ENGINE (02) - ENGINE

1

A144300

TUBE

MANIFOLD - intake, lower

1шт.

2

A58662

MANIFOLD GASKET

- lower intake manifold

6шт.

3

A59077

STUD

- lower manifold to cylinder head, 3/8 NC x 1-13/16 inch

1шт.

3

A144593

STUD

- lower manifold to cylinder head, 3/8 NC x 6-13/16 inch

11шт.

4

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8 inch NC

12шт.

7

A76661

CORE

INTERCOOLER ASSEMBLY - core

1шт.

8

A76662

SEAL

- intercooler

2шт.

Part of Gasket Kit P/N A44078.

1шт.

9

A76663

GASKET

-, Serial Range: intercooler-manifold

2шт.

Part of Gasket Kit P/N A44078.

1шт.

10

A150285

MANIFOLD

- intake, upper

1шт.

11

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - manifolds, hex, Sems, 3/8 NC x 1-1/2 inch

16шт.

15

A144426

TUBE

- intercooler to heat exchanger

1шт.

16

A144544

TUBE

- intercooler to water pump

1шт.

17

217-81

VALVE

- drain plug

1шт.

18

A58640

HOSE

- 1-1/4 x 1-5/8 x 2-7/16 inch

3шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

6шт.

20

A76666

CLAMP

- tube to water pump body

1шт.

21

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- tube, 1-1/8 x 1-3/8 x 1/8 inch

1шт.

Part of Gasket Kit P/N A44078.

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Clamp Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

A144406

TUBE

- upper intake, Serial Range: manifold-turbocharger

1шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - tube, square head, 1/8 inch PT

1шт.

26

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

2шт.

27

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

A44078

GASKET

KIT, Includes: Ref. 8, 9 and 21

1шт.
