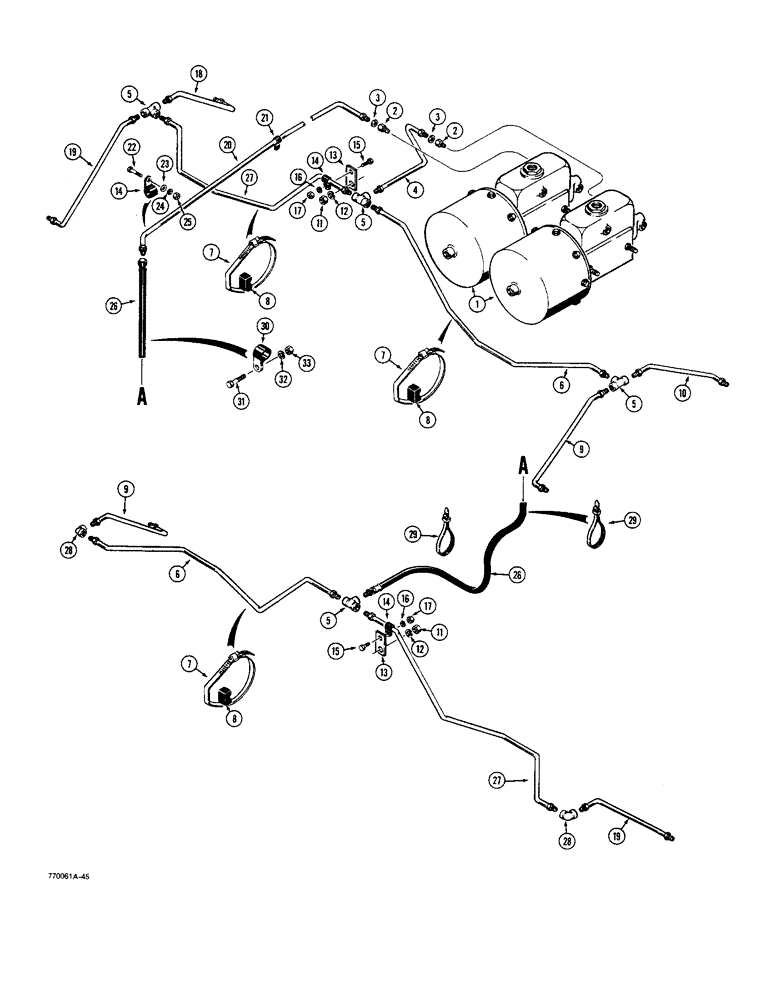

Запчасти Case W36 (7-348) - BRAKE SYSTEM, BRAKE ACTUATOR TO WHEEL CYLINDER, USED BEFORE PIN 9135098 (07) - BRAKES

1

L76309

MASTER CYLINDER

- parts list Fig. 7-374, for service order L36188 brake actuator kit

2шт.

2

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

CONNECTOR - straight

2шт.

3

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector

2шт.

4

L71065

TUBE,0.25" OD

- brake actuator, front

1шт.

5

222-1150

TEE,7/16"-24, Inv Fl

- brake tubes

4шт.

6

L71174

TUBE,0.25" OD x 33.67, 7.71" L

- right-hand front and left-hand rear

2шт.

7

214-285

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - hose

8шт.

8

L51239

SUPPORT ASSY.

SUPPORT - rubber

8шт.

9

L72456

TUBE,0.25" OD

- right-hand front and left-hand rear

2шт.

10

L72454

TUBE,0.25" OD

- right-hand front

1шт.

11

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

L12611

BRACKET

PLATE - tube mounting

2шт.

14

51200321

CLAMP

- tube

3шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

18

L72458

TUBE,0.25" OD

- left-hand front

1шт.

19

L72798

TUBE,0.25" OD

- left-hand front and right-hand rear

2шт.

20

L71367

TUBE,0.25" OD

- brake actuator, rear

1шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

1шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

23

95-8

WASHER,1/2"

flat 1/2"

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

26

L74410

HOSE ASSY.,0.19" ID x 108.00", SAE J1401

HOSE ASSY, 0.19" ID x 108.00", SAE J1401

1шт.

27

L71060

TUBE,0.25" OD

- right-hand rear and left-hand front

2шт.

28

222-1130

ELBOW

- 90 degrees

2шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

30

49891

CLAMP

- hose

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

L36188

CYLINDER

KIT - includes N8015 air cylinder, N6324 master cylinder, D78269 support, D78270 stud, A27173 breather, and D78272 seal on Fig. 7-376.

1шт.
