Запчасти Case W36 (7-346) - BRAKE SYSTEM, BRAKE FLUID RESERVOIR TO BRAKE ACTUATOR (07) - BRAKES

1

L71279

TANK

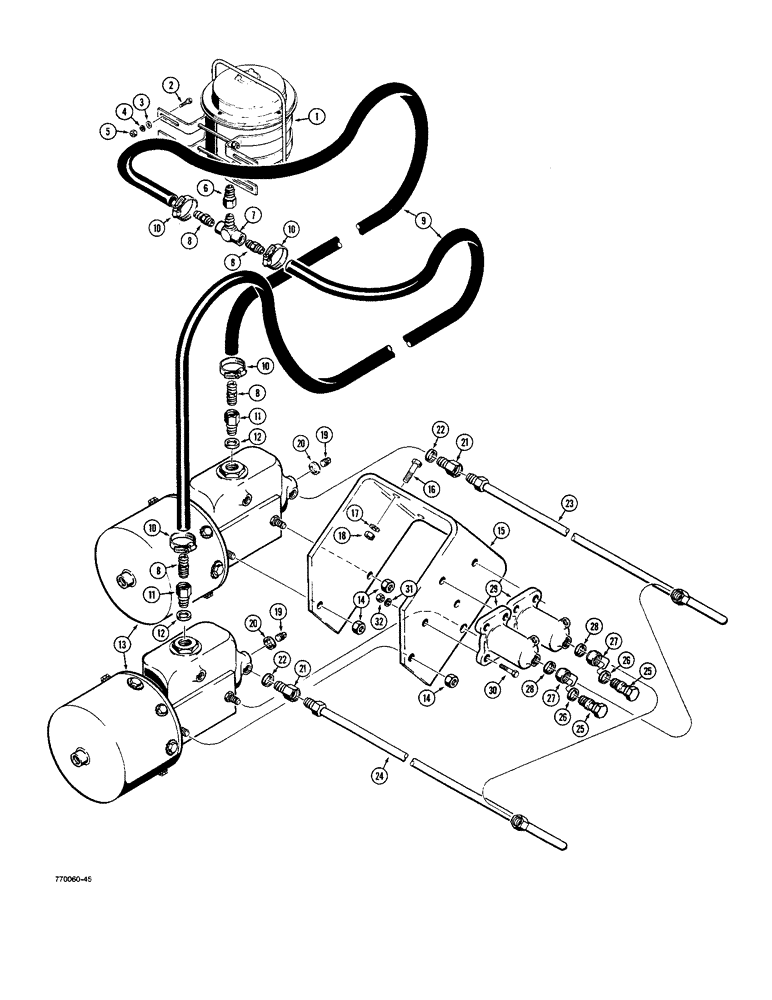

RESERVOIR - brake fluid, parts list Fig. 7-356

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

25-104

NUT,1/4"-20, G5

4шт.

6

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8" NPT x 1/4" NPT

1шт.

7

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- brake hoses

1шт.

8

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight

4шт.

9

L109193

HOSE

- 1/4" (6 mm) ID x 15-1/2" (394 mm)

2шт.

10

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

11

L76300

CONNECTOR, ELEC

CONNECTOR - straight

2шт.

12

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector

2шт.

13

REF

INSTRUCTION

BRAKE ACTUATOR - see Figs. 7-374 and 7-376 for correct assembly and components

2шт.

14

131-90

LOCK NUT,7/16"-20, G8

NUT - hex, self-locking, 7/16" - 14 NC

4шт.

15

L71340

SUPPORT

BRACKET - brake actuator mounting

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

19

S12090

PLUG

- brake actuator

2шт.

20

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - plug

2шт.

21

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

CONNECTOR - straight

2шт.

22

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector

2шт.

23

L76304

TUBE,0.25" OD x 14.69, 6.49" L

- left-hand, if used

1шт.

24

L76302

TUBE,0.25" OD x 5.28, 5.89" L

- right-hand, if used

1шт.

25

L49952

BOLT

- hollow, if used

2шт.

26

L49953

GASKET

GASKET - outer, if used

2шт.

27

L49951

FITTING

- banjo, if used

2шт.

28

A12643

WASHER

GASKET - inner, if used

2шт.

29

L74996

CYLINDER

- displacement, Includes: Ref. 29A

2шт.

29a

D88769

O-RING

- displacement cylinder, not shown

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
