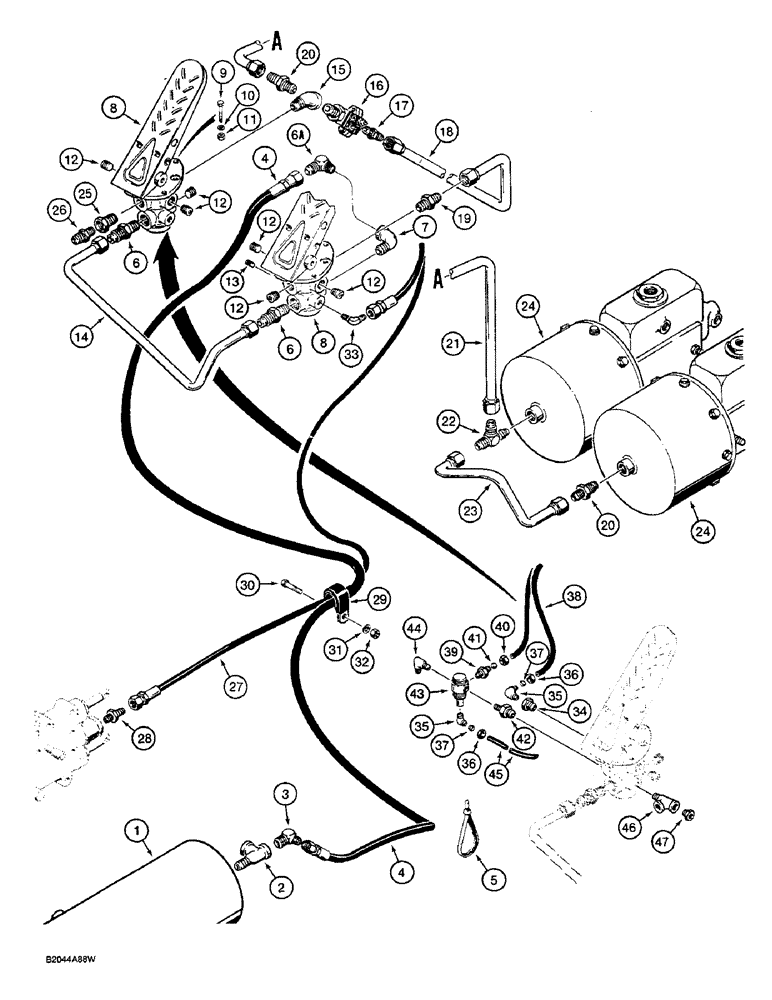

Запчасти Case W36 (7-344) - BRAKE SYSTEM, RESERVOIR TO TREADLE AND BRAKE ACTUATOR (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, main

1шт.

2

221-1693

TEE,Street, 1/2" NPT

- 1/2" NPT

1шт.

3

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degrees, male

1шт.

4

L71228

FUEL HOSE

HOSE - 117" (2972 mm) long

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male

2шт.

6a

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees

1шт.

7

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degrees, 1/2" NPT

1шт.

8

L73042

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, parts list Fig. 7-362

2шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

10

92-5

LOCK WASHER,5/16"

6шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

12

221-1844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

6шт.

13

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

14

L113863

PIPE ASSY.,0.625" OD

TUBE - treadle crossover

1шт.

15

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- 45 degrees

1шт.

16

L48128

VALVE

- double check, parts list Fig. 7-364

1шт.

17

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

18

L71327

TUBE,0.5" OD

- check valve

1шт.

19

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

20

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

2шт.

21

L79787

TUBE,0.5" OD

- to brake actuators

1шт.

22

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Tube 3/4"-16, 37º x 3/8"-18, NPTF Run

1шт.

23

L71277

TUBE,0.5" OD

- between brake actuators

1шт.

24

REF

INSTRUCTION

BRAKE ACTUATOR - see Figs. 7-374 and 7-376 for correct assembly

2шт.

25

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/2" NPT, not used with Ref. 43 valve, clutch cutout

1шт.

26

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, not used with Ref. 43 valve, clutch cutout

1шт.

27

L71225

HOSE ASSY.,0.25" ID x 72.00", SAE J1402 Type B

HOSE ASSY, 0.25" ID x 72.00", SAE J1402, Type B, Clutch Cutout

1шт.

28

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, clutch cutout

1шт.

29

R13931

CLAMP

- hose, clutch cutout

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Clutch cutout Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

clutch cutout 3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, clutch cutout

1шт.

33

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees, clutch cutout

1шт.

34

221-87

REDUCER,1/2" NPT x 1/8" NPT

- 1/2" x 1/8" NPT, clutch cutout

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree elbow, clutch cutout, Includes: Ref. 35 - 37

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - elbow, clutch cutout

1шт.

36

222-2600

NUT

COMPRESSION NUT - elbow, clutch cutout

1шт.

37

222-2610

SLEEVE

- elbow, clutch cutout

1шт.

38

L110859

TUBE,6.35 mm OD x 254 mm L

- 1/4" (6 mm) ID x 10" (254 mm) long, clutch cutout

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, clutch cutout, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - fitting, clutch cutout

1шт.

40

222-2600

NUT

COMPRESSION NUT - fitting, clutch cutout

1шт.

41

222-2610

SLEEVE

- fitting, clutch cutout

1шт.

42

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - straight, clutch cutout

1шт.

43

L109922

VALVE

- three way pilot, clutch cutout

1шт.

44

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees, clutch cutout

1шт.

45

L110858

TUBE,1335 mm L

- 1/4" (6 mm) ID x 52-1/2" (1335 mm) long, clutch cutout

1шт.

46

221-1691

TEE,Street, 1/4" NPT

- sender, clutch cutout

1шт.

47

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT, clutch cutout

1шт.
