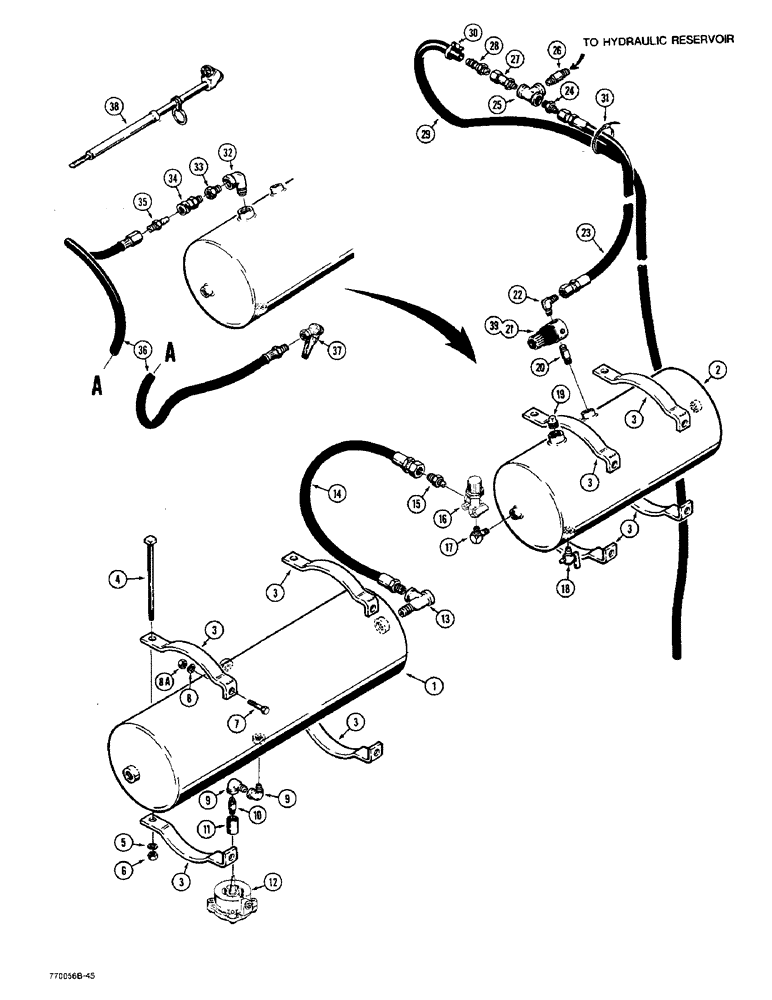

Запчасти Case W36 (7-322) - BRAKE SYSTEM, AIR RESERVOIRS AND RELATED PARTS (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, main

1шт.

2

L57152

RESERVOIR ASSY.

RESERVOIR - air, auxiliary

1шт.

L12632

BRACKET

ASSEMBLY - reservoir mounting, Includes: Ref. 3 - 6

4шт.

3

L32871

SUPPORT

BRACKET - mounting

8шт.

4

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- square head, 3/8" - 16 NC x 6"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

8a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

9

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

2шт.

10

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 7/8" x 1/4" NPT

1шт.

11

221-1336

COUPLING,Pipe, 1/4" NPT

COULING - 1/4" NPT

1шт.

12

L51573

VALVE

- moisture rejector, parts list Fig. 7-356

1шт.

13

221-1693

TEE,Street, 1/2" NPT

- 1/2" NPT

1шт.

14

L71400

FUEL HOSE

HOSE - 16" (406 mm) long

1шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

16

L13530

VALVE

- pressure protection, parts list Fig. 7-358

1шт.

17

217-1225

ELBOW,90 Degree, 1/4"-18 Male

- 90 degrees, 1/4" NPT

1шт.

18

L112624

LOCK VALVE

VALVE - drain, reservoir

1шт.

19

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT, if used

1шт.

20

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1" x 1/4" NPT

1шт.

21

L72409

LOCK VALVE

VALVE - pressure reducing, if used, parts list Fig. 7-366

1шт.

22

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees, 1/4" NPT

1шт.

23

L52184

HOSE

- 56" (1422 mm) long

1шт.

24

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

25

221-422

TEE,Pipe, 1/4" NPT

- 1/4" NPT

1шт.

26

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 3/4" x 1/4" NPT

1шт.

27

L76420

LOCK VALVE

VALVE - relief

1шт.

28

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

29

L76635

HOSE,0.38" ID x 72.00", SAE 30R2 Type 1

0.38" ID x 72.00", SAE 30R2, Type I

1шт.

30

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

32

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees

1шт.

33

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- coupler

1шт.

34

L13978

VALVE

COUPLER - adapter, female

1шт.

35

L13979

COUPLING

COUPLER - adapter, male

1шт.

36

L15274

HOSE

- 340" (8636 mm) long

1шт.

37

L78138

PNEUMATIC VALVE

VALVE - air control

1шт.

38

L13977

GAUGE ASSY.

GAUGE - air pressure

1шт.

38a

L113543

SET OF PARTS

GAUGE - air pressure, remote, with 5 ft hose, not shown

1шт.

39

L112300

VALVE

- pressure reducing, parts list Fig. 7-366

1шт.
