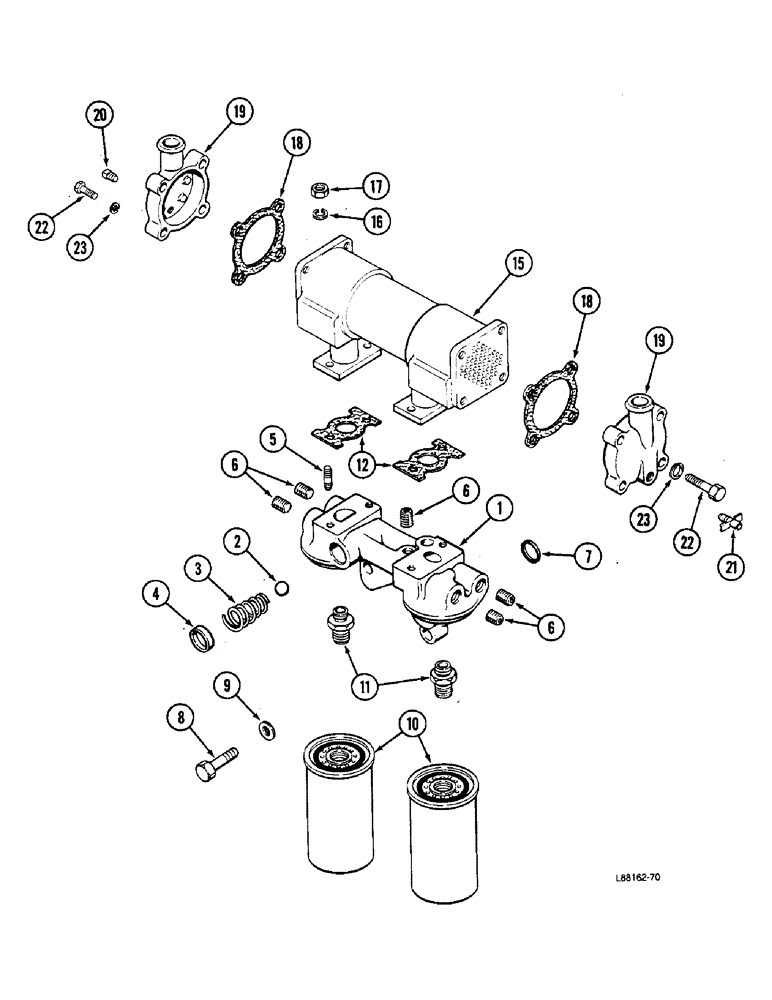

Запчасти Case W36 (2-16) - OIL FILTER AND HEAT EXCHANGER, 504BDTI ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter and heat exchanger, Includes: Ref. 2 - 6

1шт.

2

211-17

BALL,3/4" Dia

- relief valve, 3/4 inch diameter

1шт.

3

A146897

SPRING

- relief valve, 2-13/16 inch free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, cup, 1-1/4 inch

1шт.

5

G102128

BOLT

- base, 3/8 NC x 1-7/16 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- base, socket head, 1/2 inch PT

5шт.

7

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block 15/16 x 1-1/8 x 1/8 inch

2шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Base Hex, 1/2"-13 x 2", G5

1шт.

8

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base, hex, 1/2 NC x 3 inch

1шт.

9

195-533

WASHER,1/2", SAE

2шт.

10

A44081

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

11

A63916

ADAPTER

- filter to base, 1 inch NC and 1 inch NF

2шт.

12

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

15

A75295

OIL COOLER

HEAT EXCHANGER - oil

1шт.

16

492-11038

LOCK WASHER,3/8"

NC 3/8"

4шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

A63920

GASKET

- heat exchanger cover

2шт.

19

A64349

HOOD

COVER - heat exchanger ends

2шт.

20

221-849

PLUG,Hex Soc, 1/8"-27

- cover, square head, 1/8 inch PT

1шт.

21

217-107

VALVE

PLUG - drain, heat exchanger (If equipped)

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, hex, 3/8 NC x 1-1/2 inch

8шт.

23

492-11038

LOCK WASHER,3/8"

8шт.
