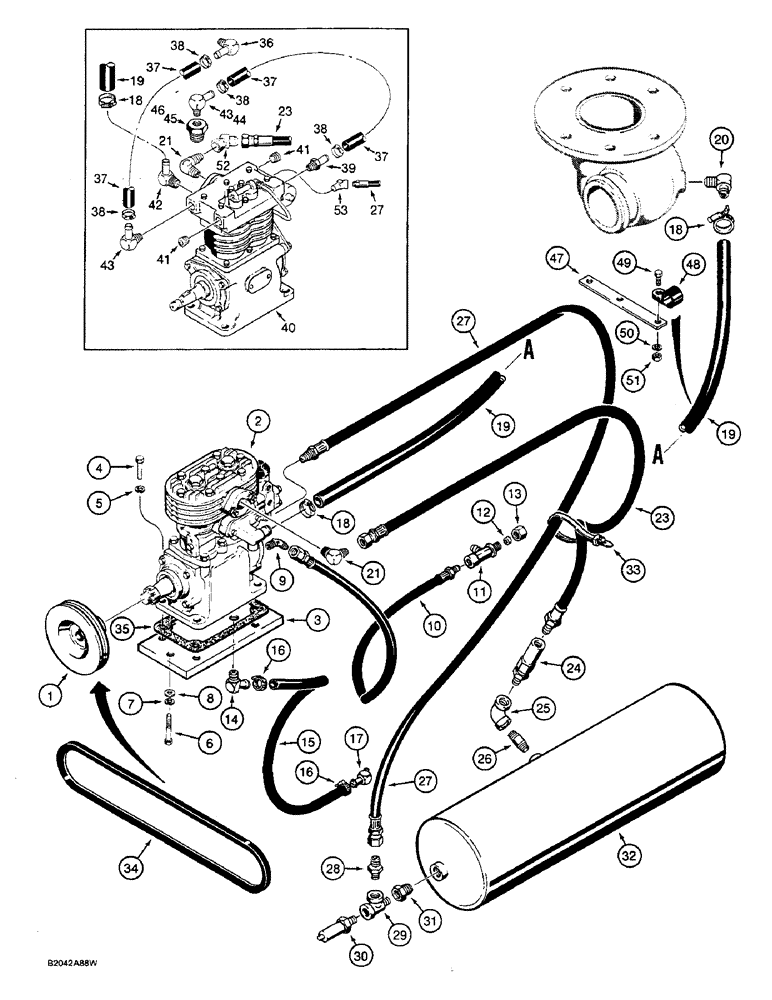

Запчасти Case W36 (7-318) - BRAKE SYSTEM, AIR COMPRESSOR TO RESERVOIR (07) - BRAKES

1

L50045

PULLEY

- air compressor

1шт.

2

REF

INSTRUCTION

COMPRESSOR - see Figs. 7-324 - 7-334 for correct assembly and components

1шт.

3

L71260

PLATE

- compressor

1шт.

4

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

D64050

WASHER

- hardened

2шт.

9

218-532

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

10

L100556

HOSE,0.25" ID x 17.00"

1шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

FITTING ASSEMBLY - tee, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

TEE - fitting

1шт.

12

222-102

SLEEVE,1/4" Tube

1шт.

13

87017024

TUBE NUT,1/2"-24

COMPRESSION NUT - fitting

1шт.

14

217-143

ELBOW,45 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

STEM FITTING - 45 degree

1шт.

15

L77718

HOSE

- 1/2" (13 mm) (D x 24" (610 mm)

1шт.

16

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

17

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degrees

1шт.

18

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

19

L116331

INTAKE AIR HOSE,19.00 mm ID x 1371.60 mm, SAE 20R1

19.00 mm ID x 1371.60 mm, SAE 20R1

1шт.

20

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degrees

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees

1шт.

22

RESERVED

1шт.

23

L72606

FUEL HOSE

HOSE - 27" (686 mm) long

1шт.

24

L46281

VALVE, CHECK

CHECK VALVE - air reservoir

1шт.

25

221-1376

ELBOW,90 Degree, 3/8" NPT

- 90 degrees, 3/8" NPT

1шт.

26

221-1164

HYD CONNECTOR

NIPPLE - 2" x 3/8" NPT

1шт.

27

L71402

HOSE ASSY.,0.25" ID x 36.00", SAE J1402 Type B

HOSE ASSY, 0.25" ID x 36.00", SAE J1402, Type B

1шт.

28

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

29

221-1691

TEE,Street, 1/4" NPT

- pipe

1шт.

30

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

31

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" NPT x 1/4" NPT

1шт.

32

L14823

TANK

RESERVOIR - air, main, for related parts see Fig. 7-322

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

34

L71058

BELT,.050" W x 47.00" L

Compressor .050" W x 47.00" L

1шт.

35

D80610

GASKET

- mounting, Serial Range: plate-compressor

1шт.

36

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - 90 degrees

1шт.

37

L100066

HOSE,15.90 mm ID x 571.50 mm, SAE 20R3

HEATER HOSE - Air compressor, Cut as required 15.90 mm ID x 571.50 mm, SAE 20R3

2шт.

38

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

39

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight

1шт.

40

L112909

COMPRESSOR

AIR COMPRESSOR - water cooled, see Figs. 7-336 and 7-340 for parts list

1шт.

40

LR112909

REMAN-COMPRESSOR

Compressor Only

1шт.

40

LC112909

CORE-COMPRESSOR

Return Part Number

1шт.

41

221-1843

PLUG

- 3/8" NPT

2шт.

42

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - 90 degrees

1шт.

43

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - 90 degrees, 5/8" ID hose x 3/8" NPT, if used

1-2шт.

44

217-165

ELBOW,90 Degree, 3/4" NPT x 5/8" Barbed

STEM FITTING - 90 degrees, 5/8" ID hose x 3/4" NPT, if used

1шт.

45

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer, 1" NPT x 3/4" NPT, if used

1шт.

46

221-63

BUSHING

- reducer, 1" NPT x 3/8" NPT, if used

1шт.

47

L116268

BRACKET

- hose support

1шт.

48

D39138

CLAMP

- hose

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

1шт.

51

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

52

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- swivel, 45 degrees

1шт.

53

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.
