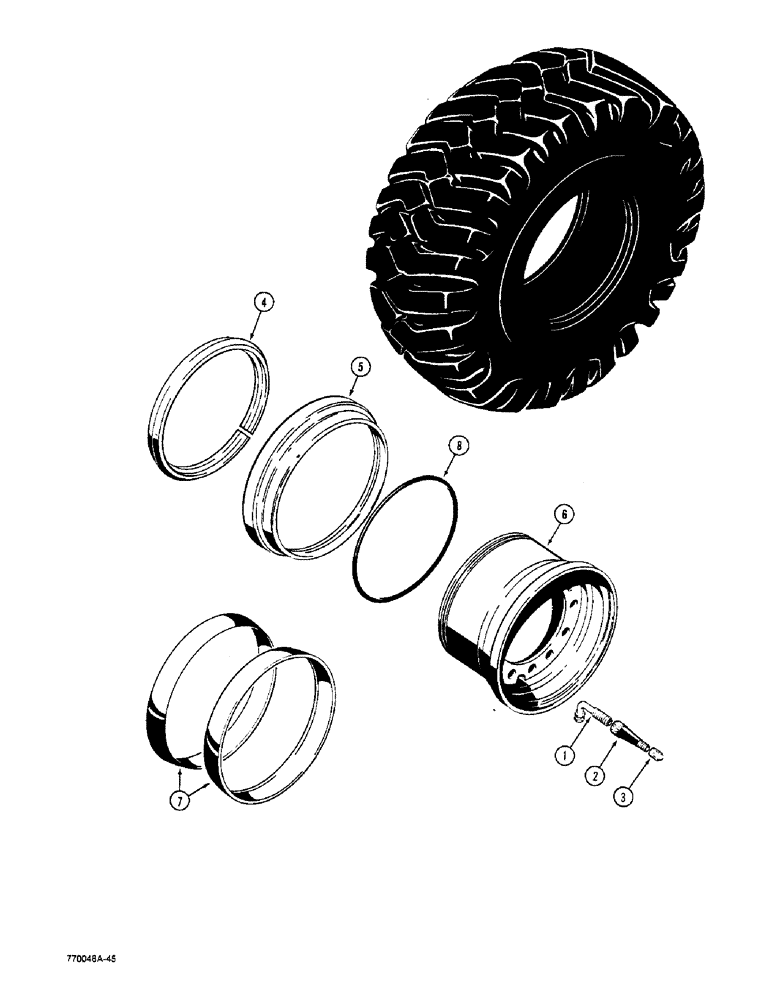

Запчасти Case W36 (7-316) - WHEELS (07) - BRAKES

1

L11405

VALVE

- tubeless tire, elbow

4шт.

2

L11406

ADAPTER

- tire valve

4шт.

3

L19664

VALVE STEM

CAP - adapter

4шт.

4

A16424

RING, LOCKING

RING - lock, for 20.5 x 25 tires with L70469 rim

4шт.

5

A16423

RING

RING - lock, bead set, for 20.5 x 25 tires with L70469 rim

4шт.

6

L70469

RIM

- 17 x 25, EWC no. F514645899, order L111807 wheel assembly, for 20.5 x 25 tires with L70469 rim

4шт.

7

A16422

BACK-UP RING

RING - side rim, for 20.5 x 25 tires with L70469

4шт.

8

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

- seal, for 20.5 x 25 tires with L70469 rim

4шт.

L111807

RIM

WHEEL ASSEMBLY - Electric Wheel, for 20.5 x 25 tires with L111807, Includes: Ref. 4 - 6

4шт.

4

A19100

LOCKING RING

RING - lock, for 20.5 x 25 tires with L111807 wheel assembly

1шт.

5

L12685

RING

- lock, bead set, for 20.5 x 25 tires with L111807 wheel assembly

1шт.

6

L101232

RIM

- 17 x 25, EWC no. 51-46637-99, stamped EW for Electric Wheel, for 20.5 x 25 tires with L111807 assembly

1шт.

L111807

RIM

WHEEL ASSEMBLY - Newton - GKN, for 20.5 x 25 tires with L111807, Includes: Ref. 4 - 6

4шт.

4

N8338

RING

- lock, for 20.5 x 25 tires with L111807 wheel assembly

1шт.

5

N8337

RING

- lock, bead set, for 20.5 x 25 tires with L111807 wheel assembly

1шт.

6

NSS

NOT SOLD SEPARAT

RIM - wheel, for 20.5 x 25 tires with L111807 assembly

1шт.

L111874

RIM

WHEEL ASSEMBLY - Electric Wheel, for 23.5 x 25 tires, Includes: Ref. 4 - 7

4шт.

4

A16424

RING, LOCKING

RING - lock, for 23.5 x 25 tires

1шт.

5

A16423

RING

RING - lock, bead set, for 23.5 x 25 tires

1шт.

6

L70470

WEIGHT, WHEEL

RIM - wheel, for 23.5 x 25 tires

1шт.

7

L12690

RING, SNAP

RING - side rim, for 23.5 x 25 tires

1шт.

L111874

RIM

WHEEL ASSEMBLY - Newton - GKN, for 23.5 x 25 tires, Includes: Ref. 4 - 7

4шт.

4

N8672

RING, SNAP

RING - lock, for 23.5 x 25 tires

1шт.

5

N8673

RING

- bead set, for 23.5 x 25 tires

1шт.

6

NSS

NOT SOLD SEPARAT

RIM - wheel, for 23.5 x 25 tires

1шт.

7

N8671

RING

- side rim, for 23.5 x 25 tires

1шт.

4

A16424

RING, LOCKING

RING - lock, for 26.5 x 25 tires

4шт.

5

L102961

BAND

RING - lock, bead set, for 26.5 x 25 tires

4шт.

6

L70471

RIM

- wheel, 22 x 25, for 26.5 x 25 tires

4шт.

7

L100284

RING

- side rim, for 26.5 x 25 tires

4шт.

8

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

- seal, for 26.5 x 25 tires

4шт.
