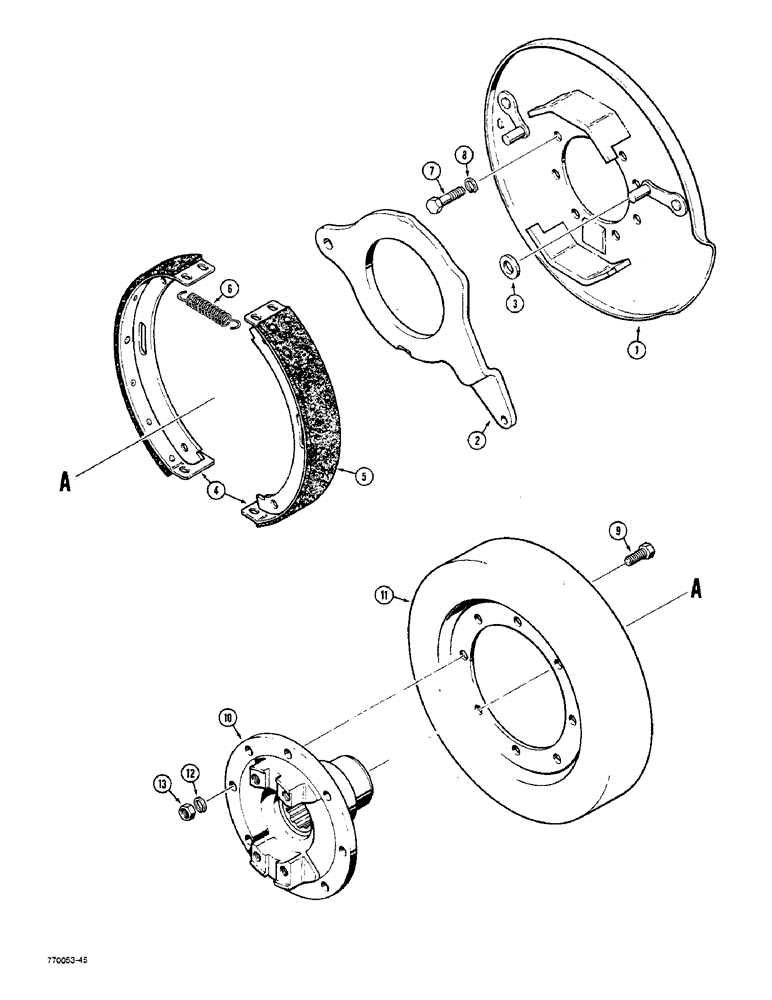

Запчасти Case W36 (7-314) - PARKING BRAKE (07) - BRAKES

N8235

BRAKE LINE

BRAKE ASSEMBLY - interchangeable with A25270, Includes: Ref. 1 - 6

1шт.

1

N8236

PLATE

- backing, interchangeable with A25269

1шт.

2

A12779

LEVER

- brake shoe, Includes: Ref. 3

1шт.

3

A16642

WASHER

ROLLER - brake

1шт.

A12780

BRAKE SHOE

ASSEMBLY - parking brake, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

5

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

6

A12778

SPRING

- brake shoe

2шт.

7

L34034

BOLT

- special

7шт.

8

D47367

WASHER

- lock

7шт.

9

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

10

T39339

FLANGE

YOKE - flange

1шт.

11

A25271

BRAKE DRUM

DRUM - parking brake

1шт.

12

92-6

LOCK WASHER,3/8"

8шт.

13

129-524

NUT,3/8"-24, G8

8шт.

A12843

PACKAGE

KIT - lining, for 1 shoe

2шт.
