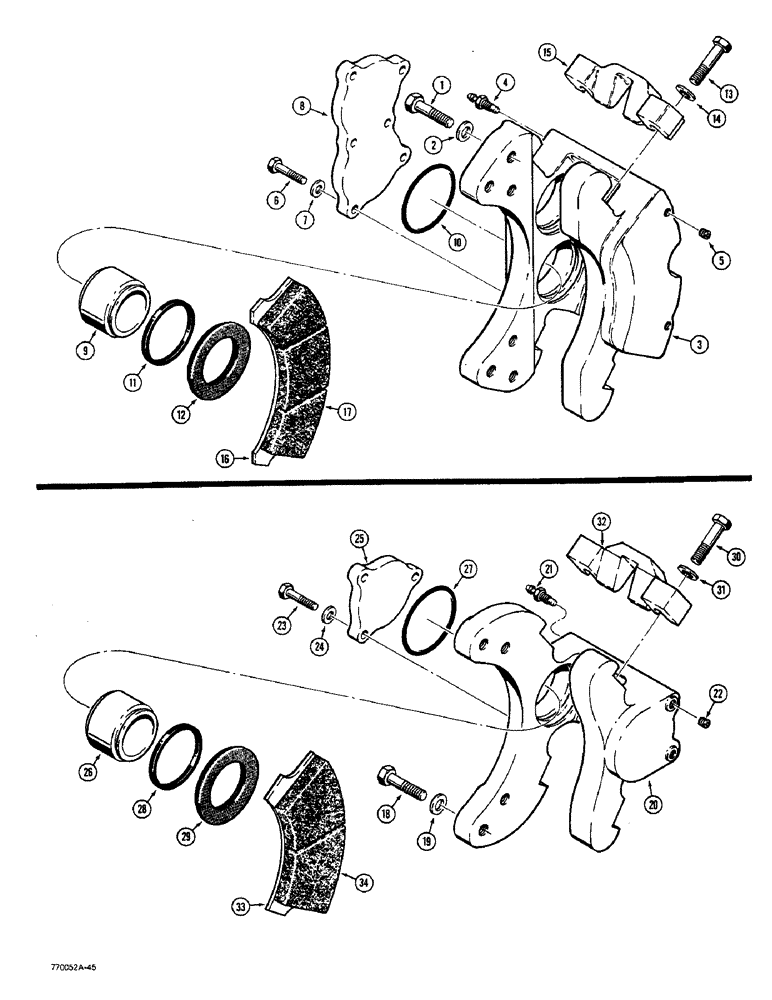

Запчасти Case W36 (7-310) - DISC BRAKE CALIPERS, ROCKWELL AXLES (07) - BRAKES

1

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

24шт.

2

L36067

WASHER

- hardened

24шт.

D77374

CALIPER

S - brake, four piston, Includes: Ref. 3 - 17

4шт.

3

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

4

L31647

BLEED SCREW

VALVE - bleeder

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8" NPT

6шт.

6

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" - 13 NC x 1-3/4", grade 8

6шт.

7

D47366

WASHER

- hardened

6шт.

8

D77484

COVER ASSY

COVER - piston

1шт.

9

D77479

PISTON ASSY.

PISTON - brake

4шт.

D77478

KIT

- seal, brake caliper, Includes: Ref. 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

2шт.

12

NSS

NOT SOLD SEPARAT

COVER - rubber

2шт.

13

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

4шт.

14

L30737

WASHER

- hardened

4шт.

15

D77482

RETAINER

- brake shoe

2шт.

D77483

KIT

- brake shoe and lining, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

17

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

18

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

two piston calipers Hex, 3/4"-10 x 2 1/4", G8

8шт.

19

L36067

WASHER

- hardened, two piston calipers

8шт.

D77373

BRAKE ASSY.

CALIPERS - brake, two piston, Includes: Ref. 20 - 34

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - caliper, two piston

1шт.

21

L31647

BLEED SCREW

VALVE - bleeder, two piston calipers

1шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8" NPT, two piston calipers

6шт.

23

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" - 13 NC x 1-3/4", two piston calipers

3шт.

24

D47366

WASHER

- hardened, two piston calipers

3шт.

25

D77481

COVER

- piston, two calipers

1шт.

26

D77479

PISTON ASSY.

PISTON - brake, two calipers

2шт.

D77478

KIT

- seal, brake caliper, two piston, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - piston, two calipers

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - piston, two calipers

2шт.

29

NSS

NOT SOLD SEPARAT

COVER - rubber, two piston calipers

2шт.

30

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, two piston calipers

4шт.

31

L30737

WASHER

- hardened, two piston calipers

4шт.

32

D77482

RETAINER

- brake shoe, two piston calipers

2шт.

D77480

KIT

- brake shoe and lining, two piston calipers, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

SHOE - brake, two piston calipers

2шт.

34

NSS

NOT SOLD SEPARAT

LINING - brake, two piston calipers

2шт.
