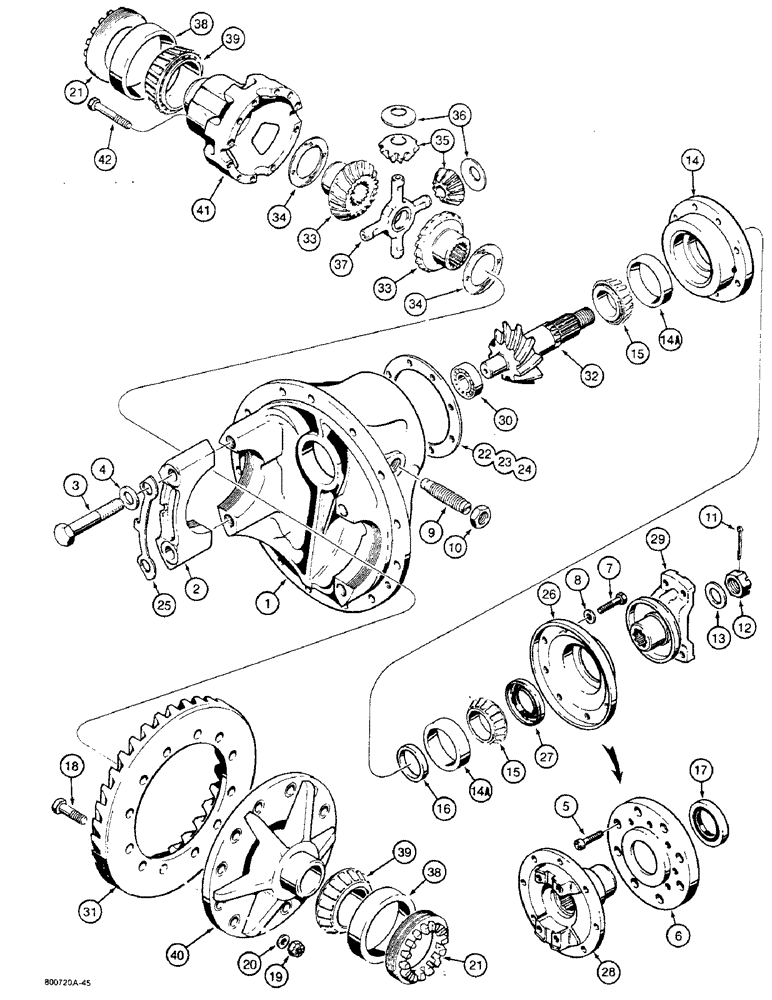

Запчасти Case W36 (6-304) - GKN L79467 FRONT AXLE AND L79468 REAR AXLE, DIFFERENTIAL (06) - POWER TRAIN

L79467

AXLE HOUSING

AXLE ASSEMBLY - complete, front, GKN RP32.23HN-12306-00307, see Fig. 6-300, Includes: Ref. 1 - 42

1шт.

L79468

AXLE HOUSING

AXLE ASSEMBLY - complete, rear, GKN RP32.23HN-12307-00308, see Fig. 6-300, Includes: Ref. 1 - 42

1шт.

N6203

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - axle, front, Includes: Ref. 1 - 42

1шт.

N6202

DIFFERENTIAL

ASSEMBLY - axle, rear, Includes: Ref. 1 - 42

1шт.

N6210

CAGE

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

3

826-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

- special

4шт.

4

D80556

WASHER

- special

4шт.

5

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

SOCKET HEAD CAP SCREW - M12 x 1.75 x 60, used on front differential only

8шт.

6

N6254

PLATE

- anchor, used on front differential

1шт.

7

514-811

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- pinion bearing cage, used on rear differential only

8шт.

8

D74508

WASHER

- used on rear differential only

8шт.

9

N6213

SCREW,M22 x 2.5 x 2.5mm

- through

1шт.

10

N6255

LOCK NUT

- lock

1шт.

11

632-136

COTTER PIN,M3.2 x 50

- 3 mm x 50 mm

1шт.

12

N6256

NUT

NUT - pinion

1шт.

13

N6257

WASHER

- yoke

1шт.

N7050

CAGE ASSY.

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

14a

NSS

NOT SOLD SEPARAT

CUP - bearing

2шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing

2шт.

16

N6217

KIT

SPACER KIT - includes (8) spacers

1шт.

17

N6265

OIL SEAL

- coupling

1шт.

18

514-1003

BOLT

BOLT - special

12шт.

19

N6258

WASHER

NUT - special

12шт.

20

N6259

WASHER

- flat, M16

12шт.

21

N6219

RING

- bearing adjustment

2шт.

22

N6220

SHIM,.254mm Thk

(.010") .254mm Thk

1шт.

23

N6221

SHIM,.127mm Thk

(.005") .127mm Thk

1шт.

24

N6222

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

25

N6223

LARGE PLATE

PLATE - lock

2шт.

N6218

RETAINER

ASSEMBLY - oil seal, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

27

N6265

OIL SEAL

- coupling

1шт.

28

N6267

COUPLING

ASSEMBLY - flange yoke, front

1шт.

29

N6266

COUPLING FLANGE

COUPLING ASSEMBLY - flange yoke, rear

1шт.

N6250

GEAR-SET

GEAR SET ASSEMBLY - front and rear differential, Includes: Ref. 30 - 32

1шт.

30

A15438

BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"

BEARING - pinion

1шт.

N6269

GEAR-SET

GEAR AND PINION - differential

1шт.

31

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

32

NSS

NOT SOLD SEPARAT

PINION SHAFT - differential

1шт.

N6242

CASE ASSY.

CASE ASSEMBLY - front and rear differential, Includes: Ref. 33 - 42

1шт.

33

N6245

GEAR

- differential side

2шт.

34

N6246

WASHER

THRUST WASHER - side gear

2шт.

35

N6247

PINION

- differential gear

4шт.

36

N6248

WASHER

THRUST WASHER - pinion gear

4шт.

37

N6249

SPIDER ASSY.

SPIDER - differential

1шт.

N6250 - Ring gear has 37 teeth - pinnion has 8 teeth. Per NAPO Purchasiing

1шт.

38

A7892

BEARING, CUP

CUP - bearing

2шт.

39

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing

2шт.

N6268

DIFFERENTIAL

CASE ASSEMBLY - differential, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

41

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

42

514-902

BOLT,Hex, M14 x 2 x 120mm, Cl 10.9

- differential, case

12шт.
