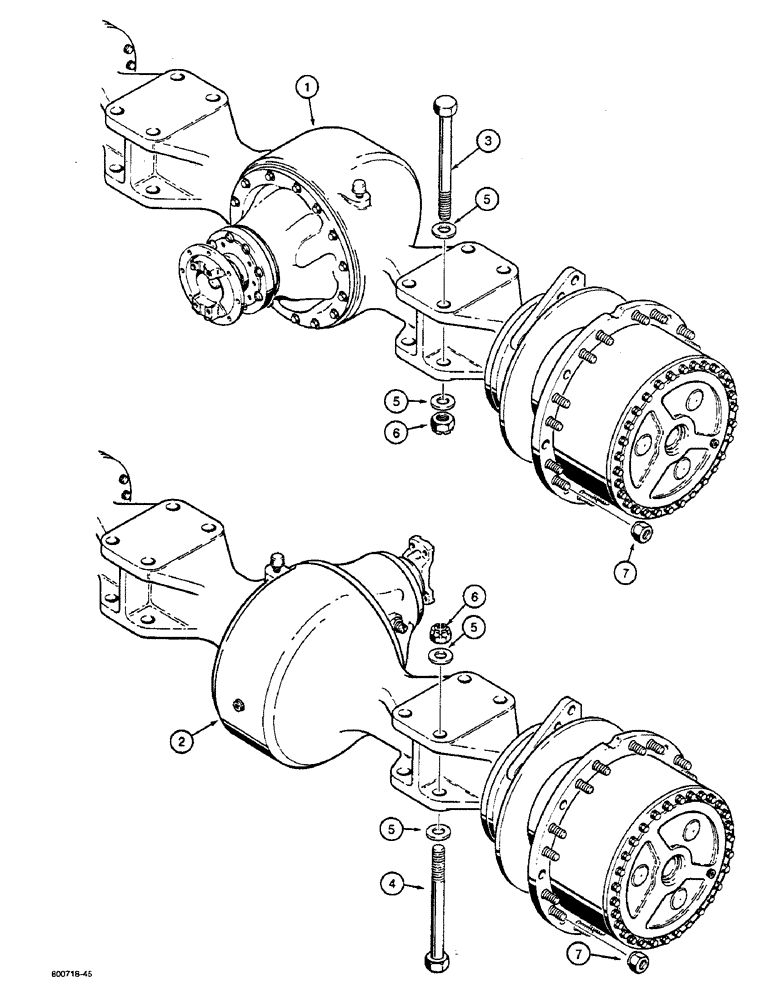

Запчасти Case W36 (6-300) - GKN AXLES AND MOUNTING (06) - POWER TRAIN

1

L79467

AXLE HOUSING

AXLE - front, GKN - RP32.23H-12306-00307, parts list Figs. 6-302 and 6-304

1шт.

2

L79468

AXLE HOUSING

AXLE - rear, GKN - RP32.23H-12307-00308, parts list Figs. 6-302 and 6-304

1шт.

3

116-1000

SCREW,Hex, 1 1/4" - 12 x 12 1/2", Gr 8

BOLT - hex head, 1-1/4" - 12 NF x 12-1/2", front axle

8шт.

4

116-1002

BOLT,Hex, 1-1/4" - 12 x 13", Gr 8

- hex head, 1-1/4" - 12 NF x 13", rear axle

8шт.

5

L79178

WASHER

- 1-1/4", hardened

32шт.

6

131-190

LOCK NUT,1 1/4"-12, GB

NUT - hex, self-locking, 1-1/4" - 12 NF

16шт.

7

A12522

WHEEL NUT

- wheel, 3/4"

64шт.
