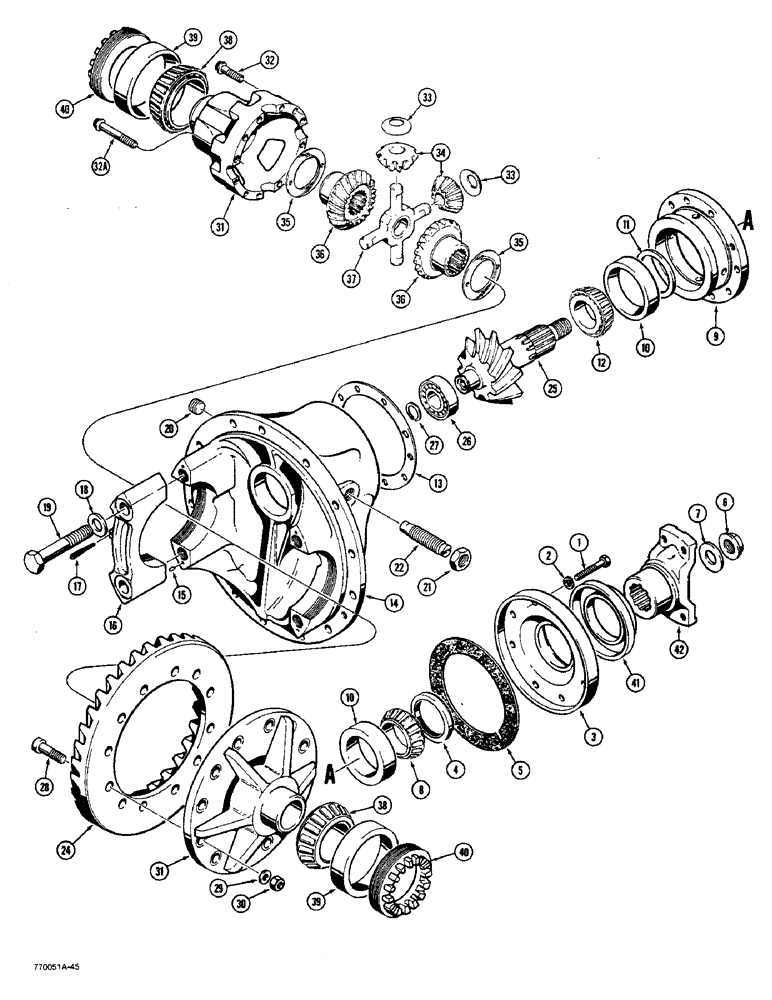

Запчасти Case W36 (6-296) - ROCKWELL REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - rear, see Fig. 6-282, Includes: Ref. 1 - 42

1шт.

D77376

DIFFERENTIAL

ASSEMBLY - rear axle, Includes: Ref. 1 - 42

1шт.

1

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

2

92-8

LOCK WASHER,1/2"

8шт.

3

A15470

COVER

- pinion, Includes: Ref. 4

1шт.

4

T39338

OIL SEAL

- pinion cover

1шт.

5

A15461

GASKET

- cover

1шт.

6

L35921

FLANGE NUT

- special

1шт.

7

S113914

WASHER

- special

1шт.

8

A15435

ROLLER BEARING,2.125" ID x 1.3085"

CONE - bearing

1шт.

A15468

CAGE

ASSEMBLY - pinion, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

CAGE - pinion

1шт.

10

A15437

BEARING, CUP,63.525 mm ID x 140.055 mm OD x 23.52, 36.71 mm

CUP - bearing

2шт.

11

A15448

SPACER

- .220" (5.58 mm)

1шт.

11

A15449

SPACER

- .221" (5.61 mm)

1шт.

11

A15450

SPACER

- .222" (5.63 mm)

1шт.

11

A15451

SPACER

- .223" (5.66 mm)

1шт.

11

A15452

SPACER

- .224" (5.68 mm)

1шт.

11

A15453

SPACER

- .225" (5.71 mm)

1шт.

11

A15454

SPACER

- .231" (5.86 mm)

1шт.

11

A15455

SPACER

- .237" (6.01 mm)

1шт.

11

A15456

SPACER

- .243" (6.17 mm)

1шт.

12

A15436

ROLLER BEARING,2.25" ID x 1.3085"

CONE - bearing

1шт.

13

A15445

SHIM

- .005" (.13 mm)

1шт.

13

A15446

SHIM

- .010" (.25 mm)

1шт.

13

A15459

SHIM

- .003" (.08 mm)

1шт.

L31600

CARRIER

ASSEMBLY - axle, Includes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - carrier

1шт.

15

A15443

DOWEL

PIN - carrier

4шт.

16

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

17

A18196

HARDWARE

COTTER PIN - cap

2шт.

18

A16782

WASHER

- special

4шт.

19

26-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- hex head, 7/8" - 9 NC x 5-1/2"

4шт.

20

221-845

PLUG,Hex Soc, 3/4"-14

- square socket head, 3/4" NPT

1шт.

21

A15428

NUT

- special

1шт.

22

L31659

BOLT,7/8" x 3 5/8"

SCREW - special

1шт.

23

RESERVED

1шт.

N6298

GEAR-SET

GEAR AND PINION - differential, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

25

NSS

NOT SOLD SEPARAT

PINION GEAR - differential

1шт.

26

A15438

BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"

BEARING - pinion

1шт.

27

A15442

LOCK

SNAP RING - bearing retaining

1шт.

28

L34059

BOLT

- special

12шт.

29

S113914

WASHER

- special

12шт.

30

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF

12шт.

L32865

DIFFERENTIAL

CASE ASSEMBLY - differential, Includes: Ref. 31 - 38

1шт.

31

L32863

SHAFT, PLANETARY CAR

CASE SET - differential

1шт.

32

L34063

BOLT

- short

4шт.

32a

L35918

SCREW,12 Pt Hd, 1/2" - 13 x 3.50", Gr 8

BOLT - long

8шт.

33

A15440

WASHER

THRUST WASHER - differential

4шт.

34

A15462

GEAR

PINION GEAR - differential

4шт.

35

A15439

WASHER

THRUST WASHER - side gear

2шт.

36

A15463

GEAR

SIDE GEAR - differential

2шт.

37

A15471

U-JOINT SPIDER

SPIDER - differential

1шт.

38

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing

2шт.

39

A15434

CUP

- bearing

2шт.

40

A15465

RING

- adjusting

2шт.

41

A15464

SLINGER

DEFLECTOR - yoke

1шт.

42

L31606

JAW

YOKE - drive shaft

1шт.
