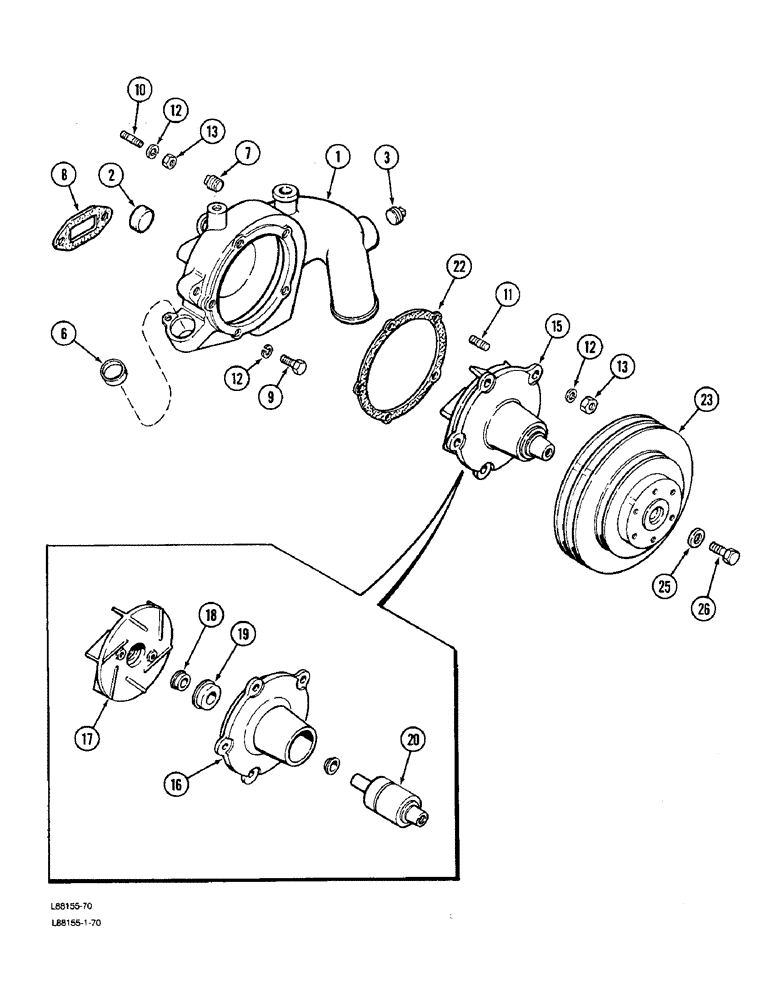

Запчасти Case W36 (2-14) - WATER PUMP, WITH TAPPED SHAFT, 504BDTI ENGINE (02) - ENGINE

1

A150683

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8 inch

1шт.

3

221-1016

DRAIN PLUG,Sq Hd, 1"-11 1/2 NPTF

PLUG - square head, 1 inch PT

2шт.

6

41-1022

PLUG,Cup, 1 3/8"

- oil cooler port

1шт.

7

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2 inch

1шт.

8

A58649

GASKET

-, Serial Range: body-block

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

10

A59077

STUD

- body to block, 3/8 NC x 1-13/16 inch

4шт.

11

A166044

STUD

- pump to body, 3/8 NC x 1-7/16 inch

5шт.

12

492-11038

LOCK WASHER,3/8"

9шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

15

A157146

PUMP

ASSEMBLY - water, new, Includes: Ref. 15 - 20

1шт.

15

A48370

REMAN-WATER PUMP

PUMP KIT - water, remanufactured (Includes Ref. 22)

1шт.

15

A48337

CORE-WATER PUMP

RETURN NUMBER - Use this part number to retrn water pump core for credit

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - pump body

1шт.

17

A166282

IMPELLER

- cast iron (Replaces A155273)

1шт.

18

A166280

SEAT

- impeller (Replaces A34000) (Also order A166281)

1шт.

19

A166281

SEAL

- pump shaft (Replaces A142499) (Also order A166280)

1шт.

20

A156995

BEARING

ASSEMBLY - with shaft

1шт.

22

A76656

GASKET

-, Serial Range: pump-body

1шт.

23

A139410

PULLEY

- water pump

1шт.

25

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - flat, 33/64 x 1-1/16 x 11/32 inch

1шт.

26

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- hex, 1/2 NF x 1-1/4 inch

1шт.
