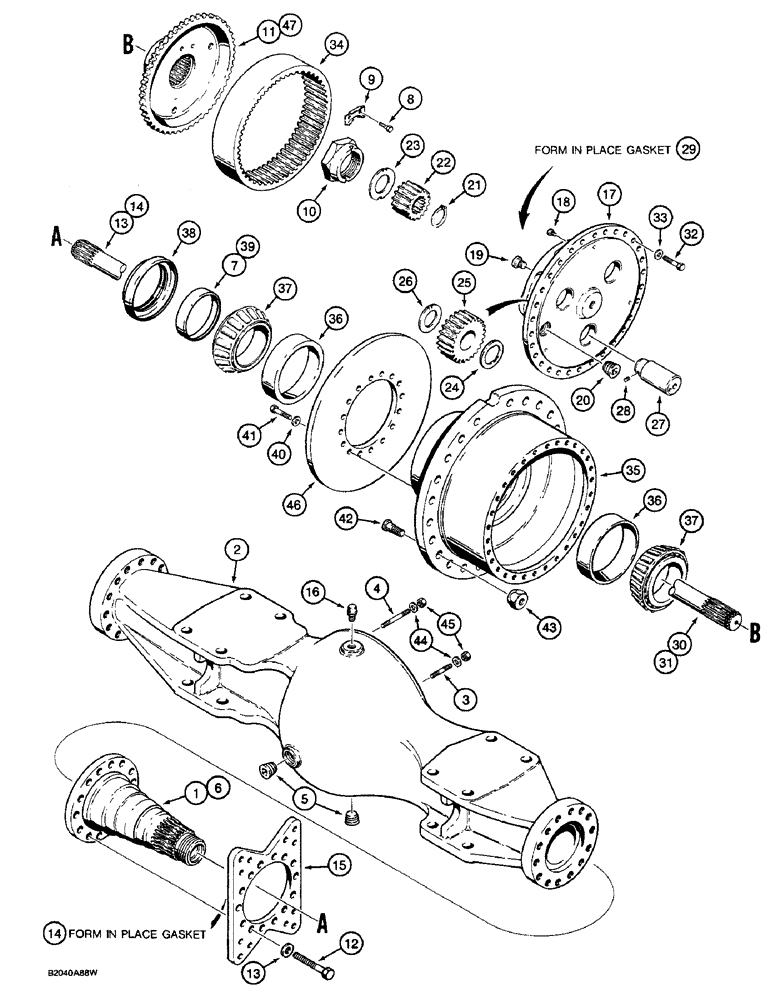

Запчасти Case W36 (6-288) - REPAIR ONLY - ROCKWELL FRONT AND REAR AXLE, HOUSING AND PLANETARY (06) - POWER TRAIN

L109690

CENTER AXLE

AXLE - front, service axle only, PRC-1314-RHD-200, if used, Includes: Ref. 1 - 47

1шт.

L109691

AXLE

- rear, service axle only, PRC-1314-RHD-201, if used, Includes: Ref. 1 - 47

1шт.

N13278

HOUSING

ASSEMBLY - axle, Includes: Ref. 1 - 15

1шт.

1

REF

INSTRUCTION

SPINDLE - axle, 39 tooth spline, no longer available, order N13060 kit

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

3

L30676

STUD

- short

10шт.

4

L30677

STUD

- long

4шт.

5

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" NPT

2шт.

N13060

SPINDLE

KIT - spindle, axle, 81 tooth spline, Includes: Ref. 6 - 11

2шт.

6

N13279

SPINDLE

- axle

1шт.

7

N13280

HOUSING

SLEEVE - spindle

1шт.

8

26-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex head, 3/8" - 16 NC x 5/8", grade 8

2шт.

9

N8239

KIT

LOCK - hub nut

1шт.

10

L36120

BEARING LOCK NUT

- hub retaining

1шт.

11

N8238

HUB

GEAR - hub, planetary, 81 tooth internal spline

1шт.

12

26-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

- hex head, 7/8" - 9 NC x 3-1/4", grade 8

28шт.

13

S104953

WASHER

- special

28шт.

14

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (88 ML)

1шт.

15

N7606

ADAPTER

PLATE - spindle

2шт.

16

A12928

BREATHER

- oil, axle

1шт.

N8237

SPIDER ASSY.

SPIDER ASSEMBLY - planetary, Includes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

18

L36117

BUTTON

- throughst, spider assembly

3шт.

19

A12980

BUTTON

- throughst, axle

1шт.

20

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT, magnetic

2шт.

21

D77076

RING, SNAP

SNAP RING - axle shaft

2шт.

22

S98312

GEAR

SUN GEAR - planetary

2шт.

23

N8241

WASHER

- sun gear

2шт.

24

N8242

WASHER

THRUST WASHER - pinion gear, outer

6шт.

25

D77367

GEAR

PINION GEAR - planetary

6шт.

26

D77074

WASHER

THRUST WASHER - pinion gear, inner

6шт.

27

N8240

SHAFT

- planetary pinion gear

6шт.

28

N7103

STUD

SET SCREW - pinion shaft

6шт.

29

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (88 ML)

2шт.

30

D77070

SHAFT

- long, 51-9/16" (1311 mm) long

1шт.

31

D77069

SHAFT

- short, 49-5/16" (1253 mm) long

1шт.

32

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

60шт.

33

D47366

WASHER

- special

60шт.

34

D77368

GEAR

RING GEAR - planetary

2шт.

D80504

HUB ASSEMBLY - wheel, Includes: Ref. 35 and 36

2шт.

35

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

36

L31698

BEARING CUP

CUP - bearing, 7-3/16 OD x 1-15/16 inch wide (183 x 49 mm)

2шт.

37

L31699

TAPERED BEARING

CONE - bearing

4шт.

S222368

SEAL

OIL CONE ASSEMBLY - hub bearing, with sleeve, Includes: Ref. 38 and 39

2шт.

38

NSS

NOT SOLD SEPARAT

OIL SEAL - hub bearing

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

A16783

WASHER

- special

32шт.

41

D80503

BOLT

- hex head, 5/8" - 18 NF x 1-3/4", grade 8

32шт.

42

F30233

WHEEL BOLT

STUD - press in

32шт.

43

A12522

WHEEL NUT

- wheel, 3/4"

64шт.

44

L30678

WASHER

- special

14шт.

45

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF

14шт.

46

D77071

BRAKE

DISC - brake

2шт.

47

D77370

HUB

GEAR - hub, planetary, 39 tooth internal spline, if used

2шт.
