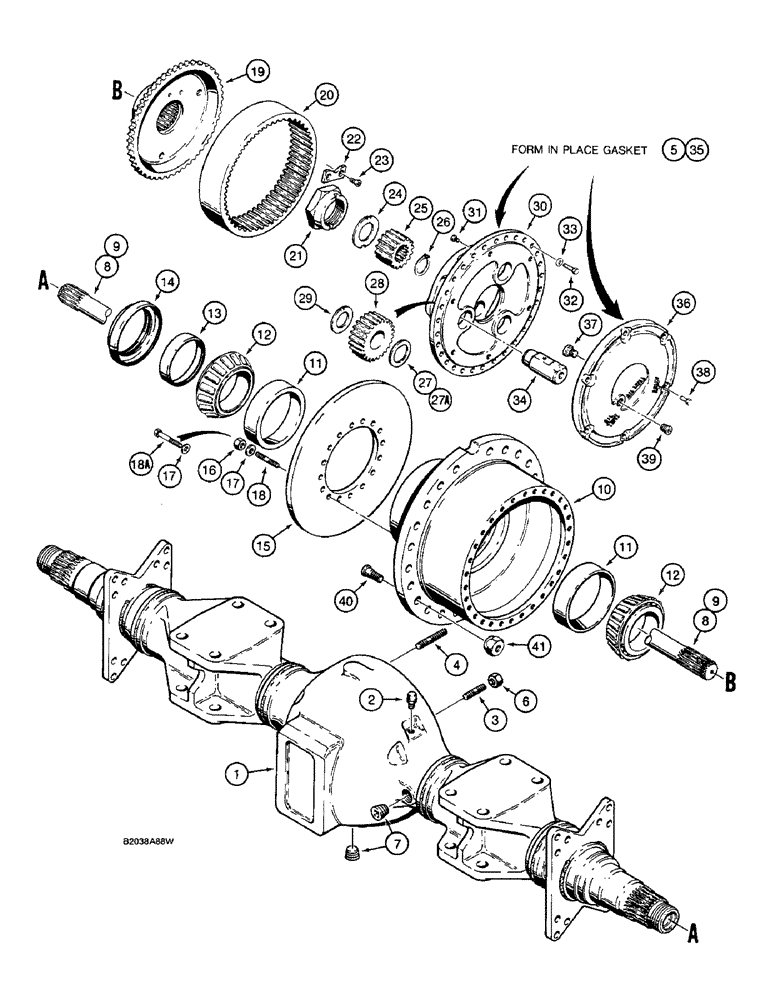

Запчасти Case W36 (6-284) - ORIGINAL EQUIPMENT ROCKWELL FRONT AND REAR AXLE, HOUSING AND PLANETARY (06) - POWER TRAIN

L58309

FRONT AXLE

AXLE ASSEMBLY - front, PRM-1314-RHD-101, if used, Includes: Ref. 1 - 41

1шт.

L79632

AXLE

ASSEMBLY - front, PRM-1314-RHD-105, if used, Includes: Ref. 1 - 41

1шт.

L58310

AXLE

ASSEMBLY - rear, PRM-1314-RHD-100, if used, Includes: Ref. 1 - 41

1шт.

L79631

AXLE, REAR

AXLE ASSEMBLY - rear, PRM-1314-RHD-104, if used, Includes: Ref. 1 - 41

1шт.

1

D77068

HOUSING

- no longer available, order N13278 housing assembly

1шт.

2

A12928

BREATHER

VALVE - inlet and outlet

1шт.

3

L30676

STUD

- short

10шт.

4

L30677

STUD

- long

4шт.

5

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (88 ML)

1шт.

6

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF

14шт.

7

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - square socket head, 1-1/4" NPT

2шт.

8

D77070

SHAFT

- long, 51-9/16" (1311 mm) long

1шт.

9

D77069

SHAFT

- short, 49-5/16" (1253 mm) long

1шт.

D77073

HUB

ASSEMBLY - wheel, used Refs. 16 and 18, order D80504 hub and 16 - D80503 bolts, Includes: Ref. 10 and 11

2шт.

D80504

HUB ASSEMBLY - wheel, uses Ref. 18A, Includes: Ref. 10 and 11

2шт.

10

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

11

L31698

BEARING CUP

CUP - bearing, used on both hubs, 7-3/16 OD x 1-15/16 inch wide (183 x 49 mm)

2шт.

12

L31699

TAPERED BEARING

CONE - bearing

4шт.

S222368

SEAL

SEAL ASSEMBLY - bearing, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

15

D77071

BRAKE

DISC - brake

2шт.

16

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, 5/8" - 18 NF

32шт.

17

L30737

WASHER

- hardened

32шт.

18

F30240

STUD

- 5/8" - 18 NF

32шт.

18a

D80503

BOLT

- hex head, 5/8" - 18 NF x 1-3/4", grade 8

32шт.

19

D77370

HUB

GEAR - planetary

2шт.

20

D77368

GEAR

RING GEAR - hub

2шт.

21

L36120

BEARING LOCK NUT

- hub locking

2шт.

22

N8239

KIT

LOCK - nut

2шт.

23

164-50

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 3/4"

BOLT - hex socket flat head, 3/8" - 16 NC x 3/4", grade 8

4шт.

24

L36118

WASHER

- special

2шт.

25

S98312

GEAR

SUN GEAR - planetary

2шт.

26

D77076

RING, SNAP

SNAP RING - sun gear

2шт.

27

D77075

WASHER

THRUST WASHER - outer, 2-9/32" ID with two internal flats, if used

6шт.

27a

N8242

WASHER

THRUST WASHER - outer, 2-3/8" ID with external tab, if used, not shown

6шт.

28

D77367

GEAR

PINION GEAR - planetary

6шт.

29

D77074

WASHER

THRUST WASHER - inner

6шт.

D77371

SPIDER ASSY.

SPIDER ASSEMBLY - planetary, Includes: Ref. 30 and 31

2шт.

30

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

31

L36117

BUTTON

- through

3шт.

32

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

60шт.

33

D47366

WASHER

- hardened

60шт.

34

N9110

SHAFT

- pinion, also order N8242 outer through washer, Ref. 27

6шт.

35

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (88 ML)

2шт.

D77077

COVER

ASSEMBLY - hub, Includes: Ref. 36 and 37

2шт.

36

NSS

NOT SOLD SEPARAT

COVER - hub

1шт.

37

A12980

BUTTON

- through

1шт.

38

D77072

BOLT

- special

12шт.

39

221-845

PLUG,Hex Soc, 3/4"-14

- square socket head, 3/4" NPT

2шт.

40

F30233

WHEEL BOLT

BOLT - press in

32шт.

41

A12522

WHEEL NUT

- wheel, 3/4"

64шт.
