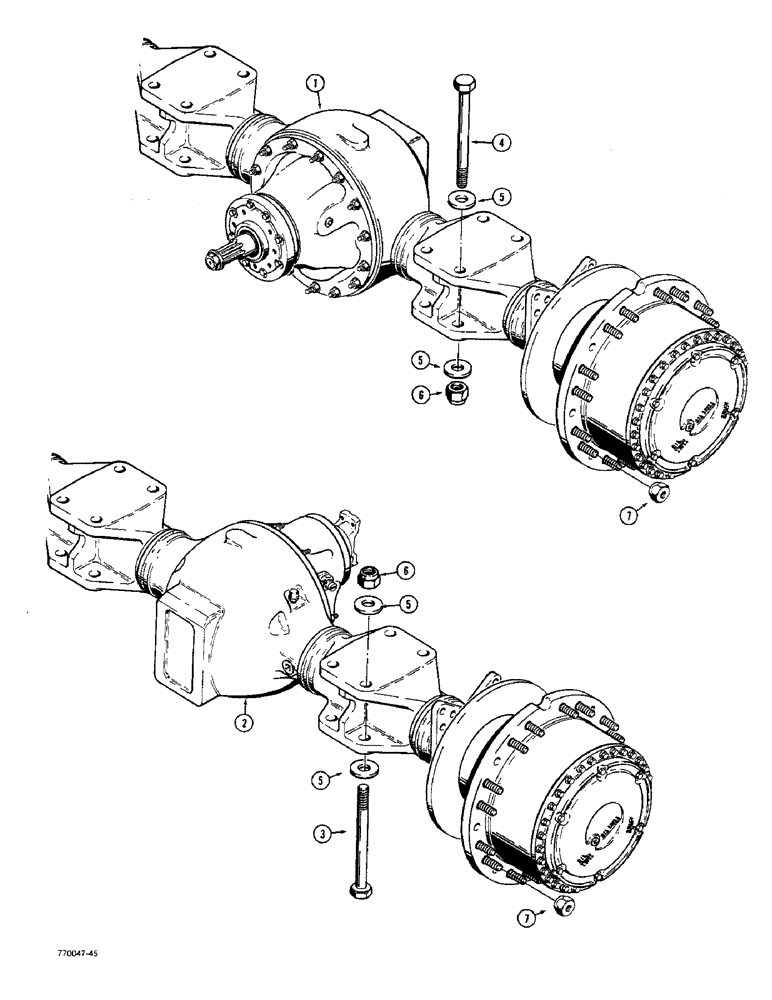

Запчасти Case W36 (6-282) - ROCKWELL AXLES AND MOUNTING (06) - POWER TRAIN

1

L58309

FRONT AXLE

AXLE - front, PRM-1314-RHD-101, parts list Figs. 6-284 and 6-292, if used, Serial Range: -9127225

1шт.

1

L79632

AXLE

- front, PRM-1314-RHD-105, parts list Figs. 6-284 and 6-292, if used, Start Serial: 9127225

1шт.

1

L109690

CENTER AXLE

AXLE - front, service axle only, PRC-1314-RHD-200, parts list Figs. 6-288 and 6-292, and on tractor SN 9140027 - 9140038, if used, Serial Range: -9140013

1шт.

2

L58310

AXLE

- rear, PRM-1314-RHD-100, parts list Figs. 6-284 and 6-296, if used to 9127225

1шт.

2

L79631

AXLE, REAR

AXLE - rear, PRM-1314-RHD-104, parts list Figs. 6-284 and 6-296, if used, Start Serial: 9127225

1шт.

2

L109691

AXLE

- rear, service axle only, PRC-1314-RHD-201, parts list Figs. 6-288 and 6-296, and on tractor SN 9140027 - SN 9140038, if used, Serial Range: -9140013

1шт.

3

116-1001

BOLT - hex head, 1-1/4" - 12 NF x 13-1/2", grade 8, if used

8шт.

3

116-1002

BOLT,Hex, 1-1/4" - 12 x 13", Gr 8

- hex head, 1-1/4" - 12 NF x 13", grade 8, if used

8шт.

4

116-1000

SCREW,Hex, 1 1/4" - 12 x 12 1/2", Gr 8

BOLT - hex head, 1-1/4" - 12 NF x 12-1/2", grade 8

8шт.

5

L79178

WASHER

- hardened

32шт.

6

131-190

LOCK NUT,1 1/4"-12, GB

NUT - hex, self-locking, 1-1/4" - 12 NF

16шт.

7

A12522

WHEEL NUT

- wheel, 3/4"

64шт.
