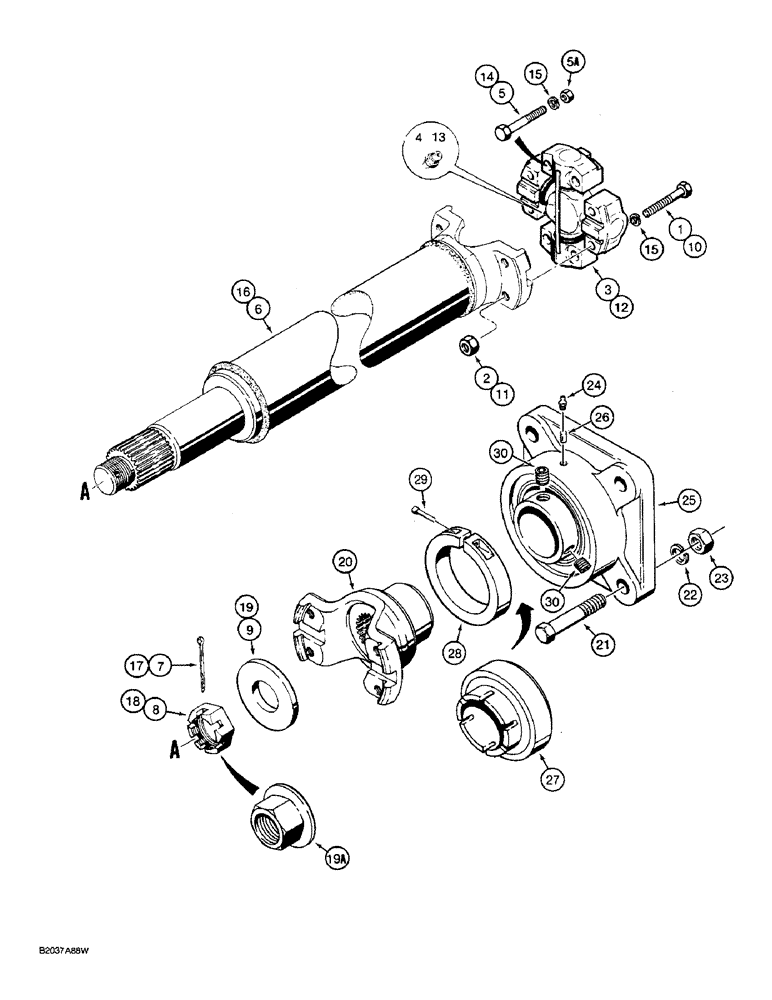

Запчасти Case W36 (6-280) - L58243 FRONT AXLE DRIVE SHIFT USED WITH CLARK TRANSMISSION NOS.13.1HR28421-17 AND -18 (06) - POWER TRAIN

L58243

SHAFT

DRIVE SHAFT - front, 31-1/2" overall length, Includes: Ref. 1 - 6

1шт.

Used with Clark transmission 13.1HR28421-17 and -18

1шт.

1

L31788

BOLT

- special

4шт.

2

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 20 NF

4шт.

N8811

KIT

- repair, Includes: Ref. 3 - 5A

1шт.

3

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

5

L31788

BOLT

- special

8шт.

5a

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 20 NF

8шт.

6

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - axle end

1шт.

7

132-59

PIN

COTTER PIN - 1/8" x 2-1/2"

1шт.

8

L33629

SPECIAL NUT

- special

1шт.

9

D28266

WASHER

- hardened

1шт.

L118261

SHAFT

DRIVE SHAFT - front, 32-1/2" overall length, L118261 front axle used with clark transmission numbers 13.HR32423-1 and-2, Includes: Ref. 10 - 16

1шт.

Used with Clark transmission nos. 13.1HR32423-1 and -2

1шт.

10

L31788

BOLT

- special, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

4шт.

11

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 20 NF, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

4шт.

N9216

CROSS

KIT - repair, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

1шт.

14

114-425

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex, 1/2" - 20 NF x 2-1/4", plated, grade 8, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

8шт.

15

192-63

LOCK WASHER,1/2"

if used, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2 1/2"

8шт.

16

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - axle end, L118261 front drive shaft used with clark transmission numbers 13.HR32423-1 and-2

1шт.

17

132-59

PIN

COTTER PIN - 1/8" x 2-1/2", if used, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

1шт.

18

L33629

SPECIAL NUT

- special, if used, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

1шт.

19

D28266

WASHER

- hardened, if used, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

1шт.

19a

N9217

FLANGE NUT

NUT - hex, flange, 1-1/4" - 18 NF, if used, L118261 front axle drive shaft used with clark transmission numbers 13.HR32423-1 and-2

1шт.

20

L58244

YOKE

- splined, drive shaft to center bearing, L106306

1шт.

21

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

L106406 drive shaft support bearing Hex, 5/8"-11 x 2", G5

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , L106406 Drive shaft support bearing 5/8"

4шт.

23

25-1010

NUT,5/8"-11, G5

L106406 Drive shaft support bearing 5/8"-11, G5

4шт.

L106406

FLANGED BEARING

BEARING support, drive shaft, uses set screws, L106406 drive shaft, Includes: Ref. 24 - 30

1шт.

Original production bearings may have holes for set screws, item 30, instead of slots.

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, L106406 drive shaft support bearing

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots, L106406 drive shaft support

1шт.

26

L35005

PIN

- lock, L106406 drive shaft support bearing

1шт.

N7358

BEARING ASSY

KIT - repair, bearing and collar, converts from set screws to collar arrangement, L106406 drive shaft support, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - center bearing, L106406 drive shaft support

1шт.

28

NSS

NOT SOLD SEPARAT

COLLAR - bearing, if used, L106406 drive shaft support

1шт.

29

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1", if used, L106406 drive shaft support bearing

1шт.

30

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

- 3/8" - 24 NF x 5/16", if used, L106406 drive shaft support bearing

2шт.

L58243

SHAFT

DRIVE SHAFT, used with Clark transmission 13.1HR421-20, L106406 support bearing

1шт.
