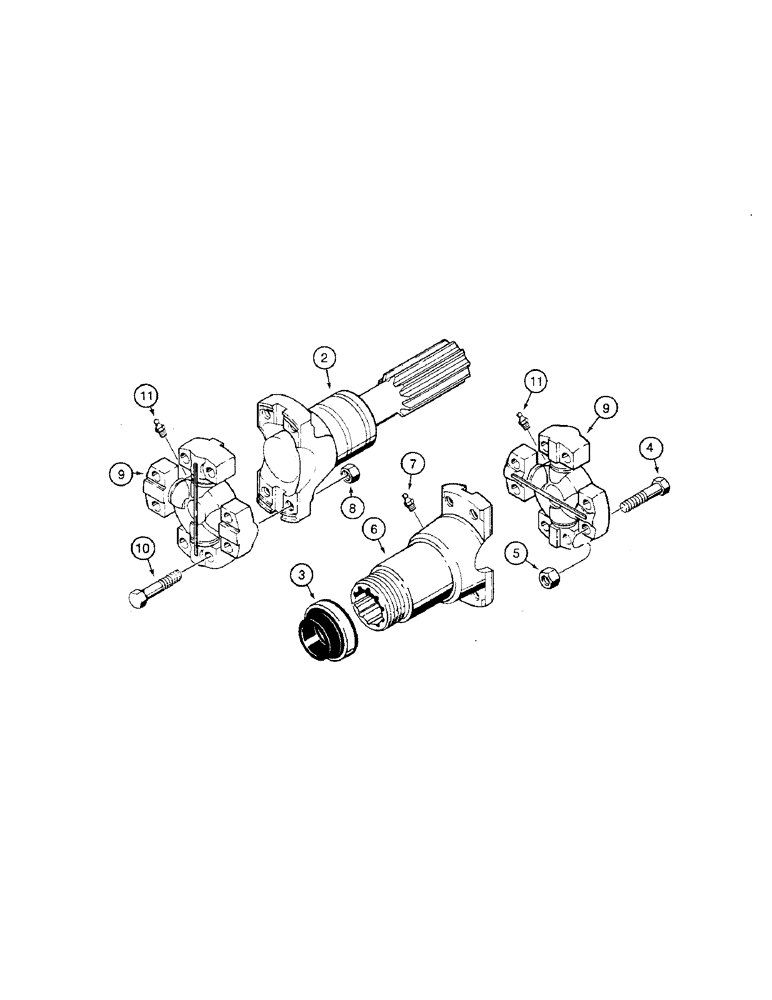

Запчасти Case W36 (6-278) - L118263 REAR AXLE DRIVE SHAFT,USED WITH CLARK TRANSMISSION NOS. 13.1HR32423-1 AND -2 (06) - POWER TRAIN

1

L118263

DRIVE SHAFT

- rear, not shown, Includes: Ref. 2 - 11

1шт.

2

N8810

YOKE

- splined, at axle end

1шт.

3

N8812

SEAL

- dust cap

1шт.

4

L31788

BOLT

- special

8шт.

5

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 20 NF

8шт.

6

L31789

YOKE

- slip, at transmission end

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

N9216

CROSS

KIT - repair, Includes: Ref. 8 - 11

2шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, self-locking, 1/2" - 13 NC

8шт.

9

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

10

114-425

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex, 1/2" - 20 NF x 2-1/4, plated, grade 8

8шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.
