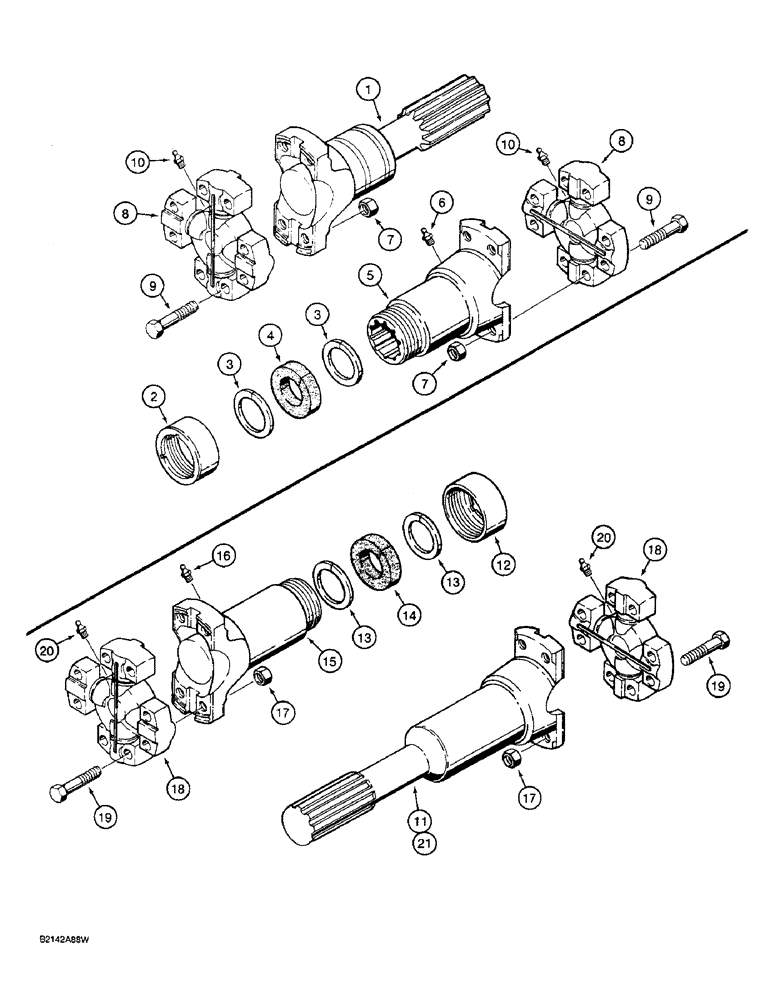

Запчасти Case W36 (6-276) - REAR AXLE DRIVE SHAFT USED WITH CLARK TRANSMISSION NOS. 13.1HR28421-17 AND -18 (06) - POWER TRAIN

L54455

SHAFT

DRIVE SHAFT - rear, Includes: Ref. 1 - 10

1шт.

1

L33842

FORK

YOKE - splined, at axle end

1шт.

L32434

KIT

- dust cap, Includes: Ref. 2 - 4

1шт.

2

L31790

DUST CAP

CAP - dust

1шт.

3

L31792

WASHER

RING - retaining

2шт.

4

L31791

WASHER

- felt

1шт.

5

L31789

YOKE

- slip, at transmission end

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

L31782

BALL JOINT

KIT - repair, Includes: Ref. 7 - 10

2шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 20 NF

8шт.

8

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

9

L31788

BOLT

- special

8шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

L58242

FORK

DRIVE SHAFT - center, if a complete drive shaft is required for use with 13.1HR28421-20 Clark transmission, L116303 yoke must be purchased in addition to L58242 driveshaft, used with clark numbers 13.1HR28421-17, -18 and -20, Includes: Ref. 11 - 20

1шт.

11

D76963

YOKE

- splined, center bearing end, used with 13.1HR28421-17 and -18 Clark transmissions only

1шт.

L32434

KIT

- dust cap, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20, Includes: Ref. 12 - 14

1шт.

12

L31790

DUST CAP

CAP - dust, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

1шт.

13

L31792

WASHER

RING - retaining, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

2шт.

14

L31791

WASHER

- felt, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

1шт.

15

D76962

YOKE

- slip, transmission end, center drive shaft, used with clark numbers 13.HR28421-17, -18 and -20

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

1шт.

L31782

BALL JOINT

KIT - repair, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20, Includes: Ref. 17 - 20

2шт.

17

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 20 NF, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

8шт.

18

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, center, used with clark transmission numbers 13.HR28421-17, -18 and -20

1шт.

19

L31788

BOLT

- special, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, center drive shaft, used with clark transmission numbers 13.HR28421-17, -18 and -20

2шт.

21

L116303

FORK

YOKE - splined, center bearing end, used with 13.1HR28421-20 Clark transmission only

1шт.
