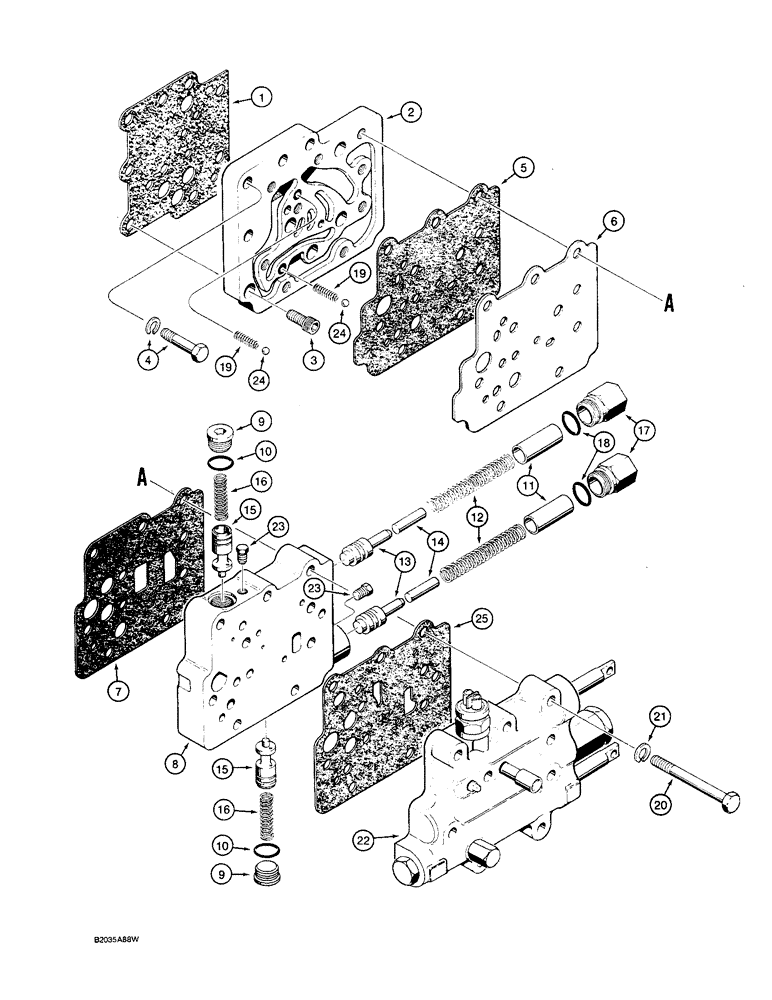

Запчасти Case W36 (6-272) - TRANSMISSION, ADAPTER HOUSING, MODULATOR VALVE, AND CONTROL VALVE (06) - POWER TRAIN

1

D76997

GASKET

- valve adapter

1шт.

2

D77377

HOUSING

ADAPTER - modulator valve

1шт.

3

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

BOLT - hex socket head, 3/8" - 16 NC x 3/4"

5шт.

4

NLS

NO LONGER SERVICED

BOLT AND WASHER - special

4шт.

5

D80322

GASKET

- valve

1шт.

6

N6816

LARGE PLATE

PLATE - adapter

1шт.

7

D76972

GASKET

- valve

1шт.

D76976

VALVE

- modulator, Includes: Ref. 8 - 18

1шт.

REF.7 - D76972 IS SUBBED TO 193468A1, THIS IS INCORRECT PER CLARK. DO NOT ORDER 193468A1, NEED TO ORDER D76972.

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

9

86625138

PLUG,7/18" - 14

Includes Ref. 10 Hex Soc, 7/8"-14 ORB

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

11

D76982

SPRING

- outer

2шт.

12

D76975

SPRING

- inner

2шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

14

D78315

PIN

- guide

2шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - regulator

2шт.

16

N8547

SPRING

- regulator

2шт.

17

D78314

PLUG

- regulator spool

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

19

L33549

SPRING

- forward and reverse spool

2шт.

20

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex head, 3/8" - 16 NC x 3-3/4"

9шт.

21

92-6

LOCK WASHER,3/8"

9шт.

22

N9971

HOUSING

CONTROL VALVE - parts list Fig. 6-274

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- hex head

2шт.

24

211-210

BALL,3/8" Dia

- steel, 3/8"

2шт.

25

D77001

GASKET

- valve

1шт.
