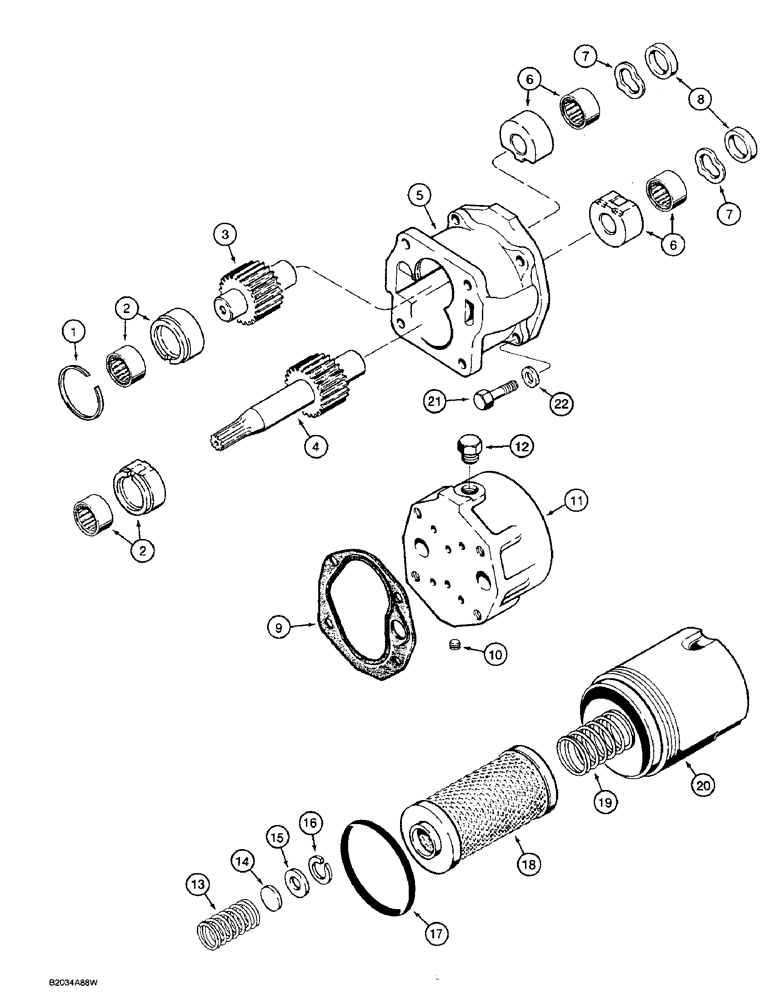

Запчасти Case W36 (6-270) - TRANSMISSION, CHARGING PUMP AND FILTER (06) - POWER TRAIN

D77014

PUMP

ASSEMBLY - transmission charging, with filter, Includes: Ref. 1 - 22

1шт.

D77005

PUMP

ASSEMBLY - transmission charging, Includes: Ref. 1 - 8

1шт.

1

S300135

RING, SNAP

RING - retaining, pump body

1шт.

2

S300130

PLATE

BEARING ASSEMBLY - with through plate, valve end

2шт.

3

S300131

SHAFT

GEAR - driven, pump

1шт.

4

S300133

SHAFT

GEAR - drive, pump, splined

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

6

S300132

PLATE

BEARING ASSEMBLY - with through plate, filter end

2шт.

7

D73734

SPRING

- wave

2шт.

8

D73735

RING

SEAL - gear shaft

2шт.

9

L33566

GASKET

-, Serial Range: pump-filter

1шт.

10

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16" NPT

1шт.

11

D73733

ADAPTER

- filter

1шт.

12

221-841

PLUG

- hex head, 1/4" NPT

1шт.

13

L33571

VALVE SPRING

SPRING - bypass

1шт.

14

L33572

DISC

- bypass

1шт.

15

L33573

SEAT

- bypass

1шт.

16

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , seat 1.06", Int, #106

1шт.

D52932

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 17 and 18

1шт.

17

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- filter

1шт.

18

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

19

L33570

SPRING

- filter

1шт.

20

L33569

HOUSING

COVER - filter

1шт.

21

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

22

92-7

LOCK WASHER,7/16"

4шт.
