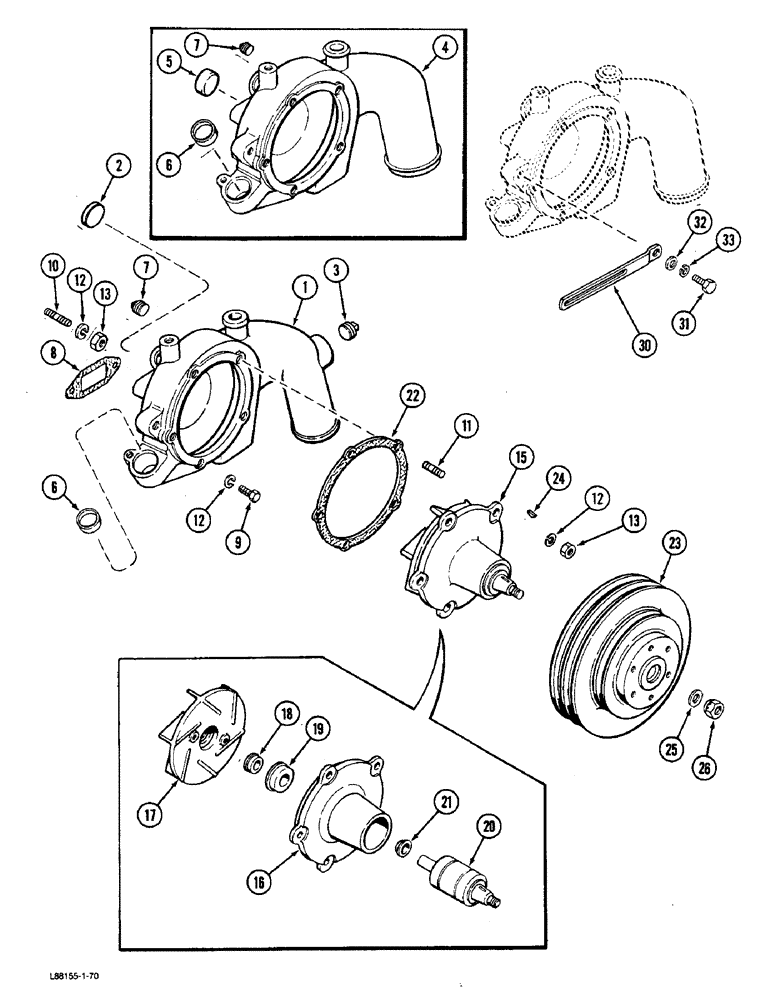

Запчасти Case W36 (2-12) - WATER PUMP, WITH KEYWAY SHAFT, 504BDTI ENGINE (02) - ENGINE

1

A150683

HOUSING

BODY ASSEMBLY - water pump (Engine serial no. 10178520 and after), Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- body, rear, cup, 1-1/8 inch

1шт.

3

221-1016

DRAIN PLUG,Sq Hd, 1"-11 1/2 NPTF

PLUG - square head, 1 inch PT

1шт.

4

A76654

BODY

ASSEMBLY - water pump (Prior to engine serial no. 10178520), Includes: Ref. 5

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- body, rear, cup, 1-1/8 inch

1шт.

6

41-1022

PLUG,Cup, 1 3/8"

- oil cooler port, cup, 1-3/8 inch

1шт.

7

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - body, rear, square head, 1/2 inch PT

1шт.

8

A58649

GASKET

-, Serial Range: body-block

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- body gasket flange to block, hex, 3/8 NC x 1-1/4 inch

2шт.

10

A59077

STUD

- body to block, 3/8 NC x 1-13/16 inch

2шт.

11

A166044

STUD

- pump to body, 3/8 NC x 1-5/16 inch

5шт.

12

492-11038

LOCK WASHER,3/8"

9шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

15

A154522

PUMP

ASSEMBLY - water (Order A157146 pump, A155047 washer and 14-820 bolt), Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

17

A76653

SEAL

IMPELLER - water

1шт.

18

A34000

SEAL

SEAT - impeller

1шт.

19

A142499

SEAL

- pump shaft

1шт.

20

A154521

SHAFT

ASSEMBLY - with bearing (Replaces A58643) (Order A155047, A156995, 14-820 for service), Includes: Ref. 21

1шт.

21

CASA29440

SLINGER

- water

1шт.

22

A76656

GASKET

-, Serial Range: pump-body

1шт.

23

A139410

PULLEY

- water pump

1шт.

24

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley #9, 3/16" x 3/4", HT

1шт.

25

A58651

WASHER

- pulley to shaft, 1/2 x 1-1/16 x 3/32 inch

1шт.

26

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley 1/2"-20, GB

1шт.

30

A62429

STRAP

- alternator adjusting

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Strap to body Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

32

95-6

WASHER,3/8"

- 3/8 x 1 x 1/16 inch

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.
