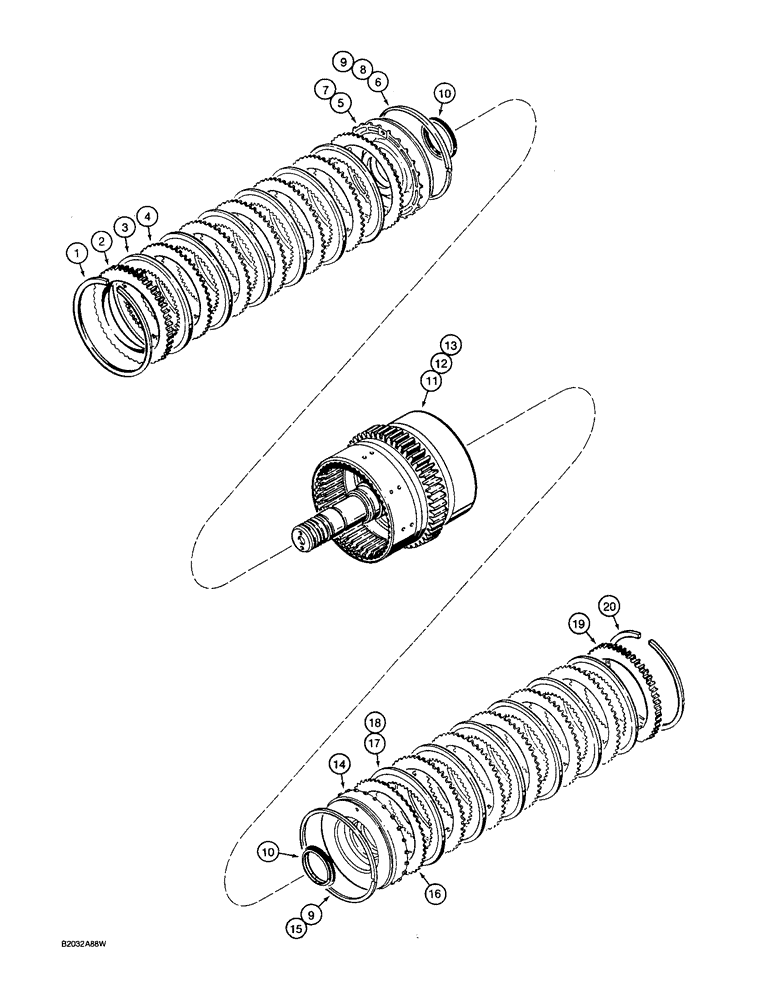

Запчасти Case W36 (6-266) - TRANSMISSION, FORWARD AND SECOND CLUTCH (06) - POWER TRAIN

1

A17918

RING

SNAP RING - clutch plate

1шт.

2

D76979

CLUTCH ASSEMBLY

PLATE - end

1шт.

3

D77063

PLATE ASSY.

DISC - internal tooth

12шт.

4

A17921

DISC

- external tooth

12шт.

5

N14745

PISTON

ASSEMBLY - reverse side, Clark trans. no. 13.1HR28421-18 only, Includes: Ref. 6

1шт.

D83207 kit includes N13958 reverse side piston, D80423 drum and shaft, (2) 49478 rings, and (7) D80421 Belleville springs.

1шт.

6

N14746

SEAL

- lip, Teflon, outer, piston, if used

1шт.

7

N13958

KIT

PISTON ASSEMBLY - reverse side, all Clark trans. except no. 13.1HR28421-18, Includes: Ref. 8

1шт.

8

N14746

SEAL

- lip, Teflon, outer, piston, if used

1шт.

9

A17908

RING

- cast iron, outer, piston, if used

2шт.

10

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner

2шт.

11

D83207

DRUM

SHAFT AND DRUM KIT - Clark trans. no. 13.1HR28421-18 only

1шт.

D83207 kit includes N13958 reverse side piston, D80423 drum and shaft, (2) 49478 rings, and (7) D80421 Belleville springs.

1шт.

12

D80423

SHAFT

AND DRUM - Clark trans. no. 13.1HR28421-17 only

1шт.

13

N8855

DRUM

AND SHAFT - Clark trans. nos. 13.1HR32423-1 and -2

1шт.

14

N13957

PISTON ASSY.

PISTON ASSEMBLY - end, with seal, Includes: Ref. 15

1шт.

15

N13959

SEAL

- lip, Teflon, outer, piston, if used

1шт.

16

A17921

DISC

- external tooth

6шт.

17

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

- internal tooth, Clark trans. nos. 13.1HR28421-17 and -18

6шт.

18

D77063

PLATE ASSY.

DISC - internal tooth, Clark trans. nos. 13.1HR32423-1 and -2

6шт.

19

A17919

PLATE

- end

1шт.

20

A17918

RING

SNAP RING - clutch plate

1шт.
