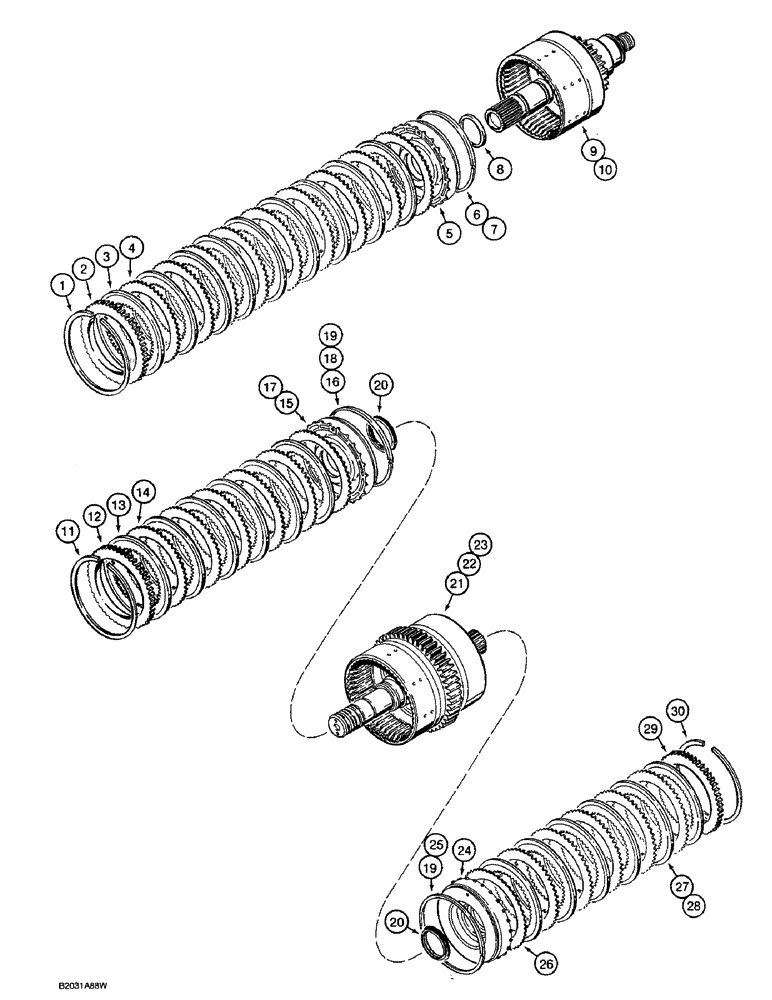

Запчасти Case W36 (6-264) - TRANSMISSION, FIRST, REVERSE AND THIRD CLUTCHES , FIRST CLUTCH (06) - POWER TRAIN

1

A17918

RING

SNAP RING - clutch plate

1шт.

2

A17919

PLATE

- end

1шт.

3

S94326

DISC

- internal spline

9шт.

4

A17921

DISC

- external spline

9шт.

5

N13957

PISTON ASSY.

PISTON ASSEMBLY - clutch, with seal, Includes: Ref. 6

1шт.

6

N13959

SEAL

- lip, Teflon, outer, piston, if used

1шт.

7

A17908

RING

SEAL - cast iron, outer, piston, if used

1шт.

8

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner

1шт.

9

D76998

SHAFT

DRUM AND SHAFT - clutch, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

10

N8856

DRUM

AND SHAFT - clutch, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

11

A17918

RING

SNAP RING - clutch plate, reverse and third

1шт.

12

D76979

CLUTCH ASSEMBLY

PLATE - end, reverse and third

1шт.

13

D77063

PLATE ASSY.

DISC - internal tooth, reverse and third clutch

12шт.

14

A17921

DISC

- external tooth, reverse and third clutch

12шт.

15

N14745

PISTON

ASSEMBLY - forward side, Clark trans. no. 13.1HR28421-18 only, reverse and third clutch, Includes: Ref. 16

1шт.

D80323 kit includes N13958 forward side piston, D80424 drum and shaft, (2) 49478 rings, and (7) D80421 Belleville springs.

1шт.

16

N14746

SEAL

- lip, Teflon, outer, piston, if used, reverse and third clutch

1шт.

17

N13958

KIT

PISTON ASSEMBLY - forward side, all Clark transmissions except no. 13.1HR28421-18, reverse and third clutch, Includes: Ref. 18

1шт.

18

N14746

SEAL

- lip, Teflon, outer, piston, if used, reverse and third clutch

1шт.

19

A17908

RING

SEAL - cast iron, outer, piston, if used, reverse and third clutch

2шт.

20

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, reverse and third clutch

2шт.

21

D80323

SHAFT

DRUM AND SHAFT KIT - Clark trans. no. 13.1HR28421-18 only, reverse and third clutch

1шт.

D80323 kit includes N13958 forward side piston, D80424 drum and shaft, (2) 49478 rings, and (7) D80421 Belleville springs.

1шт.

22

D80424

KIT

DRUM AND SHAFT - Clark trans. no. 13.1HR28421-17 only, reverse and third clutch

1шт.

23

N8853

DRUM

AND SHAFT - Clark trans. nos. 13.1HR32423-1 or -2 only, reverse and third clutch

1шт.

24

N13957

PISTON ASSY.

PISTON ASSEMBLY - third side, with seal, reverse and third clutch, Includes: Ref. 25

1шт.

25

N13959

SEAL

- lip, Teflon, outer, piston, if used, reverse and third clutch

1шт.

26

A17921

DISC

- external tooth, reverse and third clutch

6шт.

27

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

- internal tooth, Clark trans. nos. 13.1HR28421-17 and -18, reverse and third clutch

6шт.

28

D77063

PLATE ASSY.

DISC - internal tooth, Clark trans. nos. 13.1HR32423-1 and -2, reverse and third clutch

6шт.

29

A17919

PLATE

- end, reverse and third clutch

1шт.

30

A17918

RING

SNAP RING - clutch plate, reverse and third clutch

1шт.
