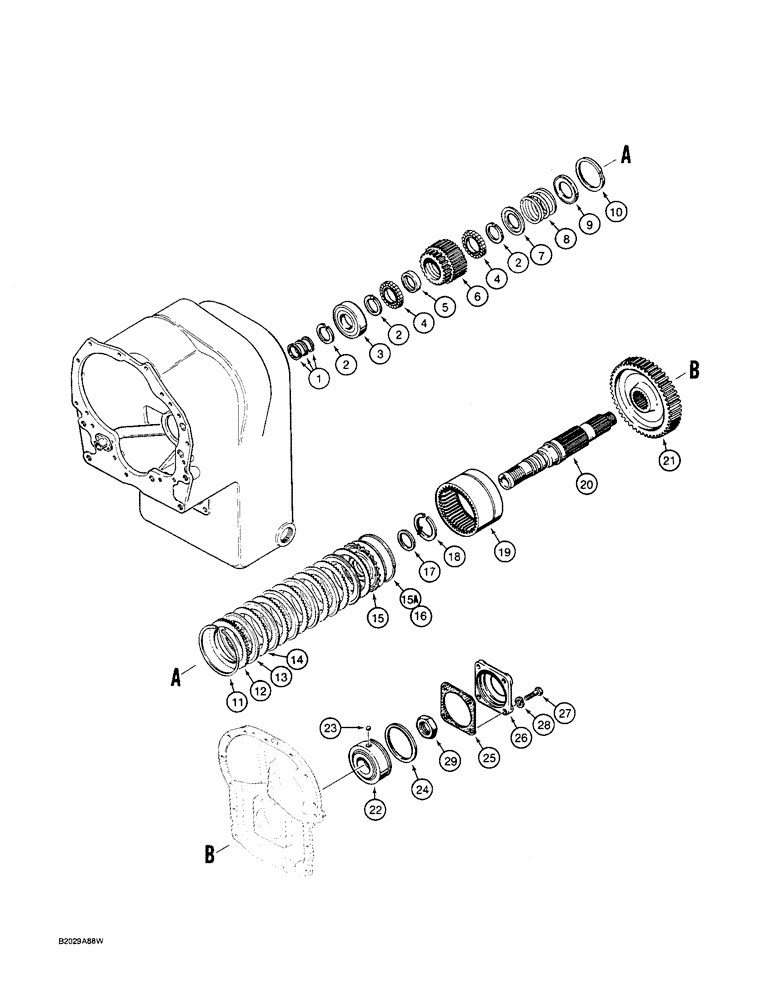

Запчасти Case W36 (6-260) - TRANSMISSION, 4TH CLUTCH SHAFT PARTS, CLARK TRANS. NOS. 13.1HR28421-17 AND -18 (06) - POWER TRAIN

1

D77016

RING

PISTON RING - shaft

3шт.

2

S89656

RING

SNAP RING - bearing

3шт.

3

D77018

BEARING, ROLLER, CYL,49.99mm ID x 90mm OD x 20mm W

BEARING - front

1шт.

4

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - gear

2шт.

5

D77041

SPACER

- bearing

1шт.

6

D77043

GEAR

- fourth

1шт.

7

L33488

RETAINER

CUP - spring, at gear

1шт.

8

L33487

VALVE SPRING

SPRING - return

1шт.

9

S89661

RETAINER

CUP - spring

1шт.

10

L33512

RING

- oil baffle

1шт.

11

A17918

RING

SNAP RING - backing plate

1шт.

12

A17919

PLATE

- backing

1шт.

13

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

- inner

6шт.

14

A17921

DISC

- outer

6шт.

15

N13957

PISTON ASSY.

PISTON ASSEMBLY - clutch, with seal, Includes: Ref. 15A

1шт.

15a

N13959

SEAL

- lip, Teflon, outer, piston, if used

1шт.

16

A17908

RING

- cast iron, outer, piston, if used

1шт.

17

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner

1шт.

18

S89681

RING

SNAP RING - drum

1шт.

19

D77025

HUB

DRUM AND HUB ASSEMBLY - clutch

1шт.

20

D77033

SHAFT

- idler

1шт.

21

D77004

GEAR

- idler

1шт.

22

S89673

BALL BEARING

BEARING - cover

1шт.

23

211-26

BALL,15/32" Dia

- meter 15/32" Dia

1шт.

24

S89674

RING

SNAP RING - bearing

1шт.

25

D77022

GASKET

- cover

1шт.

26

D77029

COVER

- bearing

1шт.

27

13-920

CAPSCREW,Hex, 9/16" - 12 x 1 1/4", Gr 5

BOLT - hex head, 9/16" - 12 NC x 1-1/4"

4шт.

28

92-9

BEARING WASHER,9/16"

4шт.

29

S89695

NUT

- special

1шт.
