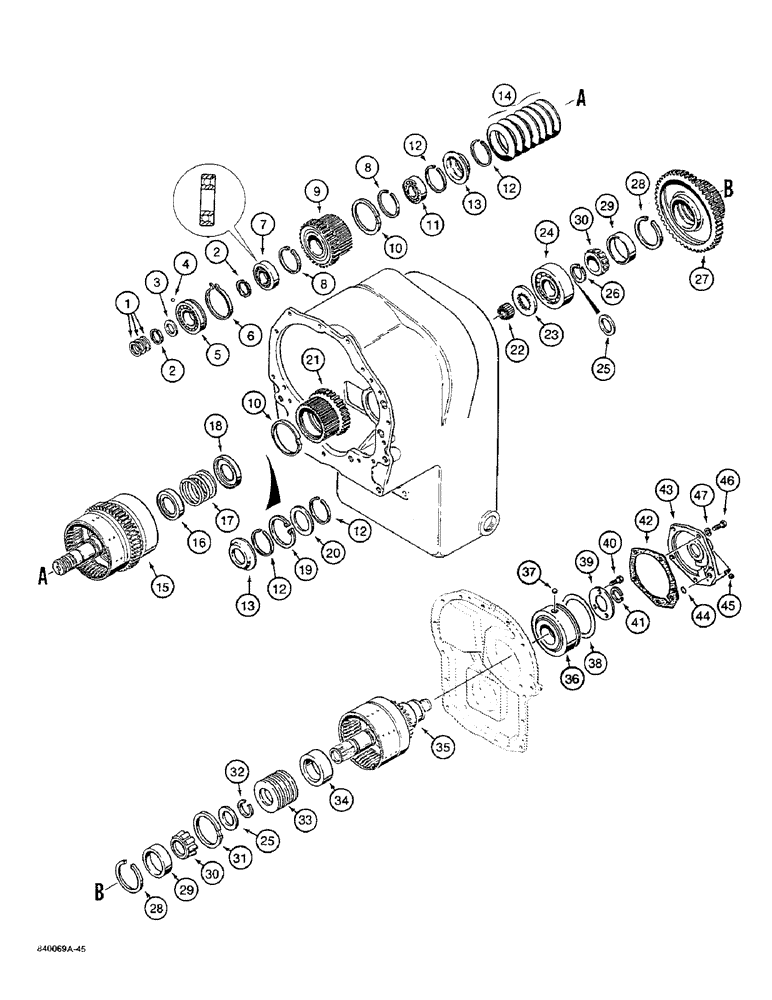

Запчасти Case W36 (6-256) - TRANSMISSION, FORWARD, 2ND, AND 1ST CLUTCH SHAFT PARTS, CLARK TRANS. NOS. 13.1HR32423-1 AND -2 (06) - POWER TRAIN

1

A17925

SPRING

PISTON RING - shaft

3шт.

2

L33518

RING

SNAP RING - bearing

2шт.

3

N8851

BACK PLATE

PLATE - end, front bearing

1шт.

4

211-203

BALL,1/8" Dia

- end plate

1шт.

5

N8852

ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - front

1шт.

6

S89652

RING

SNAP RING - front bearing

1шт.

7

D77046

BALL BEARING

BEARING - clutch driven gear, outer

1шт.

8

D77019

RING

SNAP RING - bearing

2шт.

9

N13339

GEAR

- driven

1шт.

10

L33512

RING

- oil baffle

2шт.

11

S89657

BEARING

- clutch driven gear

1шт.

12

E114328

RING, SNAP

SNAP RING - spring retaining

4шт.

13

N6812

RETAINER

- spring

2шт.

14

D80421

WASHER

BELLEVILLE SPRING - piston return

7шт.

15

REF

INSTRUCTION

CLUTCH - forward and second, see parts list Figure 6-264

1шт.

16

S89661

RETAINER

CUP - spring, at clutch

1шт.

17

L33487

VALVE SPRING

SPRING - return

1шт.

18

L33488

RETAINER

- spring

1шт.

19

D23649

SNAP RING,2.625", Int, #262

Ring Snap, , second gear 2.625", Int, #262

1шт.

20

N8854

SPACER

RING - spacer

1шт.

21

N8415

GEAR

second

1шт.

22

S89660

NEEDLE BEARING

BEARING - pilot

1шт.

23

D77036

PLATE

- end

1шт.

24

D77037

BEARING, ROLLER, CYL

BEARING - second gear

1шт.

25

N8859

RING

RETAINER - bearing

2шт.

26

D77065

RING

SNAP RING - bearing

1шт.

27

N8860

GEAR

- first

1шт.

D77038

TAPERED BEARING,49.99mm ID x 85.04mm OD x 49.5mm W

BEARING ASSEMBLY - first gear, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

SNAP RING - bearing

2шт.

29

NSS

NOT SOLD SEPARAT

CUP - bearing

2шт.

30

NSS

NOT SOLD SEPARAT

CONE - bearing

2шт.

31

L33512

RING

- oil baffle

1шт.

32

D77040

RING

SNAP RING - spring retainer

1шт.

33

N8858

WASHER

BELLEVILLE SPRING - return

5шт.

34

N8857

SPACER

- Belleville spring

1шт.

35

REF

INSTRUCTION

CLUTCH - low, parts list Figure 6-264

1шт.

36

N8861

BEARING

- first gear

1шт.

37

211-213

BALL,15/32" Dia

- bearing lock

1шт.

38

N8865

RING

SPACER - bearing

1шт.

39

N8862

PLATE

- bearing retainer

1шт.

40

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

41

N8864

RING

PISTON RING - clutch shaft

1шт.

42

S89671

GASKET,0.43mm Thk

- rear bearing cover

1шт.

43

N8863

CAP

COVER - bearing

1шт.

44

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- cover

1шт.

45

221-849

PLUG,Hex Soc, 1/8"-27

- square socket head, 1/8" NPT

1шт.

46

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

47

92-6

LOCK WASHER,3/8"

5шт.
