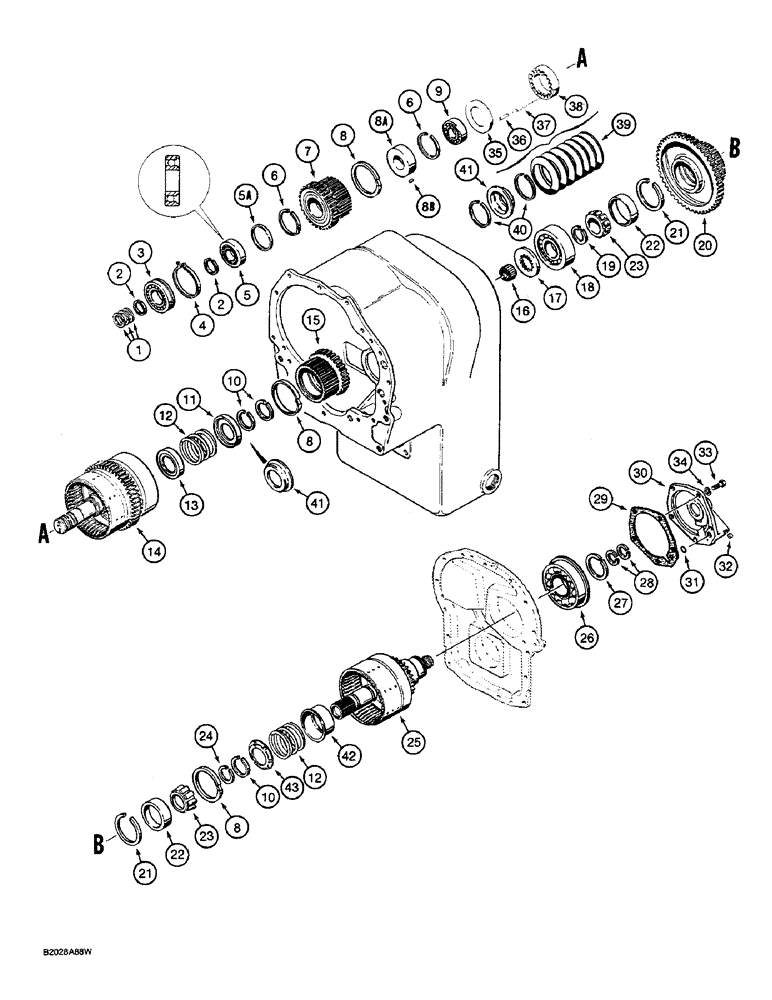

Запчасти Case W36 (6-252) - TRANSMISSION, FORWARD, 2ND AND 1ST CLUTCH SHAFT PARTS, CLARK TRANS. NOS. 13.1HR28421-17 AND -18 (06) - POWER TRAIN

1

A17925

SPRING

PISTON RING - shaft

3шт.

2

L33518

RING

SNAP RING - bearing

2шт.

3

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - front

1шт.

4

S89652

RING

SNAP RING - bearing

1шт.

5

D77046

BALL BEARING

BEARING - shield out

1шт.

5a

D78309

SPACER

if used

1шт.

6

D77019

RING

SNAP RING - bearing

2шт.

7

D76978

GEAR

- driven, Clark trans. no. 13.1HR28421-17

1шт.

7

D80419

GEAR

- driven, Clark trans. no. 13.1HR28421-18

1шт.

8

L33512

RING

- oil baffle

3шт.

8a

D78307

GEAR

CUP - bearing, Clark trans. no. 13.1HR28421-17

1шт.

8b

D78308

AXLE PIN

DOWEL PIN - Clark trans. no. 13.1HR28421-17

1шт.

9

S89657

BEARING

- driven gear

1шт.

10

E114328

RING, SNAP

SNAP RING - spring retaining

2-3шт.

11

L33488

RETAINER

CUP - spring

1шт.

12

L33487

VALVE SPRING

SPRING - return

1-2шт.

13

S89661

RETAINER

CUP - spring, at clutch

1шт.

14

REF

INSTRUCTION

CLUTCH - forward and second, parts list Figure 6-264

1шт.

15

N8415

GEAR

- second

1шт.

16

S89660

NEEDLE BEARING

BEARING - pilot

1шт.

17

D77036

PLATE

- end

1шт.

18

D77037

BEARING, ROLLER, CYL

BEARING - second gear

1шт.

19

D77065

RING

SNAP RING - bearing

1шт.

20

N8416

GEAR

- first

1шт.

D77038

TAPERED BEARING,49.99mm ID x 85.04mm OD x 49.5mm W

BEARING ASSEMBLY - low speed gear, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SNAP RING - bearing

2шт.

22

NSS

NOT SOLD SEPARAT

CUP - bearing

2шт.

23

NSS

NOT SOLD SEPARAT

CONE - bearing

2шт.

24

D77040

RING

SNAP RING - bearing

1шт.

25

REF

INSTRUCTION

CLUTCH - low, parts list Fig. 6-264

1шт.

26

S89667

BEARING, ROLLER, CYL

BEARING - rear cover

1шт.

27

S89668

RING

SNAP RING - bearing

1шт.

28

S89670

RING

PISTON RING - shaft

2шт.

29

S89671

GASKET,0.43mm Thk

- cap

1шт.

30

S89672

COVER

- bearing

1шт.

31

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- cap

1шт.

32

221-849

PLUG,Hex Soc, 1/8"-27

- square socket head, 1/8" NPT

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

34

92-6

LOCK WASHER,3/8"

5шт.

35

D78310

RETAINER

- spring, Clark trans. no. 13.1HR28421-17

1шт.

36

D78312

COIL SPRING

SPRING - inner, Clark trans. no. 13.1HR28421-17

18шт.

37

D78311

COIL SPRING

SPRING - outer, Clark trans. no. 13.1HR28421-17

18шт.

38

D78313

RUBBER SEAL

RETAINER - spring, Clark trans. no. 13.1HR28421-17

1шт.

39

D80421

WASHER

BELLEVILLE SPRING - Clark trans. no. 13.1HR28421-18

7шт.

40

E114328

RING, SNAP

SNAP RING - Clark trans. no. 13.1HR28421-18

2шт.

41

N6812

RETAINER

- spring, if used

2шт.

42

N13304

RETAINER

- spring, at clutch, cup type, also order Ref. 43

1шт.

43

N13305

RETAINER

- spring and snap ring, also order Ref. 42

1шт.
