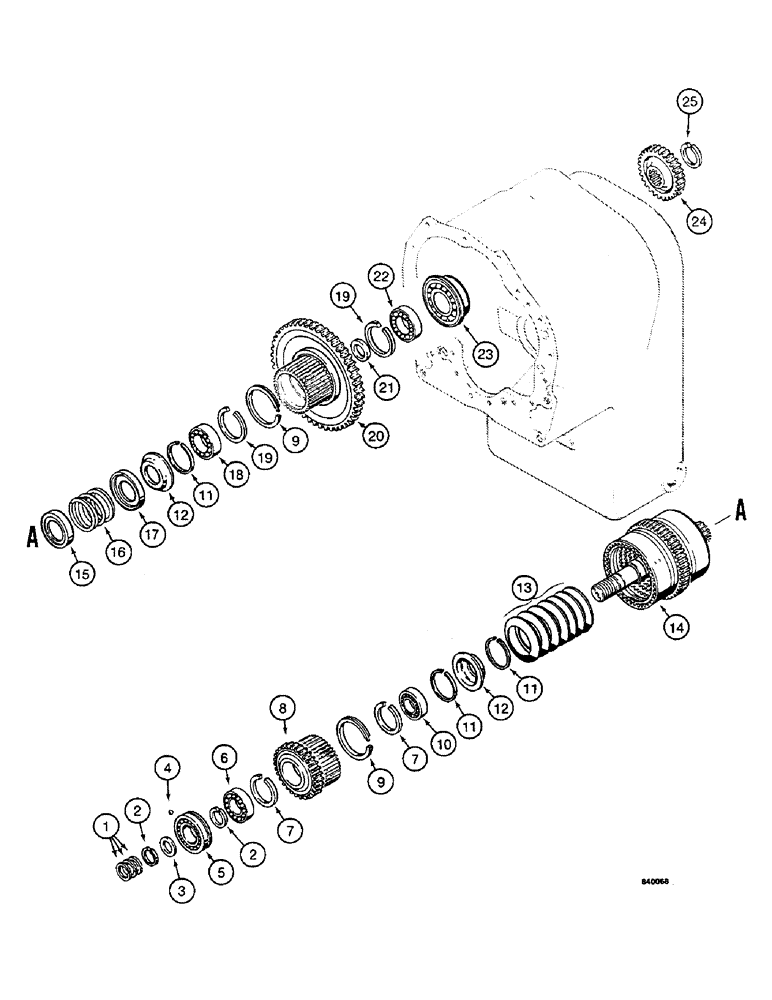

Запчасти Case W36 (6-250) - TRANSMISSION, REVERSE AND 3RD CLUTCH SHAFT PARTS, CLARK TRANS. NOS. 13.1HR32423-1 AND -2 (06) - POWER TRAIN

1

A17925

SPRING

PISTON RING - clutch shaft

3шт.

2

L33518

RING

SNAP RING - front bearing

2шт.

3

N8851

BACK PLATE

PLATE - end, front bearing

1шт.

4

211-203

BALL,1/8" Dia

- end plate

1шт.

5

N8852

ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - front

1шт.

6

D77046

BALL BEARING

BEARING - clutch drive gear

1шт.

7

D77019

RING

SNAP RING - clutch bearing

2шт.

8

N13339

GEAR

- driven

1шт.

9

L33512

RING

- oil baffle

2шт.

10

S89657

BEARING

- driven gear

1шт.

11

E114328

RING, SNAP

SNAP RING - spring retainer

3шт.

12

N6812

RETAINER

- spring

2шт.

13

D80421

WASHER

BELEVILLE SPRING - piston return

7шт.

14

REF

INSTRUCTION

CLUTCH - see parts list Fig. 6-264

1шт.

15

S89661

RETAINER

CUP - spring, at clutch

1шт.

16

L33487

VALVE SPRING

SPRING - piston return

1шт.

17

L33488

RETAINER

CUP - spring

1шт.

18

L33515

BALL BEARING

BEARING - third gear

1шт.

19

L33516

RING

SNAP RING - bearing

2шт.

20

D77026

GEAR WHEEL

GEAR - third

1шт.

21

S89649

SPACER

- third gear

1шт.

22

D63366

BALL BEARING,44.99mm ID x 75mm OD x 16mm W

BEARING - third gear

1шт.

23

N9801

ROLLER BEARING,45 mm ID x 100 mm OD x 25 mm

BEARING - rear

1шт.

24

N8840

PINION

GEAR - drive, low clutch

1шт.

25

S89666

RETAINER

SNAP RING - gear

1шт.
