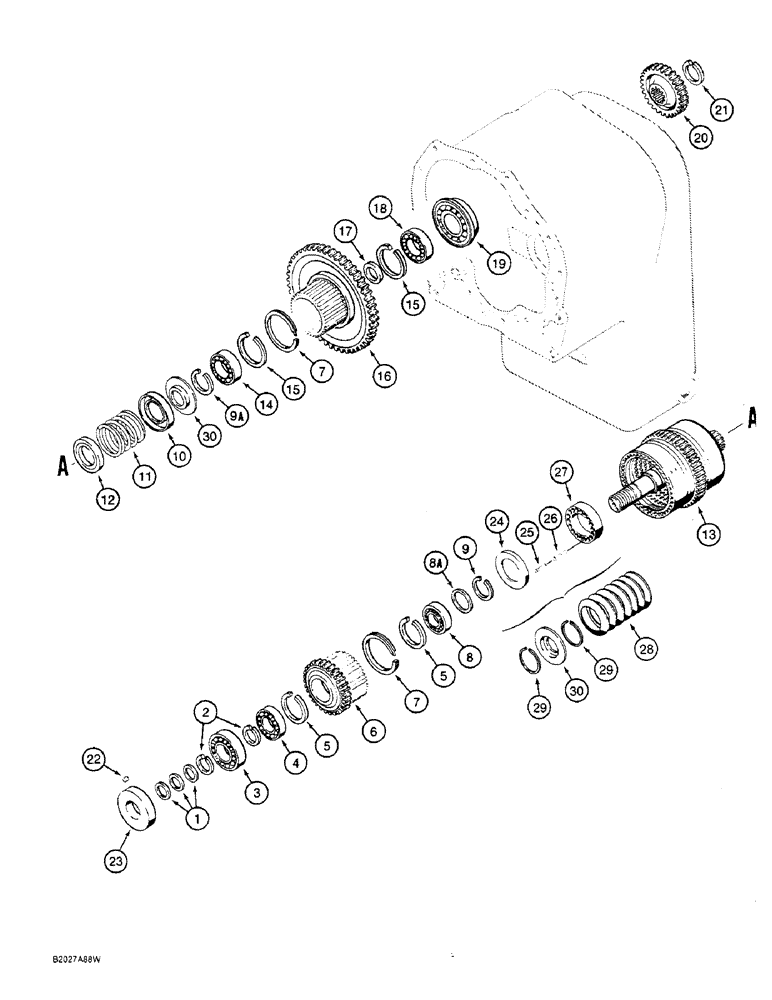

Запчасти Case W36 (6-248) - TRANSMISSION, REVERSE AND 3RD CLUTCH SHAFT PARTS, CLARK TRANS. NOS. 13.1HR28421-17 AND -18 (06) - POWER TRAIN

1

A17925

SPRING

PISTON RING - clutch shaft

3шт.

2

L33518

RING

SNAP RING - front bearing

2шт.

3

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

BEARING - front

1шт.

4

D77046

BALL BEARING

BEARING - clutch drive gear

1шт.

5

D77019

RING

SNAP RING - clutch bearing

2шт.

6

D76978

GEAR

- driven, Clark trans. no. 13.1HR28421-18

1шт.

6

D80419

GEAR

- driven, Clark trans. no. 13.1HR28421-17

1шт.

7

L33512

RING

- oil baffle

2шт.

8

S89657

BEARING

- driven gear

1шт.

8a

D78309

SPACER

- Clark trans. no. 13.1HR28421-18

1шт.

9

E114328

RING, SNAP

SNAP RING - Clark trans. no. 13.1HR28421-18

1шт.

9a

E114328

RING, SNAP

RING - retaining, bearing

1шт.

10

L33488

RETAINER

CUP - spring

1шт.

11

L33487

VALVE SPRING

SPRING - piston return

1шт.

12

S89661

RETAINER

CUP - spring, at clutch

1шт.

13

REF

INSTRUCTION

CLUTCH - see parts list Fig. 6-264

1шт.

14

L33415

BOLT

BEARING - third gear

1шт.

15

L33516

RING

SNAP RING - bearing

2шт.

16

D77026

GEAR WHEEL

GEAR - third

1шт.

17

S89649

SPACER

- third gear

1шт.

18

D63366

BALL BEARING,44.99mm ID x 75mm OD x 16mm W

BEARING - third gear

1шт.

19

D48834

BEARING ASSY,1.7717" ID x 3.937" OD x 0.9843"

BEARING - rear

1шт.

20

N8417

GEAR

- drive, low

1шт.

21

S89666

RETAINER

SNAP RING - gear

1шт.

22

D78308

AXLE PIN

DOWEL PIN - cup, Clark trans. no. 13.1HR28421-18

1шт.

23

D78307

GEAR

CUP - bearing, Clark trans. no. 13.1HR28421-18

1шт.

Ref. 23 - No Longer available, The D80419 had material added to take up the space this Cup previously used.

1шт.

24

D78310

RETAINER

- spring, Clark trans. no. 13.1HR28421-18

1шт.

25

D78312

COIL SPRING

SPRING - inner, Clark trans. no. 13.1HR28421-18

18шт.

26

D78311

COIL SPRING

SPRING - outer, Clark trans. no. 13.1HR28421-18

18шт.

27

D78313

RUBBER SEAL

RETAINER - spring, Clark trans. no. 13.1HR28421-18

1шт.

28

D80421

WASHER

BELLEVILLE SPRING - Clark trans. no. 13.1HR28421-17

7шт.

29

E114328

RING, SNAP

SNAP RING - Clark trans. no. 13.1HR28421-17

2шт.

30

N6812

RETAINER

- spring, Clark trans. no. 13.1HR28421-17

1шт.
