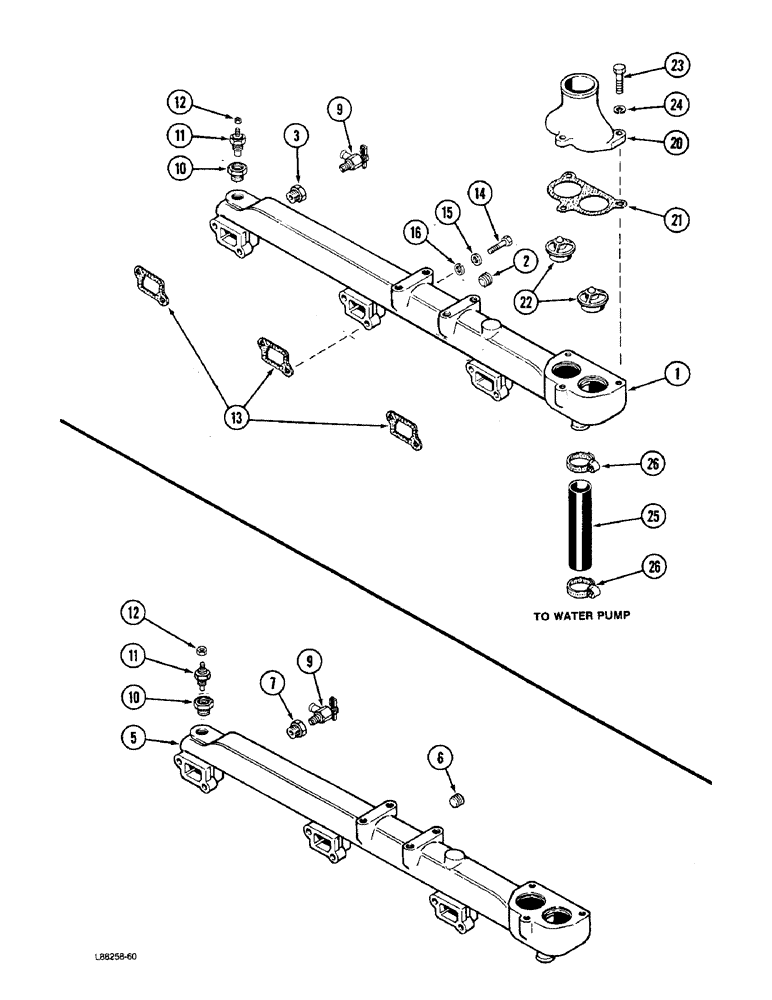

Запчасти Case W36 (2-10) - WATER MANIFOLD AND THERMOSTAT, 504BDTI ENGINE (02) - ENGINE

A153152

MANIFOLD

ASSEMBLY - with 1/2 inch tapped side holes (Engine serial no. 10155549 and after), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

- socket head, 1/2 inch PT

2шт.

3

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

221-1843

PLUG

- socket head, 3/8 inch PT (Used for shipping only)

1шт.

A44088

MANIFOLD

ASSEMBLY - with 3/4 inch tapped side holes (Prior to engine serial no. 10155549) (Order A153152), Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

6

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - socket head, 3/4 inch PT

1шт.

7

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

221-1843

PLUG

- socket head, 3/8 inch PT (Used for shipping only)

1шт.

9

A16764

VALVE

- water shut-off

1шт.

10

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

11

L56217

UNIT

- sending, engine temperature

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- unit terminal, no. 10 NF hex

1шт.

13

A166147

GASKET

- water manifold (Replaces A58637)

3шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8 x 13/16 x 1/16 inch

6шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

20

A58638

HOUSING

- thermostat

1шт.

21

A166148

GASKET

- thermostat housing (Replaces A58639)

1шт.

22

A57641

THERMOSTAT

- 180 degree F

2шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass, 1-1/4 x 1-5/8 x 5-5/16 inch

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.
