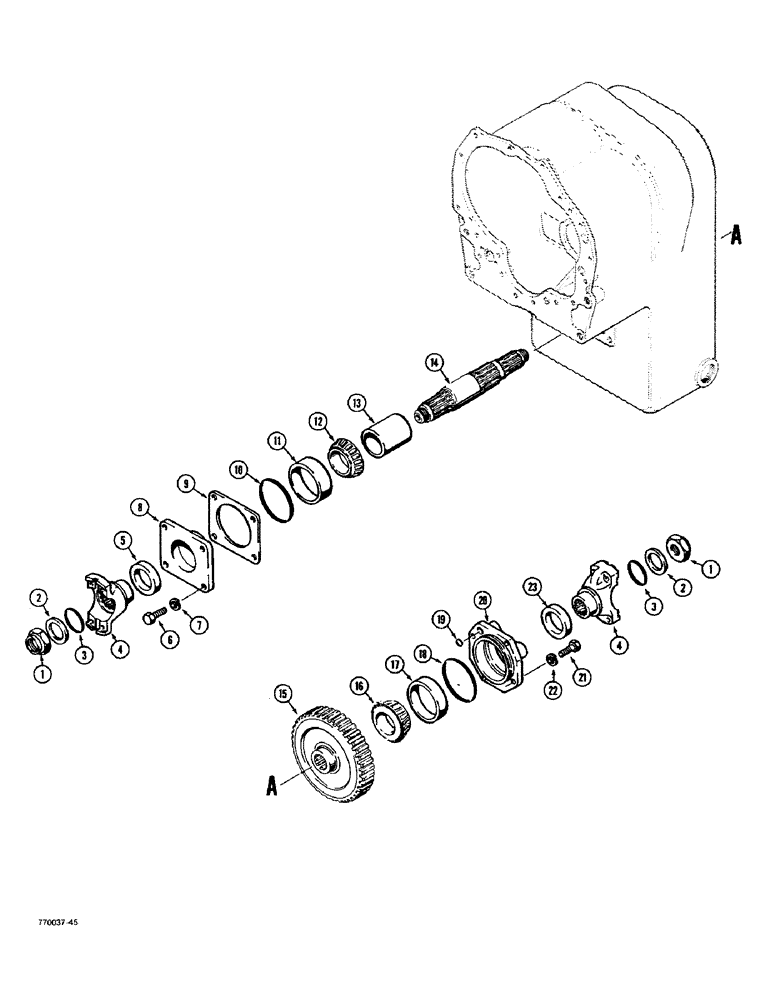

Запчасти Case W36 (6-244) - TRANSMISSION, OUTPUT SHAFT - FRONT AND REAR, CLARK TRANS. NOS.13.1HR28421-17 AND -18 (06) - POWER TRAIN

1

131-487

LOCK NUT,1 1/4"-18

NUT - hex, self-locking, 1-1/4" - 12 NF

2шт.

2

A55828

WASHER

- special

2шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- yoke

2шт.

4

D77035

FLANGE

YOKE - output

2шт.

5

D77023

SEAL

- yoke

1шт.

6

13-920

CAPSCREW,Hex, 9/16" - 12 x 1 1/4", Gr 5

BOLT - hex head, 9/16" - 12 NC x 1-1/4"

4шт.

7

92-9

BEARING WASHER,9/16"

4шт.

8

S89700

CAP

SUPPORT - bearing

1шт.

9

S89702

SHIM,.004" Thk

(0.10 mm) .004" Thk

1шт.

9

S89703

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

9

S89704

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

9

S89705

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- bearing seal

1шт.

11

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

1шт.

12

D77066

TAPERED BEARING

CONE - bearing

1шт.

13

D77027

SPACER

- shaft

1шт.

14

D77028

SHAFT

- output

1шт.

15

D77045

GEAR WHEEL

GEAR - output shaft

1шт.

16

D76994

CONE,47.63mm ID x 29.32mm W

- bearing

1шт.

17

H755140

CUP

- bearing

1шт.

18

S92346

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- bearing seal

1шт.

19

S89712

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- bearing cap, small

1шт.

20

D77039

COVER

SUPPORT - bearing

1шт.

21

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 9/16" - 12 NC x 1-3/4"

4шт.

22

92-9

BEARING WASHER,9/16"

4шт.

23

A55817

OIL SEAL,60.33mm ID x 79.55mm OD x 11.11mm Thk

- yoke

1шт.
