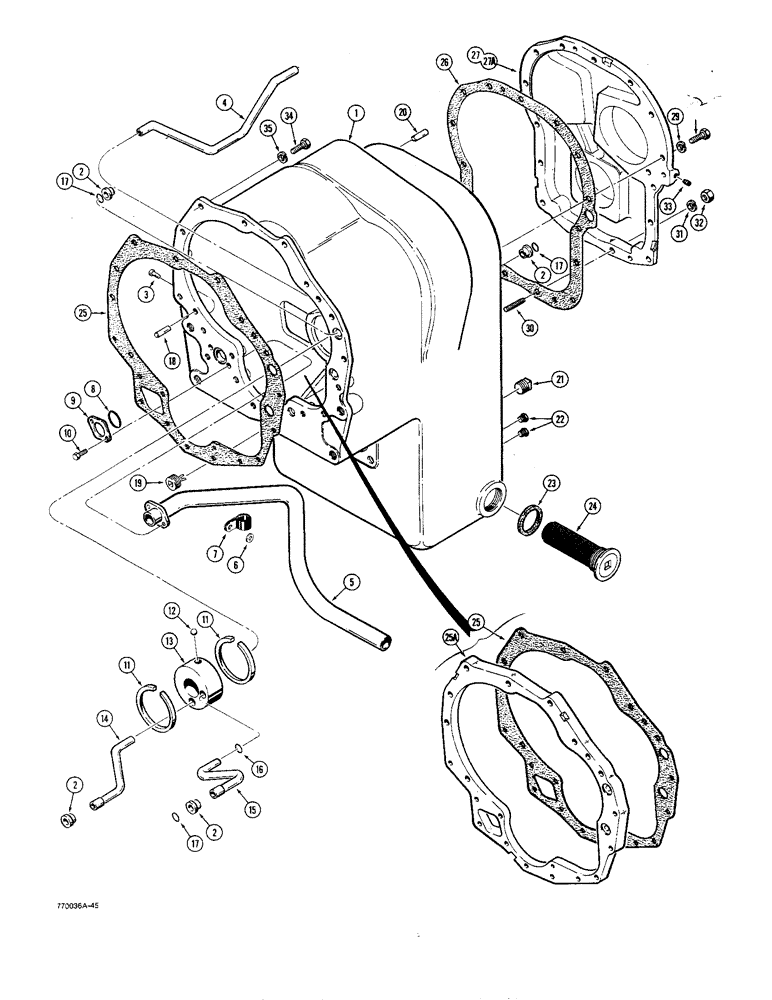

Запчасти Case W36 (6-242) - TRANSMISSION, TRANSMISSION CASE (06) - POWER TRAIN

D77030

HOUSING

CASE ASSEMBLY - transmission, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - transmission

1шт.

2

A55734

SLEEVE

- tube

4шт.

3

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- tube clamp

1шт.

4

S89618

TUBE

- low speed

1шт.

5

BHBD77003

TUBE

- suction

1шт.

6

195-18

WASHER,1/4"

- flat, 1/4"

1шт.

7

D39138

CLAMP

- tube

1шт.

8

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- seal

1шт.

9

L33481

WASHER

PLATE - retainer

1шт.

10

27288R1

BOLT,Hex, 5/16" - 24 x 1", Gr 8

- hex head, 5/16" - 24 NF x 1"

2шт.

11

D47486

SNAP RING

RETAINING RING - oil distributor

2шт.

12

211-357

BALL,1/4" Dia

- meter 1/4" Dia

1шт.

13

E104171

VALVE

OIL DISTRIBUTOR - transmission

1шт.

14

D77032

TUBE,0.375" OD

- lubrication, fourth clutch

1шт.

15

D77031

TUBE

- fourth speed

1шт.

16

355967R1

O-RING,0.364" ID x 0.003" Width

- tube

1шт.

17

16202

O-RING,40544" ID x 13" OD x 1"

- tube sleeve

5шт.

18

D76981

PIN

DOWEL PIN - transmission

2шт.

19

221-1016

DRAIN PLUG,Sq Hd, 1"-11 1/2 NPTF

PLUG - square socket, 1" NPT, if used

1шт.

20

S89619

DOWEL

PIN - transmission

2шт.

21

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - square socket, 3/4" NPT

1шт.

22

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

2шт.

23

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

24

L33482

FILTER SCREEN

SCREEN - oil

1шт.

25

L33476

GASKET

, Serial Range: --converter

2шт.

25a

D76980

SPACER

- case

1шт.

26

S89620

GASKET

- rear cover

1шт.

27

S89621

COVER

- rear, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

27a

N8844

COVER

- rear, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

28

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

13шт.

29

92-7

LOCK WASHER,7/16"

13шт.

30

D77015

STUD

- 7/16" - 20 NF and 14 NC

2шт.

31

92-7

LOCK WASHER,7/16"

2шт.

32

129-530

NUT,7/16"-20, G8

2шт.

33

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1-1/4" NPT

1шт.

34

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

10шт.

35

92-7

LOCK WASHER,7/16"

10шт.
