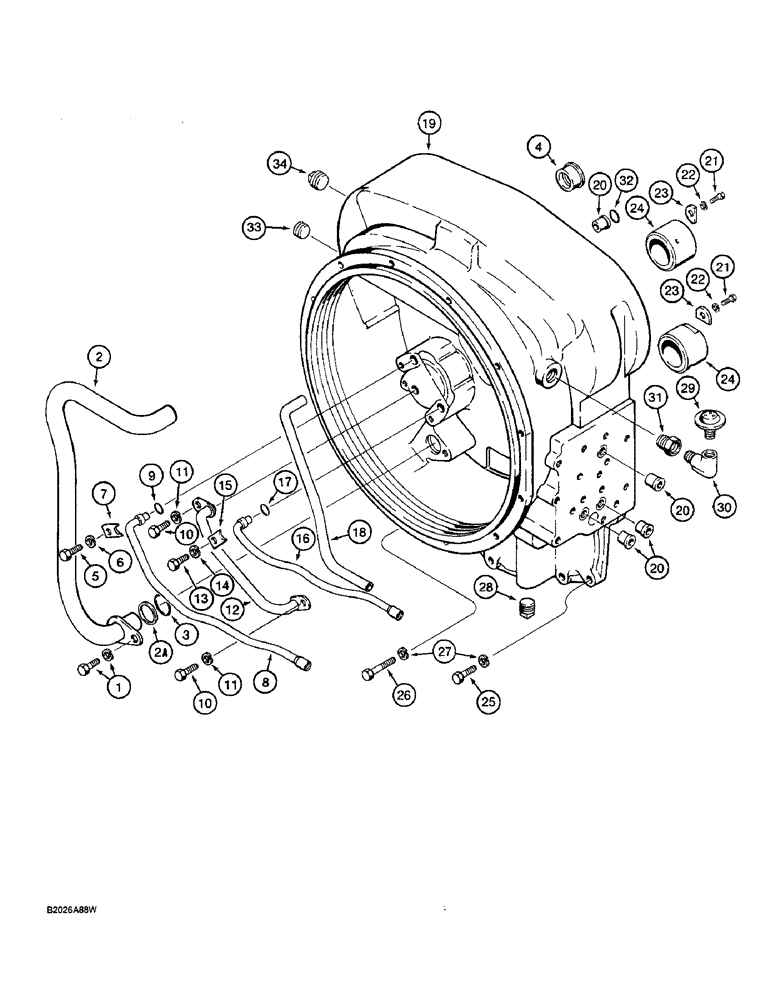

Запчасти Case W36 (6-240) - TRANSMISSION, TORQUE CONVERTER HOUSING (06) - POWER TRAIN

L33466

HOUSING

ASSEMBLY - torque converter, Includes: Ref. 1 - 24

1шт.

1

CAS11447

BOLT

SCREW AND LOCK WASHER - 3/8" - 16 NC x 3/4"

1шт.

2

L33467

TUBE,1.007" OD x 13.47, 2.19" L

- suction

1шт.

2a

D76977

OIL SEAL

BACKUP RING - o-ring

1шт.

3

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - tube

1шт.

4

L33468

BUSHING,25.5mm ID x 34.92mm OD x 11.91mm L

SLEEVE - tube

1шт.

5

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

L33473

CLIP

- tube retaining

1шт.

8

L33470

TUBE,0.375" OD x 13.25, 3-7/32" L

- reverse

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- tube

1шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

L33469

TUBE,0.5" OD x 7.125, 3" L

- lubrication

1шт.

13

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

L33473

CLIP

- tube retaining

1шт.

16

L33471

TUBE,0.375" OD

- third speed

1шт.

17

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- tube

1шт.

18

L33472

TUBE,7.687" L

- valve oil supply

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

20

A55734

SLEEVE

- tube

4шт.

21

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

REFERENCE

SPARE PART

- sleeve

2шт.

24

N6903

SLEEVE

- torque converter housing

2шт.

25

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

26

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

4шт.

27

92-7

LOCK WASHER,7/16"

8шт.

28

221-1016

DRAIN PLUG,Sq Hd, 1"-11 1/2 NPTF

PLUG - square head, 1" NPT, if used

1шт.

29

N7134

BREATHER

- torque converter housing

1шт.

30

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- 90 degrees, 3/8" NPT

1шт.

31

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- 3/8" NPT x 3/4" NPT

1шт.

32

16202

O-RING,40544" ID x 13" OD x 1"

- tube sleeve

2шт.

33

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT, if used

1шт.

34

221-846

PLUG,Hex Soc, 1"-11 1/2

- square head, 1" NPT, if used

1шт.
