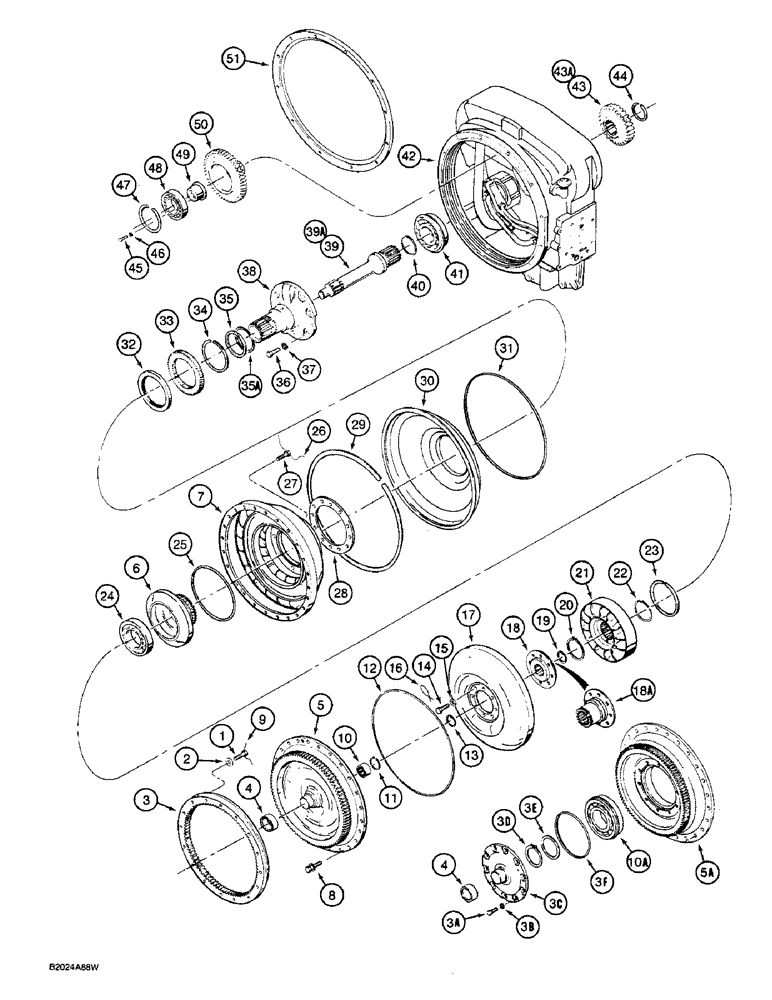

Запчасти Case W36 (6-236) - TRANSMISSION, TORQUE CONVERTER (06) - POWER TRAIN

L35552

GEAR

KIT - flywheel ring gear, with hardware, Includes: Ref. 1 - 3

1шт.

1

D58179

LOCK BOLT

BOLT - special, ring gear

16шт.

2

A17295

WASHER

- hardened

16шт.

3

D56914

RING GEAR

GEAR - flywheel

1шт.

3a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

Part of Converter Kit P/N L118568

1шт.

3b

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

Part of Converter Kit P/N L118568

1шт.

3c

N8850

CAP

- bearing, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

3d

D22999

SNAP RING,#237, Ext

Ring, Snap, , bearing, Clark trans. nos. 13.1HR32423-1 and -2 #237, Ext

1шт.

Part of Converter Kit P/N L118568

1шт.

3e

N8849

WASHER

- bearing, Clark, trans. nos. 13.1HR32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

3f

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

- bearing cap, Clark trans. nos. 13.1HF32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

L30055

COVER

KIT - impeller, repair, Clark trans. nos. 13.1HR28421-17 and -18, Includes: Ref. 4 and 5

1шт.

4

A18036

SLEEVE

- impeller, used with all transmissions

1шт.

Part of Converter Kit P/N L118568

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - impeller, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

5a

N8847

COVER

- impeller, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

6

D80318

HUB

- impeller

1шт.

7

D80319

IMPELLER

- torque converter

1шт.

8

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - special, includes washer

24шт.

9

391-709

ELECTRICAL WIRE

LOCKWIRE - 18 gauge x 84" long, if used

1шт.

10

F40824

NEEDLE BEARING,Needle, 25.4mm ID x 38.1mm OD x 19.05mm W

BEARING - impeller cover, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

10a

N8848

BALL BEARING,60 mm ID x 139.7 mm OD x 31 mm

BEARING - impeller cover, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

11

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , berg, Clark trans. nos. 13.1HR28421-17 and -18 1.50", Int, #150

1шт.

12

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- sealing

1шт.

Part of Converter Kit P/N L118568

1шт.

13

A17903

SNAP RING,#156, Ext

Ring, Snap, , bearing, Clark trans. nos. 13.1HR28421-17 and -18 #156, Ext

1шт.

14

A18033

SCREW

- special

8шт.

15

D23404

WASHER

- special

8шт.

16

391-701

ELECTRICAL WIRE

LOCKWIRE - 18 gauge x 6" long, if used

4шт.

17

N7995

TURBINE

- torque converter

1шт.

18

A18034

HUB

- turbine, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

18a

N8846

HUB

- turbine, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

19

A17903

SNAP RING,#156, Ext

Ring, Snap, , turbine, Clark trans. nos. 13.1HR28421-17 and -18 #156, Ext

1шт.

20

F35283

SNAP RING,#231, Ext

Ring, Snap, , stator #231, Ext

1шт.

Part of Converter Kit P/N L118568

1шт.

21

D86577

STATOR

- torque converter

1шт.

22

L30685

SPACER

- stator

1шт.

23

T38110

SNAP RING,5.00", Int, #500

Ring, Snap, , brg 5.00", Int, #500

1шт.

Part of Converter Kit P/N L118568

1шт.

24

N7277

BALL BEARING,59.98mm ID x 130mm OD x 30.87mm W

BEARING - impeller hub

1шт.

Part of Converter Kit P/N L118568

1шт.

25

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

- impeller hub

1шт.

Part of Converter Kit P/N L118568

1шт.

26

391-701

ELECTRICAL WIRE

LOCKWIRE - 18 gauge x 6" long, if used

4шт.

27

D80315

BOLT

- special, includes washer

12шт.

Part of Converter Kit P/N L118568

1шт.

28

D80316

RING

- spacer

1шт.

Part of Converter Kit P/N L118568

1шт.

29

L33461

RING

SNAP RING - oil baffle

1шт.

30

L33459

BAFFLE

- oil

1шт.

31

L33460

RING

SEAL RING - oil baffle

1шт.

Part of Converter Kit P/N L118568

1шт.

32

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

OIL SEAL - impeller hub

1шт.

Part of Converter Kit P/N L118568

1шт.

33

L33462

GEAR

- impeller hub

1шт.

34

A18009

RING

SNAP RING - impeller hub gear

1шт.

35

D80312

SEAL

RING - stator support

1шт.

Part of Converter Kit P/N L118568

1шт.

35a

D80313

SPRING

- expander

1шт.

Part of Converter Kit P/N L118568

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

37

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

38

D80314

BRACKET

SHAFT AND FLANGE - stator support

1шт.

39

L33452

SHAFT

- turbine, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

39a

N8845

SHAFT

- turbine, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

Part of Converter Kit P/N L118568

1шт.

40

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

SEAL RING - turbine shaft

1шт.

Part of Converter Kit P/N L118568

1шт.

41

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - turbine shaft

1шт.

Part of Converter Kit P/N L118568

1шт.

42

L33466

HOUSING

CONVERTER HOUSING - parts list Fig. 6-240

1шт.

43

N6810

GEAR

- turbine shaft, Clark trans. nos. 13.1HR28421-17 and -18

1шт.

43a

N13329

GEAR

- turbine shaft, Clark trans. nos. 13.1HR32423-1 and -2

1шт.

44

A27089

SNAP RING,2.36mm Thk, Ext

SNAP RING - turbine shaft

1шт.

45

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 1-1/4"

6шт.

46

92-7

LOCK WASHER,7/16"

6шт.

47

L33464

RING, SNAP

SNAP RING - drive gear

3шт.

48

D83158

BEARING

- drive gear

3шт.

49

L33463

BRACKET

SUPPORT - bearing

3шт.

50

L33465

GEAR WHEEL

DRIVE GEAR - torque converter

3шт.

51

N9083

RING

SPACER - housing, if used

1шт.

L118568

KIT

- converter, Includes: Ref. 3A, 3B, 3C, 3D, 3E, 3F, 4, 5A, 10A, 12, 18A, 20, 23, 24, 25, 27, 28, 31, 32, 35, 35A, 39A, 40 and 41

1шт.

Ref. 51 - Hdwe to mount this Spacer, (4) A140924 Stud, (4) 425-106 Nut, (12) 92-6 Lockwasher, & (8) 26-636 Bolt

1шт.
